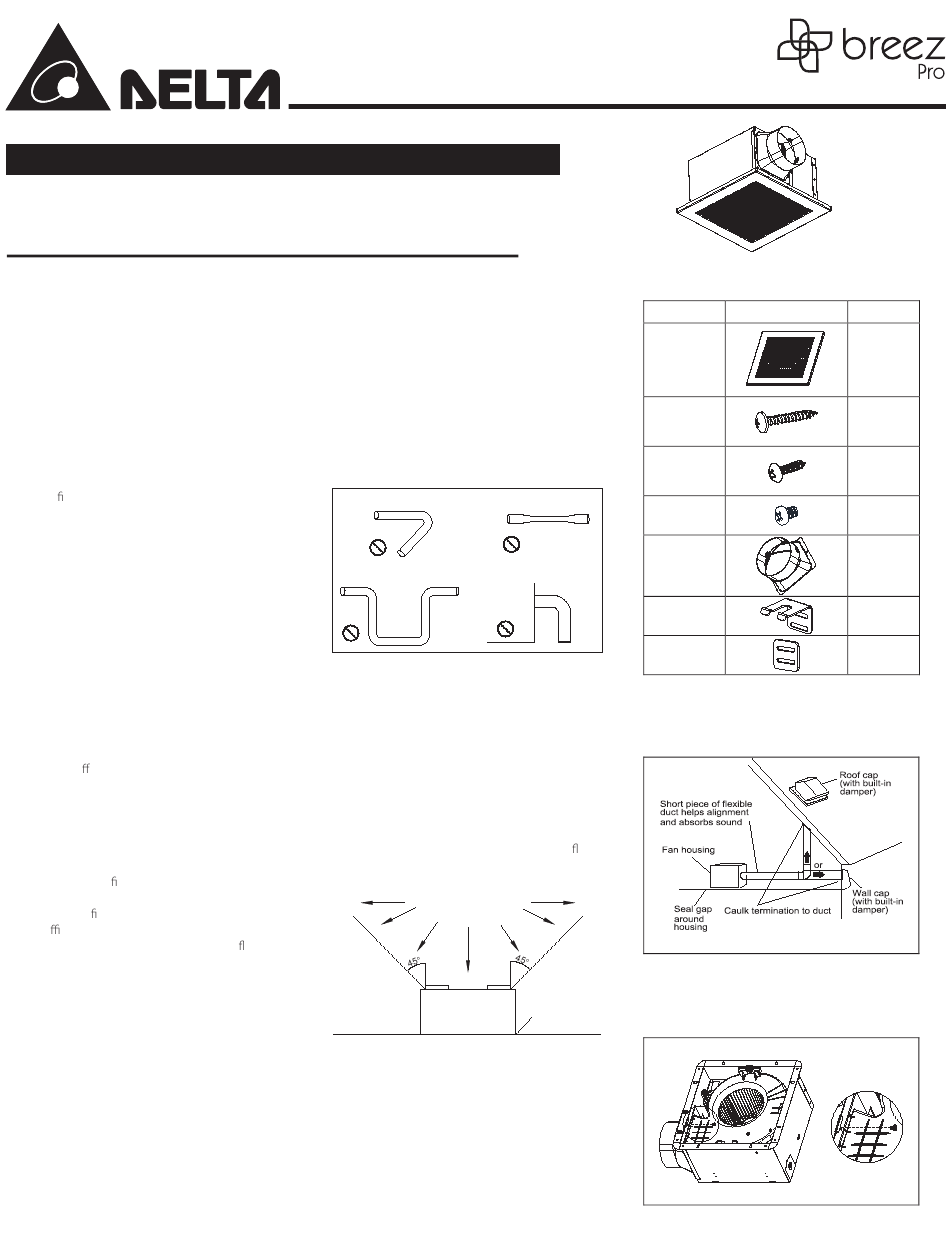

INSTALLATION AND OPERATING INSTRUCTIONS

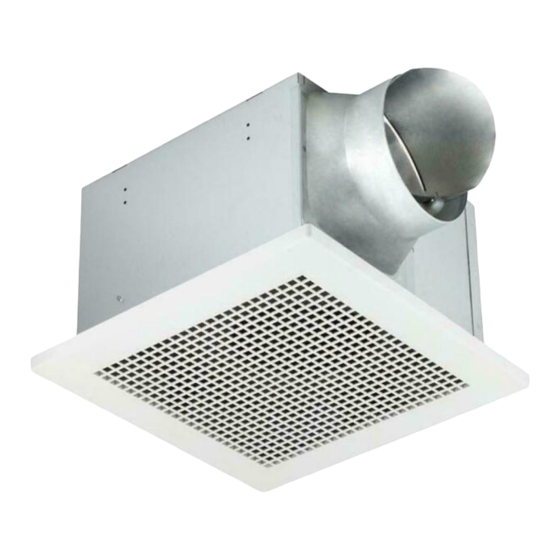

VENTILATION FAN
READ AND SAVE THESE INSTRUCTIONS

GENERAL SAFETY INFORMATION

1. Make sure that the electric service supply
voltage is AC 120V, 60Hz.
2. Follow all local electrical and safety codes, as well
as the National Electrical Code (NEC) and the
Occupational Safety and Health Act (OSH Act).
3. Always disconnect the power source before
working on or near the ventilating fan, motor
or junction box.
4. Protect the power cord from sharp edges, oil,
grease, hot surfaces, chemicals or other objects.
5. Do not kink the power cord.
6. Do not install the unit where ducts are
con gured as shown in Fig. A.
7. Provide suction parts with proper ventilation.
8. This unit is UL listed for use over a bathtub or
shower when installed in a GFCI-protected
branch circuit.
WARNING
TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by
the manufacturer. If you have questions,
contact the manufacturer.
2. Before servicing or cleaning unit, switch
power o at service panel and lock the service
disconnecting means to prevent power from
being switched on accidentally. When the
service disconnecting means cannot be
locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be
done by quali ed person(s) in accordance
with all applicable codes and standards,
including re-rated construction.
4. Su cient air is needed for proper combustion
and exhausting of gases through the ue
(chimney) of fuel burning equipment to
prevent back drafting. Follow the heating
equipment manufacturer's guideline and
safety standards such as those published by
the National Fire Protection Association
(NFPA), and the American Society for Heating
Refrigeration and Air Conditioning Engineers
(ASHRAE) and local code authorities.
5. When cutting or drilling into wall or ceiling, do
not damage electrical wiring and other
hidden utilities.
6. Ducted fans must always be vented to the
outdoors.
7. If this unit is to be installed over a tub or
shower, it must be marked as appropriate for
the application and be connected to a GFCI
(Ground Fault Circuit Interrupter) – protected
branch circuit.
8. Do not use this unit with any solid-state
control device. Solid-state controls may cause
harmonic distortion, which can cause a
motor humming noise. (Avertissement: ne
convient pas à des régulateurs de vitesse à
semi-conducteurs)
9. NEVER place a switch where it can be
reached from a tub or shower.
10. Not to be installed in a ceiling thermally
insulated to a value greater than R40. (This is
required for installation in Canada only).
Turning angle too large
Too many elbows
Fig. A
CAUTION
1. For General Ventilating Use Only. Do Not Use
To Exhaust Hazardous Or Explosive Materials
And Vapors.
2. Not for use in cooking areas. (Fig. B)
3. This product must properly connect to the
grounding conductor of the supply circuit.
4. To reduce the risk of injury to persons, install
the fan at least 8.2 feet (2.5m) above the oor.
Cooking area
Do not install above or
inside this area
Cooking
Equipment
Fig. B

SUPPLIED ACCESSORIES

Part name
Grille
Tapping
Screw
( 4x25)
Ø
Tapping
Screw
( 4x10)
Ø
Duct shrink
Screw
(M4x6)
Duct
connector
Elbow near the body
(6'')
Body
Suspension
bracket
Rubber
INSTALLATION
Proper insulation around the fan to minimize building
heat loss and gain .
Attach duct connector
Attach the duct connector from outside and
floor
secure by using one screw (M4x6). (Fig. C)
MODEL
Pro200
Page 1.
Appearance Quantity
1
6
8
1
1
4
4
Fig. C
