Installation Guide

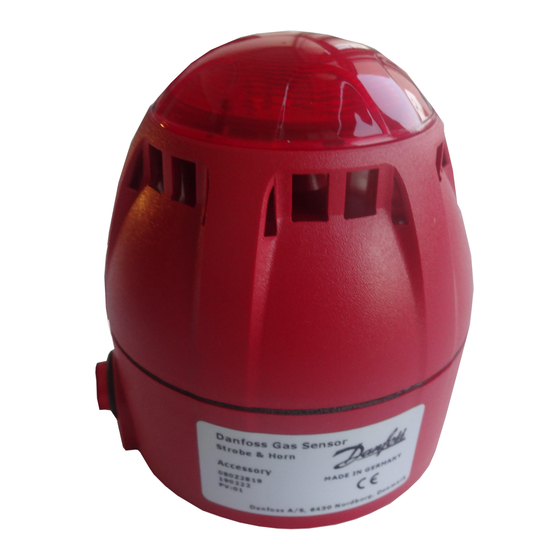

Danfoss Gas Sensor
Strobe and Horn
Alarm Sounder
Current consumption: 9 ~ 35 mA (Siren)/ 4 ~ 6 mA (Flash)
Operating volltage: 9 ~ 28V DC
IP rating: IP 65
Operating temp.: -20 – +70 °C / -4.0 °F – +158 °F
Sound output: 67-100 dB(A)/98 dB(A) at DIN-Tone/Potentiometer
Number of user-selectable tones: 39
Lens colour: Red
Material: Housing: ABS FR; lens: PC

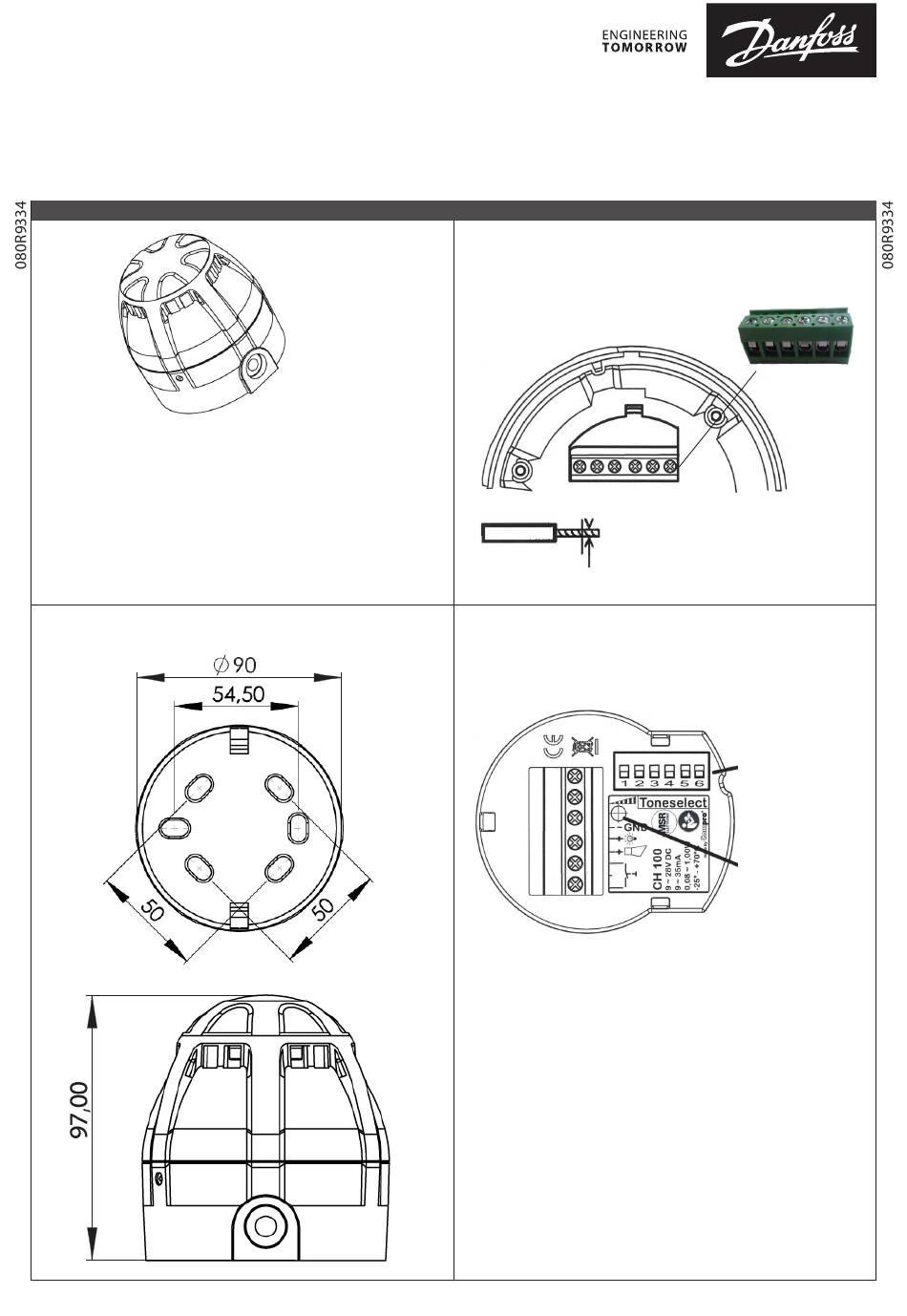

Dimensions and appearance
© Danfoss | DCS (vt) | 2019.06
ENGLISH
Code no. 080Z2819
Note:
Removeable screw terminals
Range:16 - 24 AWG
Metric: 0.25.... 1.50 mm
Note:
Max. 1 Strobe and Horn unit may
be connected to the DGS.
Note: A single 470 ohm resistor is supplied with the
product and must be used when the S&H is powered
from the DGS and the DGS is powered by AC power -
see page 3.
2
For tone select:
See table page 4
Volume control:
louder: turn clock-
wise
AN307529759541en-000101 | 1
