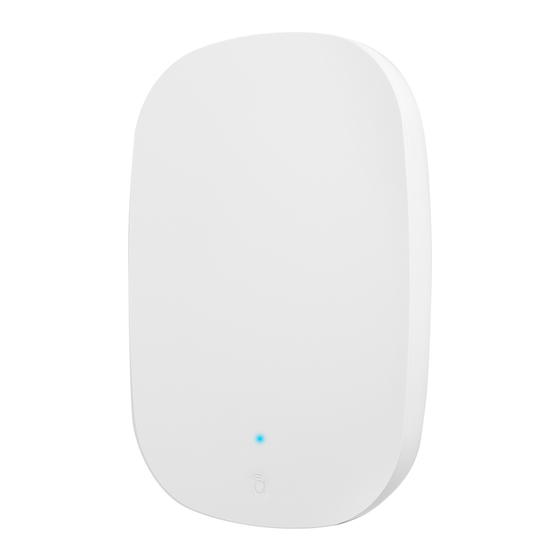

INDOOR WALL-MOUNT WAVE 2 WIRELESS ACCESS POINT
Quick Start Guide
AN-510-AP-IW-AC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AN-510-AP-IW-AC and is the answer not in the manual?

Questions and answers

Related Manuals for Araknis Networks AN-510-AP-IW-AC

Summary of Contents for Araknis Networks AN-510-AP-IW-AC

  • Page 1 INDOOR WALL-MOUNT WAVE 2 WIRELESS ACCESS POINT Quick Start Guide AN-510-AP-IW-AC...
  • Page 2 Araknis Networks Wireless Access Point Quick Start Guide Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 3: Industry Canada Statement

    Araknis Networks Wireless Access Point Quick Start Guide Industry Canada Statement This device complies with ISED’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 4: Industry Canada Warning

    This is a product with CE certification. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. This product is intended to be powered by either PoE/PoE+ or a 48V/1A power supply. This product uses PoE/PoE+ IN(48V/0.53A) for the AN-510-AP-IW-AC. Support: 866.838.5052...
  • Page 5 Araknis Networks Wireless Access Point Quick Start Guide CE Statement This equipment complies with EU radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body.

  • Page 6: Welcome To Araknis Networks

    Araknis Networks Wireless Access Point Quick Start Guide Welcome to Araknis Networks™ Thank you for choosing an Araknis™ WAVE 2 AC Wireless Access Point (WAP). With newly designed rounded housing, a convenient on-wall mounting system, convenient PoE power (in & out), and the latest WAVE 2 AC wireless technologies;...
  • Page 7 Araknis Networks Wireless Access Point Quick Start Guide Step 1: Unbox Wireless Access Point Cable Bay Door Mounting Bracket (WAP) Tile Ceiling Drywall Wood Surface Quick Start Guide Mounting Hardware Mounting Hardware Mounting Hardware © 2019 Araknis Networks®...

  • Page 8: Step 2: Installation And Removal

    Araknis Networks Wireless Access Point Quick Start Guide Step 2: Installation and Removal Installation Removal Mounting Wall Bracket 1. Secure mounting bracket to wall using the included pack-out. Pull the WAP from the bottom of the mounting bracket to 2. Angle the bottom of the WAP (ports facing down) to the remove.
  • Page 9 Araknis Networks Wireless Access Point Quick Start Guide Connect: Port Identification LAN 1 - PoE In- Connect to main Switch or Router. Power Input Supported PoE Out Distance Reset - Use a pin or paper clip to press and hold to PoE 802.3af...
  • Page 10 Araknis Networks Wireless Access Point Quick Start Guide Step 3: Connect AN-310-SW-F-8-POE Internet Router PoE Switch AN-ACC-INJ-30W DC 48V Input Power DATA (IN) AN-310-SW-F-8-POE Internet Router Switch PoE Injector DC Power Supply (not included) (not included) AN-310-SW-F-8-POE Internet Router Switch...
  • Page 11 Araknis Networks Wireless Access Point Quick Start Guide Step 4: Verify LED Status: • Blinking: WAP is not working correctly. Contact Araknis technical support. • Solid White: WAP is booting up. • Solid Blue: WAP is operating correctly. © 2019 Araknis Networks®...
  • Page 12 Araknis Networks Wireless Access Point Quick Start Guide Step 5: Log in to Web Interface Log in using the default credentials: Username araknis Password araknis NOTE: If you can’t connect to the WAP using this method, or need to configure the device before connecting it to the network, try these options for accessing your device: •...
  • Page 13 Araknis Networks Wireless Access Point Quick Start Guide Pro Tip: Save and Apply Changes After making changes to settings on a menu page, click the “Save” button on the menu to hold the new settings in the Apply Changes field.
  • Page 14 Araknis Networks Wireless Access Point Quick Start Guide Other Access Methods: DHCP IP Address The WAP is configured to DHCP by default so that the DHCP server can assign an IP address when the WAP is connected to the network (the DHCP server is usually the router). This address can be used for accessing the web interface.
  • Page 15 Araknis Networks Wireless Access Point Quick Start Guide Other Access Methods: Default IP Address If the WAP is not issued an IP address on the network, or needs to be accessed while not connected to a network, you can configure your computer's network connection to allow access using the default IP address, “192.168.20.253”.
  • Page 16 Araknis Networks Wireless Access Point Quick Start Guide Other Access Methods: Default IP Address Windows 7 screenshots shown for reference. In the left bar, left-click “Change Right-click the icon for the Left-click to highlight “Internet adapter settings”. wired network connection and Protocol Version 4 (TCP/IPv4), left-click "Properties".
  • Page 17 Araknis Networks Wireless Access Point Quick Start Guide Other Access Methods: Default IP Address Windows 7 screenshots shown for reference. In the “General” tab, left-click Left-click “OK” to close Internet Open a browser and navigate "Use the following IP address:"...
  • Page 18 Araknis Networks Wireless Access Point Quick Start Guide Other Access Methods: OvrC OvrC gives you remote device management, real-time notifications, and intuitive customer management, right from your computer or mobile device. Setup is plug-and-play, with no port forwarding or DDNS address required.
  • Page 19 Araknis Networks Wireless Access Point Quick Start Guide © 2019 Araknis Networks®...

  • Page 20: Contacting Technical Support
