Araknis Networks AN-510-AP-IW-AC Quick Start Manual page 10

Araknis Networks Wireless Access Point
Quick Start Guide

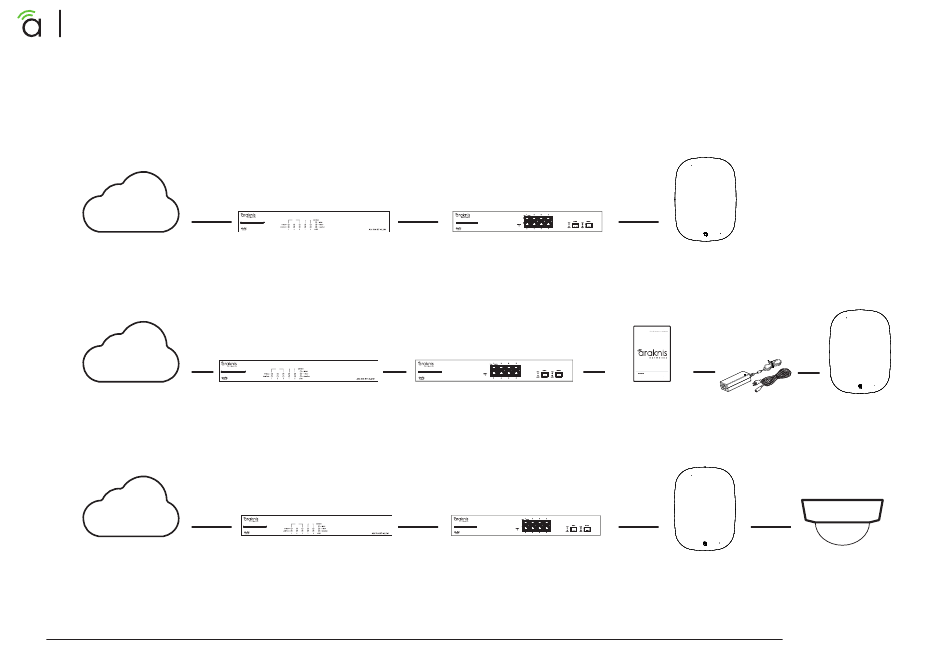

Step 3: Connect
Internet
Internet
Internet
10
LAN WAN
Router
LAN WAN
Router
LAN WAN
Router
AN-310-SW-F-8-POE
PoE Switch
DC 48V Input Power
AN-310-SW-F-8-POE
Switch PoE Injector
(not included)
AN-310-SW-F-8-POE
Switch
WAP
OR
AN-ACC-INJ-30W
DATA (IN)
DC Power
Supply
(not included)
WAP PoE Powered
IP Camera
Support: 866.838.5052
WAP
