Summary of Contents for thomann Millenium BS-2211B MKII Set
- Page 1 BS-2211B MKII Set speaker stand user manual...
- Page 2 Musikhaus Thomann e.K. Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 15.07.2013...
-
Page 3: Table Of Contents
Table of contents Table of contents General notes............................... 4 Safety notes..............................6 Features................................7 Operating............................... 8 Technical specifications........................12 Protecting the environment......................13 BS-2211B MKII Set... -
Page 4: General Notes
General notes General notes This user manual contains important information on the safe operation of the product. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this product. If you sell the product to another user, be sure that they also receive this manual. - Page 5 General notes Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. CAUTION! This combination of symbol and signal word indicates a possible dangerous situation that can result in minor injury if it is not avoided.
-
Page 6: Safety Notes
Safety notes Safety notes Intended use This speaker stand is used for stable fixing and height-adjustable installation of loudspeaker cabinets. Use the product only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. -
Page 7: Features

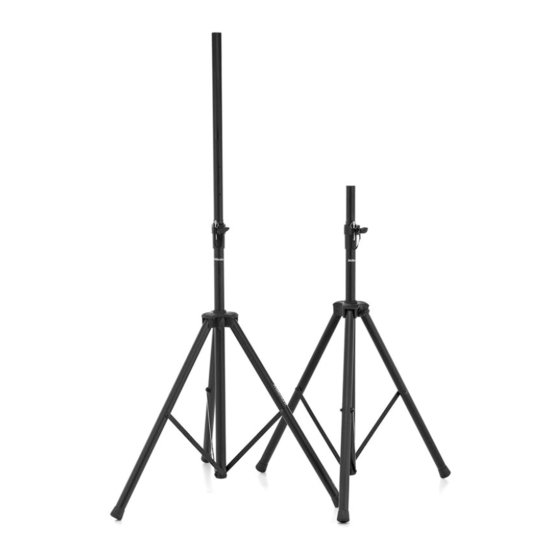

Features Features Special features: 2 pcs. set including carrying bag Elegant all metal construction Extendable up to 2 m Up to 30 kg centrically loadable 35 mm pipe diameter at the tripod flange Transport length when folded: 1.12 m BS-2211B MKII Set... -
Page 8: Operating
Operating Operating Unpack and check carefully there is no transportation damage before using the product. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 9 Operating CAUTION! Danger of tipping when transported under load If the stand is moved without having removed the installed device, the stand may tip over and cause injuries and property damage. Remove the installed device before transporting the stand. NOTICE! Possible staining The plasticiser contained in the rubber feet of this product may possibly react with the coating of your parquet, linoleum, laminate or PVC floor and after some...
- Page 10 Operating Positioning Carry out the steps described below for both tripods: Unfold the legs of the tripod until the cross braces are in a horizontal position. Fix this position with the safety bolt on the carriage to which the three feet are attached. Pull out the safety pin and loosen the safety bolt on the extension tube.
- Page 11 Operating Dismounting Remove the speaker. Pull out the safety pin and hold the extension tube while you loosen the safety bolt on the extension tube. Slide the extension tube all the way down and slide the safety pin through the appro‐ priate grid holes.
-
Page 12: Technical Specifications
Technical specifications Technical specifications Permissible centric loadability 2 × 30 kg Minimum lift height 2 × 1300 mm Maximum lift height 2 × 2000 mm Tripod flange 2 × 35 mm diameter Weight 2 × 2.16 kg Transport length when folded 2 ×... -
Page 13: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 14 Notes speaker stand...
- Page 16 Musikhaus Thomann e.K. · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de...
