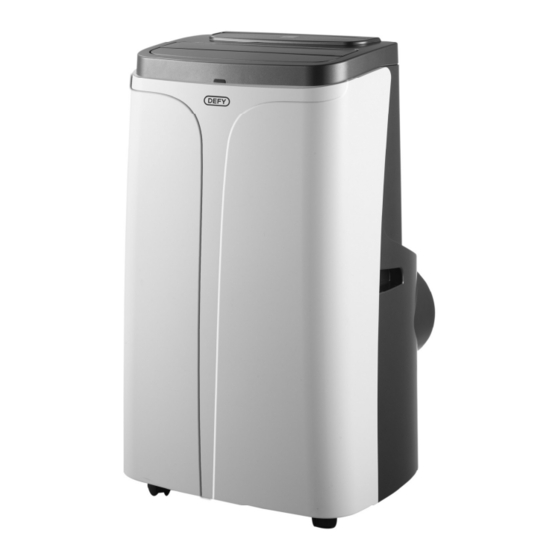

- Page 1 ACPHP 12K PORTABLE AIR CONDITIONER Page 1 Air Conditioner Remote control manual...
- Page 2 Read this manual before initial installation and operation of the appliance! Dear Customer, Your new Defy appliance was manufactured in a state of the art facility and has passed the strictest quality control procedures. Please read this manual carefully before using your appliance for the first time and then store it within easy reach for future reference.
-
Page 3: Table Of Contents
Contents 1. Your Air Conditioner 5. Control panel 2. Important Safety Information Remote control Warnings Water drainage 3. Parts list 6. Maintenance and cleaning 4. Placement 7. Trouble shooting Installation 8. Branches` 9. Warranty Page 3... -
Page 4: Your Air Conditioner
Your Air Conditioner ACPHP 09 K This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. -
Page 5: Important Safety Information
The appliance must only be used for its intended purpose: Room temperature regulation. The air conditioner is intended for domestic use only. Consult with your authorised DEFY service centre for all questions and problems relating to the appliance. Only authorised agents are to carry out repairs. - Page 6 In the event of a malfunction, disconnect the appliance from the power supply. Do not operate a damaged appliance. Consult with your nearest DEFY service centre should you have any concerns Never place objects on top of the appliance.
-
Page 7: Parts List
Parts list The manufacturer strives for continuous improvement. For this reason, the text and illustrations in this manual are subject to change without notice. Page 7... -
Page 8: Placement
Placement Place the appliance on a flat dry area, and keep it at least 50cm away from other objects. Warning: before using the mobile air conditioning, keep it upright for at least two hours. The air conditioning can be easily moved in the room. In the moving process, ensure that the air conditioning is in the upright position and the air conditioning should be placed on a flat surface. - Page 9 Fig.4 2) Elongate the exhaust pipe and snap the flat end of the exhaust pipe joints into the hole of the window sealing plate assembly (as shown in Fig.5 and Fig.6). Note: The flat end of the exhaust pipe joints must be snapped into place. The pipe must not be distorted or have substantial bends (greater than 45 °).
-
Page 10: Control Panel
Control panel 1: When the machine is powered on for the first time, the buzzer will sound, the machine will go into standby status. 2: Power Key: Press this key to switch the machine on and off. 3: Mode Selection Key: In the case of power on, press the key to switch between cooling dehumidification heating cooling... -
Page 11: Remote Control
Remote Control Single cold Remote remote control control with heating function 1. Power: Press the key to turn on or turn off the machine. 2. Mode: press the key to switch between cooling, air supply, dehumidification mode. 3. Up: press the key to increase temperature and timing set value. -
Page 12: Water Drainage
Protection Functions Frost Protection Function In cooling, dehumidifying or economic power saving mode, if the temperature of the exhaust pipe is too low, the machine will automatically enter protection status; if the temperature of the exhaust pipe reaches a certain temperature, it automatically reverts to normal operation. Overflow Protection Function When water in the water pan exceeds the warning level, the machine will automatically sound an alarm, and the "FULL"... - Page 13 Water drainage Continuous drainage (Optional) (only applicable to dehumidifying mode), as shown in figure: 1) Unscrew the drainage cover, and unplug the water plug. 2) Fit the drainage pipe into the water outlet. 3) Connect the drainage pipe to the bucket. Page 13...
-
Page 14: Maintenance And Cleaning
Maintenance and cleaning Warning: In order to avoid an electric shock, always power off the air conditioner and pull out the plug from the wall socket before cleaning, maintenance or repairs. Warning: Do not attempt to maintain or repair the appliance yourself. Only authorised agents are to carry out repairs. - Page 15 If you will not be using the appliance for a long period of time 1: Unscrew the drainage cover, unplug the water plug, and discharge the water in the water pan into other water containers or directly tilt the body to discharge the water into other containers.
-
Page 16: Trouble Shooting
Trouble shooting Please review this list before calling a service centre. It could save you time and money. This list includes frequent complaints that do not arise from defective workmanship or material usage. Some of the features described here may not apply to your model. Problem Reason Solution... - Page 17 Damage caused by moving the appliance. If you find one of the following symptoms, please switch the circuit breaker off immediately and call the nearest authorised Defy service centre for help. The power cord has overheated or is damaged. An abnormal sound is heard during operation.
- Page 18 Schematic Diagram for Cooling & Heating model Capillary Condenser Compressor Evaporator Page 18...
-
Page 19: Branches
Rua da Resistencia No. 97B R/C Cell: +258 84 44 61 234 coolworldlda@hotmail.com Nosso Show Room Av: da Industrias, Parcela No.735 * 735A Machava, Maputo Please register your product at www.defy.co.za DEFY APPLIANCES (PTY) LTD P.O.BOX 12004 JACOBS DURBAN 4026 SOUTH AFRICA Page 19... -
Page 20: Warranty
Warranty This certificate is issued by DEFY APPLIANCES (PTY) LIMITED manufacturers of Defy and Ocean products, hereinafter the Company, to the original purchaser only, of the appliance described on the certificate and shall constitute the only warranty given in respect of this appliance.
