A P R O U D H E R I T A G E O F E X P E R I E N C E & Q U A L I T Y

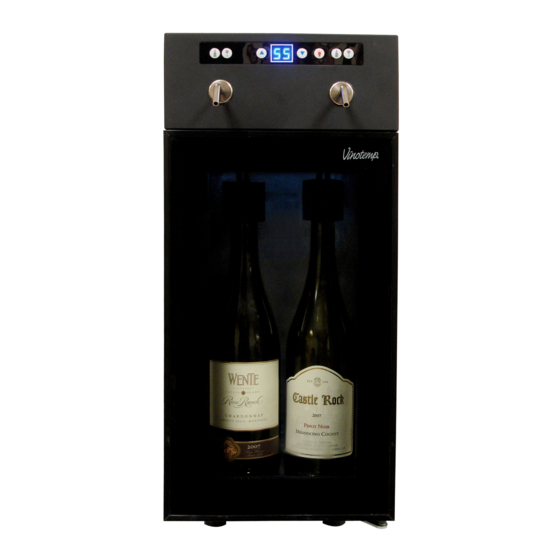

V T - W I N E D I S P 4
V T - W I N E D I S P 4 S S
V T - W I N E D I S P 2
S e r v i c e
M a n u a l
W W W . V I N O T E M P . C O M
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the VT-WINEDISP4 and is the answer not in the manual?

Questions and answers

Related Manuals for Vinotemp VT-WINEDISP4

Summary of Contents for Vinotemp VT-WINEDISP4

  • Page 1 A P R O U D H E R I T A G E O F E X P E R I E N C E & Q U A L I T Y V T - W I N E D I S P 4 V T - W I N E D I S P 4 S S V T - W I N E D I S P 2 S e r v i c e...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS VT-WINEDISP2&4 TROUBLESHOOTING .......... 3 Compressor (VT-WINEDISP2&4) ..........13 Condenser (VT-WINEDISP2&4) ........... 13 Display/Control Circuit Board (VT-WINEDISP2) ......14 CHANGING THE TEMPERATURE SENSOR ........19 CHANGING THE WINE VALVE ............21 CHANGING THE PRESSURE REGULATOR ........29 W W W . V I N O T E M P . C O M...

  • Page 3: Vt-Winedisp2&4 Troubleshooting

    VT-WINEDISP2&4 TROUBLESHOOTING 1. Dispensing System Complaint Possible Causes Response Gas leak, one a. Canister not tightened a. Turn the canister clockwise all the canister only b. Canister is not fully filled b. Change a new canister dispensing 1~2 c. Canister gasket unaligned, c.
  • Page 4 wiring or replace it Wine spurting or a. If all spouts spurt wine: a. Reduce the pressure to 3~5 psig gas pressure too high spitting b. Wine tube restricted b. Check any restrictions c. Bottle near empty and too c. Change a new bottle much gas in the bottle d.
  • Page 5 high b. Temperature sensor b. Displaying temperature is correct but touching the cold panel cabinet temperature is high temperature and cycling on/off Unit running a. Temperature setting too low a. Raise the setting b. Temperature sensor fault b. Insert the sensor in a cup of iced water to see if displaying 32 °...
  • Page 6 3. Parts and descriptions 4. How to install the bottle Step 1 W W W . V I N O T E M P . C O M...
  • Page 7 Step 2 Step 3 1 7 6 2 1 S o u t h S u s a n a R o a d , R a n c h o D o m i n g u e z , C a l i f o r n i a 9 0 2 2 1 i n f o @ v i n o t e m p .
  • Page 8 Step 4 5. How to install the gas canister Step 1 Remove used one (turn it counter-clockwise) W W W . V I N O T E M P . C O M...
  • Page 9 Step 2 Step 3 Place new one (turn it clockwise until tight) 1 7 6 2 1 S o u t h S u s a n a R o a d , R a n c h o D o m i n g u e z , C a l i f o r n i a 9 0 2 2 1 i n f o @ v i n o t e m p .
  • Page 10 6. Canister regulator Canister Regulator (VT-WINEDISP2&4) 7. Gas and wine valves Gas and Wine Valves (VT-WINEDISP2) W W W . V I N O T E M P . C O M...
  • Page 11 Gas and Wine Valves (VT-WINEDISP4) 8. Power switch Power Switch (VT-WINEDISP2) 1 7 6 2 1 S o u t h S u s a n a R o a d , R a n c h o D o m i n g u e z , C a l i f o r n i a 9 0 2 2 1...
  • Page 12 Power Switch (VT-WINEDISP4) Power Switch (Inside) W W W . V I N O T E M P . C O M...

  • Page 13: Compressor (Vt-Winedisp2&4)

    9. Compressor Compressor (VT-WINEDISP2&4) Condenser Condenser (VT-WINEDISP2&4) Display/control circuit board 1 7 6 2 1 S o u t h S u s a n a R o a d , R a n c h o D o m i n g u e z , C a l i f o r n i a 9 0 2 2 1 i n f o @ v i n o t e m p .

  • Page 14: Display/Control Circuit Board (Vt-Winedisp2)

    Display/Control Circuit Board (VT-WINEDISP2) Display/Control Circuit Board (VT-WINEDISP4) W W W . V I N O T E M P . C O M...
  • Page 15 How to replace power I/O circuit board Remove 4 screws that hold the condenser Pull out the condenser at the left side 1 7 6 2 1 S o u t h S u s a n a R o a d , R a n c h o D o m i n g u e z , C a l i f o r n i a 9 0 2 2 1 i n f o @ v i n o t e m p .
  • Page 16 Remove 2 screws that hold the circuit board Mark all the cables and then unplug them; replace the circuit board W W W . V I N O T E M P . C O M...
  • Page 17 Power I/O circuit board Power I/O Circuit Board (VT-WINEDISP2) 1-120VAC; 2-Compressor; 3-Fan; 4-Wine & Gas Valve-1 (Your Left 1st Spout); 5-Wine & Gas Valve-2 (Your Left 2nd Spout); 1 7 6 2 1 S o u t h S u s a n a R o a d , R a n c h o D o m i n g u e z , C a l i f o r n i a 9 0 2 2 1 i n f o @ v i n o t e m p .
  • Page 18 Power I/O Circuit Board (VT-WINEDISP4) 1-120VAC; 1-120VAC; 2-Compressor; 3-Fan; 4-Wine & Gas Valve-1 (Your Left 1st Spout); 5-Wine & Gas Valve-2 (Your Left 2nd Spout); 6-Wine & Gas Valve-3 (Your Left 3rd Spout); 7-Wine & Gas Valve-4 (Your Left 4th Spout);...

  • Page 19: Changing The Temperature Sensor

    CHANGING THE TEMPERATURE SENSOR Remove screws. Lift the cover Under the cover, you will find the temperature sensor. Remove the silicone. 1 7 6 2 1 S o u t h S u s a n a R o a d , R a n c h o D o m i n g u e z , C a l i f o r n i a 9 0 2 2 1 i n f o @ v i n o t e m p .
  • Page 20 Power board of newer wine dispensers. Power board of older wine dispenser models. W W W . V I N O T E M P . C O M...

  • Page 21: Changing The Wine Valve

    CHANGING THE WINE VALVE Remove the screws on the left and right side of the back of the unit. Lift the top panel 1 7 6 2 1 S o u t h S u s a n a R o a d , R a n c h o D o m i n g u e z , C a l i f o r n i a 9 0 2 2 1 i n f o @ v i n o t e m p .
  • Page 22 Carefully remove the top panel. Loosen the tube nut. W W W . V I N O T E M P . C O M...
  • Page 23 Disconnect the tube. Loosen the tube nut. 1 7 6 2 1 S o u t h S u s a n a R o a d , R a n c h o D o m i n g u e z , C a l i f o r n i a 9 0 2 2 1 i n f o @ v i n o t e m p .
  • Page 24 Pull and disconnect the wine tube. W W W . V I N O T E M P . C O M...
  • Page 25 Loosen the valve nut. 1 7 6 2 1 S o u t h S u s a n a R o a d , R a n c h o D o m i n g u e z , C a l i f o r n i a 9 0 2 2 1 i n f o @ v i n o t e m p .
  • Page 26 Turn the valve. Remove the valve. W W W . V I N O T E M P . C O M...
  • Page 27 Install a new valve. Pull and remove the coil. 1 7 6 2 1 S o u t h S u s a n a R o a d , R a n c h o D o m i n g u e z , C a l i f o r n i a 9 0 2 2 1 i n f o @ v i n o t e m p .
  • Page 28 Cut the wires to replace the coil. W W W . V I N O T E M P . C O M...

  • Page 29: Changing The Pressure Regulator

    CHANGING THE PRESSURE REGULATOR Remove the back panel of the wine dispenser to reveal the pressure regulator. 1 7 6 2 1 S o u t h S u s a n a R o a d , R a n c h o D o m i n g u e z , C a l i f o r n i a 9 0 2 2 1 i n f o @ v i n o t e m p .
  • Page 30 Loosen the nut tube at the top. Loosen the two screws on the side, but do not remove them. W W W . V I N O T E M P . C O M...
  • Page 31 Remove the gauge and then install it on the new regulator with Teflon. 1 7 6 2 1 S o u t h S u s a n a R o a d , R a n c h o D o m i n g u e z , C a l i f o r n i a 9 0 2 2 1 i n f o @ v i n o t e m p .
  • Page 32 Reattach the hose to the new regulator. Secure the nut. Tighten the two screws on the side. W W W . V I N O T E M P . C O M...
  • Page 33 Rancho Dominguez, CA 90221 www.vinotemp.com Vinotemp is a registered trademark of Vinotemp International. All products, features, and services are subject to change without notice. We cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes.
