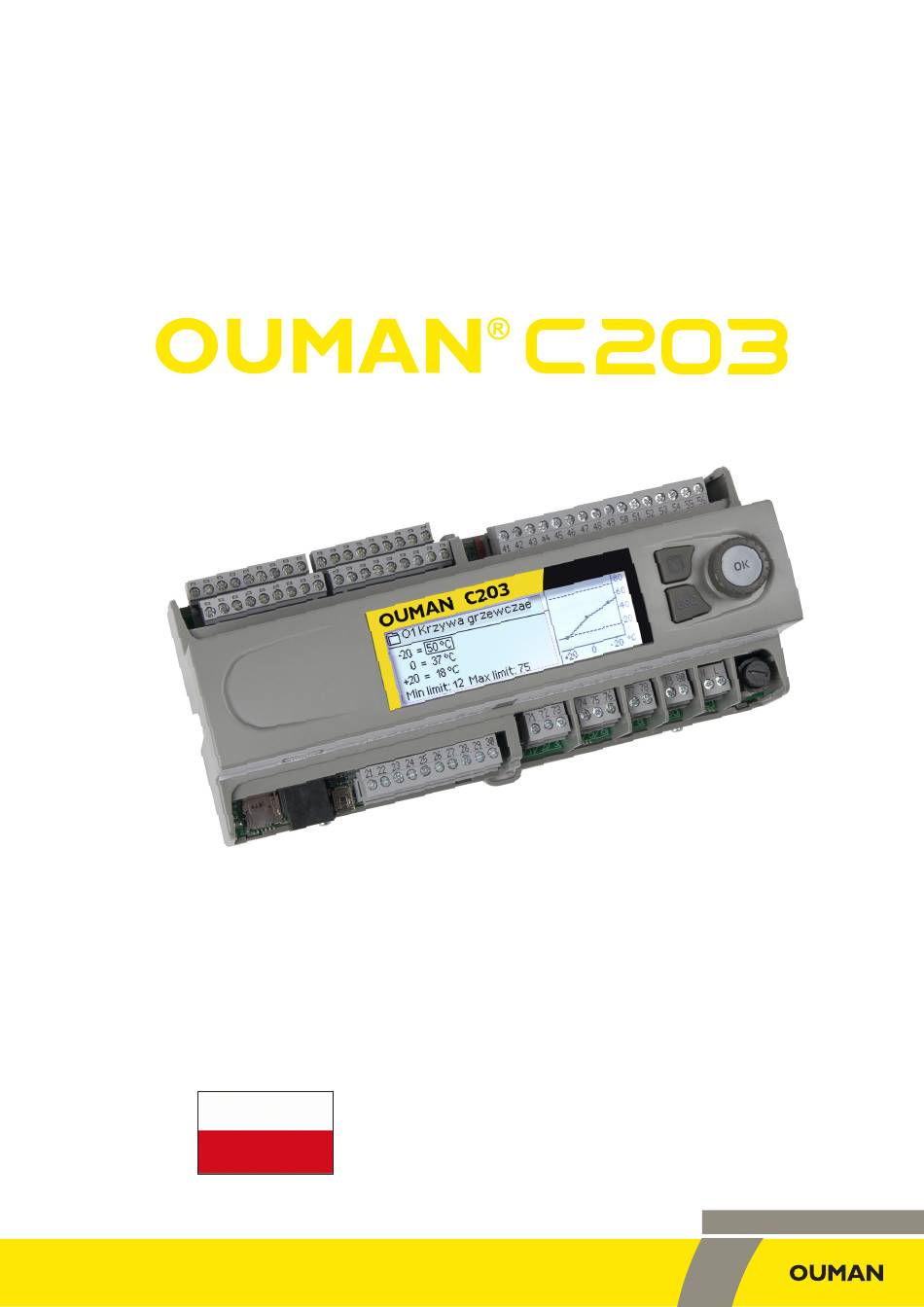

INSTALLATION AND
CONFIGURATION MANUAL
Regulation for three circuits
Types of heating systems:
• Radiator heating
• Floor heating
• Preregulation of air conditioning
• Hot water regulation
www.ouman.fi
XM1410B
: Version 1.5.3->
Saving energy, creating comfort

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C203 and is the answer not in the manual?

Questions and answers

Summary of Contents for OUMAN C203

  • Page 1 INSTALLATION AND CONFIGURATION MANUAL Regulation for three circuits Types of heating systems: • Radiator heating • Floor heating • Preregulation of air conditioning • Hot water regulation www.ouman.fi XM1410B : Version 1.5.3-> Saving energy, creating comfort...

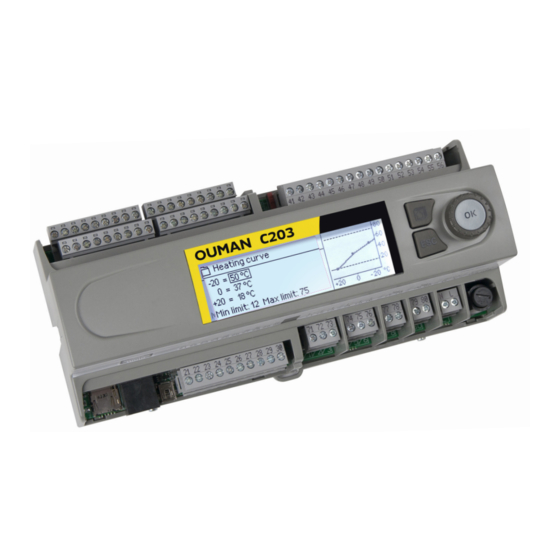

  • Page 2 The C203 is a heat regulator for three circuits that can be used to control two heating circuits and one hot water circuit. Regulator can show in the display various usage modes depending on the connections and configuration.
  • Page 3: Table Of Contents

    Content 1 Connection instructions ..............................4 2 Start up wizard (Uruchomienie kreatora) ........................7 3 Service(Serwis) ..................................8 3.1 Connections and configuration (Połączenia i konfiguracja ....................9 3.2 Service setting values (Ustawienia dla obiegu grzewczego) ...................12 3.3 Restore factory settings, do backup and update device .....................18 4 Favourite views ..................................19 Remote control option ................................21 Index ......................................
  • Page 4: Connection Instructions

    1 Connection instructions...
  • Page 6 Current supply for the GSM modem can come from the network via a net- work device or from C203. The modem is connected to C203’s RJ45 Port 2. If M-LINK is connected to C203, the modem is connected to M-LINK device’s C- connector.(If Oulink is connected to C203, the modem is connected to Oulink...
  • Page 7: Start Up Wizard (Uruchomienie Kreatora)

    2 Start up wizard (Uruchomienie kreatora) Start-up wizard allows you to specify the regulator’s basic Wybór języka Suomi/ Finnish settings. Accept the selection by pressing the selection knob English (OK). Change the selection by rotating the selection knob. Svenska/Swedish Eesti keel/ Estonian Latvijas Polish Czas (Time)
  • Page 8: Service(Serwis)

    3 Service (Serwis) Pomiary Temperatura zewnętrzna -18.2 °C > Here is the C203 controller menu ---------------------------------------------------- > structure. Press the control button O1 Woda zasilająca 35.1 °C > (OK) to enter the menu. O1 Powrót wody 22.0 °C > O 1 U kła d s t e r o wa n i a Woda zasilająca...
  • Page 9: Connections And Configuration

    3.1 Connections and configuration (Połączenia i konfiguracja) Usage connections are grouped according to connection points and Połączenia i konfiguracjaUI W użyciu > functions. When you press OK, a menu will open by the measurement/ UI1:Temperatura zewnętrzna > connection point that you can use to: UI2: A1 Wody zasilającej Nieużywany >...
  • Page 10 Name Alternative selections Input Note UI12 Pomiar 12 -> Name: Meas. UI12; other ______________________________________ Pomiar temperatury Pressure transmitter measurement: Wyłącznik ciśnieniowy: Wyłącznik ciśnieniowy Pomiar ciśnienia: Automatyczny/ Ręczny Rodzaj wejścia cyfrowego: Zakres pomiarowy ___(16.0 bar, setting range 0.0...25.0) Przetwornik ciśnienia V Normalnie otwarty Nazwa pomiaru: (Pomiar ciśnienia 1) , other, Normalnie zamknięty...
  • Page 11 Name Alternative selections Input Note Ac Siłownik sterujący Czas otwarcia siłownika ____ 150 s (10...500 s) O1 Siłownik sterujący 0-10 V / 2-10 V / ________________________ Czas zamknięcia siłownika ____ 150 s (10...500 s) 10-0 V / 10-2 V TR1, TR2 3-punkty Czas otwarcia siłownika ____ 150 s (10...500 s) O2 Siłownik sterujący...
  • Page 12: Service Setting Values (Ustawienia Dla Obiegu Grzewczego)

    3.2 Heating curve settings (Ustawienia dla obiegu grzewczego) Service mode includes all value settings for the regulator. Some of the value settings can also be found in the cir- cuit’s “Value settings” menu. Value settings preceded by a -symbol are found only in service mode. Changing a value setting: Select the desired value setting by turning the selection knob.
  • Page 13 Factory Setting Range Explanation setting C.W.U. Układ sterowania Nieużywany W użyciu/ The control circuits will be taken into use already in start up wizard. Nieużywany If you want to have the control disabled, select “ Not in use”. C.W.U. Nastawa temp. 58.0 °C 20 ...
  • Page 14 If room temperature rises too much when temperatures rises in winter, increase anticipation. Tryb letni Pompa obiegowa W użyciu W użyciu/ If C203 controls also the pump, the pump can be stopped while the Nieużywany summer function mode is active. Letni przestój 19.0 10 ... 35 °C Summer function outdoor temperature limit.
  • Page 15 Factory Setting Range Explanation setting Kompensacja temperatury wewnętrznej Kompensacja temp. wew. W użyciu W użyciu/ It can defined whether room temperature affects to the con- Nieużywany trol of supply water. If the measured room temperature dif- fers from its setting value, room compensation corrects the temperature of the supply water.
  • Page 16 Kompensacja magistrali In channel compensation the need for compensation can be specified by an external device that relays the need for a supply water temperature exception to the C203 through a communication channel (e.g. Ounet S-compensation). Max.wzrost temp.wody 0 ... 30.0 °C Channel compensation cannot increase supply water temperature more zasilającej...
  • Page 17 Setting Factory Range Explanation setting Pomiary magistrali Temp. zewnętrzna z magis- Nieużywany Nieużywany/ A outdoor temperature measurement can be read either from bus or through trali W użyciu UI1. O1 Temp. wew. z magistrali Nieużywany Nieużywany/ A room temperature measurement specific to H1 control circuit can be read W użyciu either from bus or through UI4.
  • Page 18: Restore Factory Settings, Do Backup And Update Device

    Dostrajanie wartości O1 i O2 Dostrajanie wartości: Nastawa P 2...600 °C Supply water temperature change at which the actuator runs the valve at 100%. E. g. If the supply water temperature changes 10 °C and the P area is 200 °C the position of the actuator changes 5 % (10/200 x 100 % = 5 %). Nastawa I 5 ...
  • Page 19 Insert microSD memory card which includes new software to controller C203 asks: ”Would you like to restart device?” memory card Select: ”Yes” C203 reboot to start the update of the new software. The updating of the software takes few minutes. Update external display firmware (Aktualizacja oprogramowania zewnętrznego) C203 Insert the memory card containing the new firmware for the external dis- play in the controller.
  • Page 20: Favourite Views

    4 Favourite views You can easily navigate from the basic view to the desired menu using the favourite view function. By tap- ping the button you can navigate from one favourite view to another. There can be a maximum of five of these views.
  • Page 21: Remote Control Option

    M-Link/Oulink Ethernet adapter if a M-Link or an Oulink Ethernet adapter has been connected to the RJ-45 port of C203. The modem has a fixed an- tenna that can be changed to an external antenna with a 2,5m cord (optio- nal equipment) if needed.
  • Page 22 Product disposal...
  • Page 23: Index

    Index 3-point/5-point curve 12 Manual use 9 Measurement adjustment 9 Active alarms 2 Measurement labelling 11 Actuator running time 17, 11 M-Link 21 Actuator type selection 11, 7 Modbus RTU connections 6 Alarm priority 11 Modem connection 6 Alarms 2 Alarm signal mute 16 Oulink ethernet 21 Alarm setting values 16-17...
  • Page 24: Technical Information

    512 MB...32 GB, File system FAT 32, Class: 4...10+ Optional accessories See page 21. APPROVALS EMC-directive 2014/30/EU Interference tolerance EN 61000-6-1 Interference emissions EN 61000-6-3 XM1410B_C203_Configuration and service_POL_v.1.5.3_20190523 www.ouman.fi We reserve the right to make changes to our products without a special notice.
