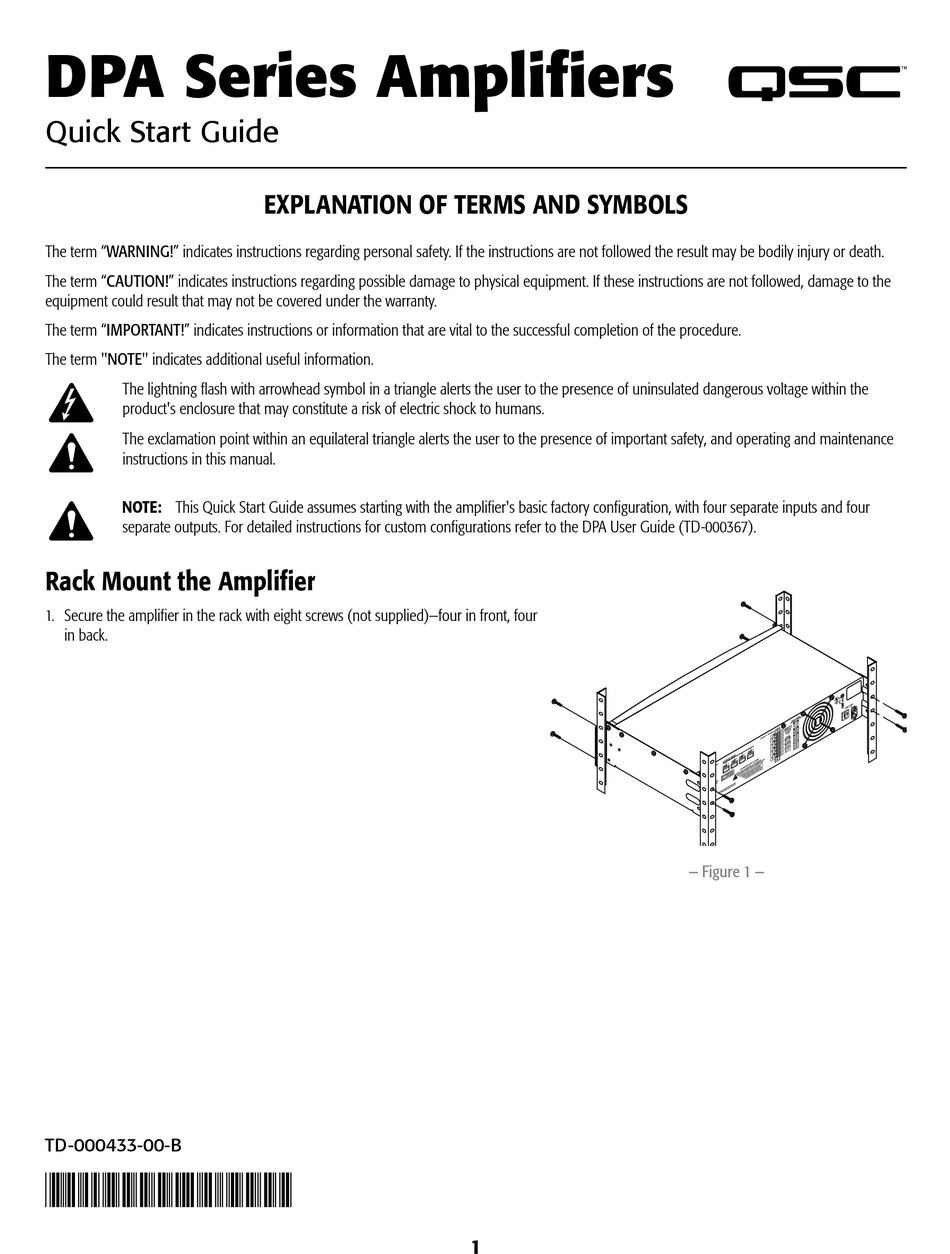

DPA Series Amplifiers
Quick Start Guide
The term "WARNING!" indicates instructions regarding personal safety. If the instructions are not followed the result may be bodily injury or death.
The term "CAUTION!" indicates instructions regarding possible damage to physical equipment. If these instructions are not followed, damage to the
equipment could result that may not be covered under the warranty.
The term "IMPORTANT!" indicates instructions or information that are vital to the successful completion of the procedure.
The term "NOTE" indicates additional useful information.
The lightning flash with arrowhead symbol in a triangle alerts the user to the presence of uninsulated dangerous voltage within the
product's enclosure that may constitute a risk of electric shock to humans.
The exclamation point within an equilateral triangle alerts the user to the presence of important safety, and operating and maintenance
instructions in this manual.
NOTEE: This Quick Start Guide assumes starting with the amplifier's basic factory configuration, with four separate inputs and four
separate outputs. For detailed instructions for custom configurations refer to the DPA User Guide (TD-000367).
Rack Mount the Amplifier
1. Secure the amplifier in the rack with eight screws (not supplied)—four in front, four
in back.
TD-000433-00-B
*TD-000433-00*
EXPLANATION OF TERMS AND SYMBOLS
1
— Figure 1 —

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DPA Series and is the answer not in the manual?

Questions and answers

Related Manuals for QSC DPA Series

Summary of Contents for QSC DPA Series

  • Page 1 DPA Series Amplifiers Quick Start Guide EXPLANATION OF TERMS AND SYMBOLS The term “WARNING!” indicates instructions regarding personal safety. If the instructions are not followed the result may be bodily injury or death. The term “CAUTION!” indicates instructions regarding possible damage to physical equipment. If these instructions are not followed, damage to the equipment could result that may not be covered under the warranty.
  • Page 2 Connections Balanced Unbalanced Inputs 1. Wire the line-level audio sources to up to four Euro-style connectors (supplied). You may use either balanced (Figure 2) or unbalanced connections (Figure — 2. Plug the connectors into the appropriate receptacles (Routable Inputs 1, 2, Figure —...
  • Page 3 Bridged (A+B) and Separate (C D ) Channels — Figure 7 — Parallel Channels (ABCD) — Figure 8 — Connect the Loudspeakers 1. Connect the loudspeaker wiring to the 8-pin Euro-style connector as needed for your amplifier's configuration. 2. Install the female 8-pin Euro-style connector onto the male connector on the rear of the amplifier as shown in Figure 3.

  • Page 4: Amplifier Control

    DPA Amplifier Signal Flow Output Processing Input Settings Amp Configuration Sensitivity Highpass Gain / Lowpass 5-band RMS / Peak Meter Gain Mute Delay Meter Mixer Switch Filter Polarity Filter Limiter Sensitivity Highpass Gain / Lowpass RMS / Peak 5-band Meter Gain Mute Delay...

  • Page 5: Screen Types

    Menu Tree Presets Inputs Outputs Utilities Preset Recall Input Sensitivity Mixer w/Noise & Tone Status Preset Save Input Gain Spkr Processing Amp ID Preset Wizard Crossover Display Lockout Password Delay Limiter Load Speaker Save Speaker Screen Types Informational Preset # and Configuration F1: Config - A B C D Location and breadcrumbs Home (Press HOME for more information)
  • Page 6 Presets The DPA amplifiers are preset driven, so to get the most out of the amplifiers an understanding of how presets work is essential. A preset, in the context of the DPA amplifiers, is a combination of amplifier configuration and DSP processing; recalling a preset can change the output routing and wiring and/or any DSP processing.
  • Page 7 STEP 3 — Select output channel for speaker assignment OUTPUTS SPEAKERS SAVE When you are finished setting the Impedance and Power for Scroll to select the output channel. Output: each output, scroll to the SPEAKERS tab. Imped: Loudspeaker assignment is Power: optional.

  • Page 8: Saving Presets

    Saving Presets Presets can be modified and saved using the Save Preset menu. You can start with a Factory Preset (F<n>: <name>), make modifications, and then save it as a User Preset (U<n>: <name>). You cannot overwrite Factory Presets. There are two ways to save presets: overwrite an existing User Preset, or save a new User Preset.

  • Page 9: Recalling Presets

    Recalling Presets Recalling a preset changes the configuration of the amplifier. You can recall factory or user-defined presets. To overwrite a User Preset, HOME > PRESETS > PRESET RECALL > ENTER STEP 4 — Select Preset F1: Config - A B C D Indicates more Presets F1: Config - A B C D Full...
  • Page 10 +1 714 957-7150，或拨打免费电话（仅限美国）(800) 772-2834 通过邮件获取副本。 © 2014–2019 QSC, LLC. All rights reserved. QSC and the QSC logo are registered trademarks of QSC, LLC in the U.S. Patent and Trademark office and other countries. All other trademarks are the property of their respective owners.
