Philips ADD4964 User Manual

Hide thumbs Also See for ADD4964:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Dispenser
ADD4962
ADD4964
User Manual
1-8
Petunjuk Penggunaan
9-16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADD4964 and is the answer not in the manual?

Questions and answers

Related Manuals for Philips ADD4964

Summary of Contents for Philips ADD4964

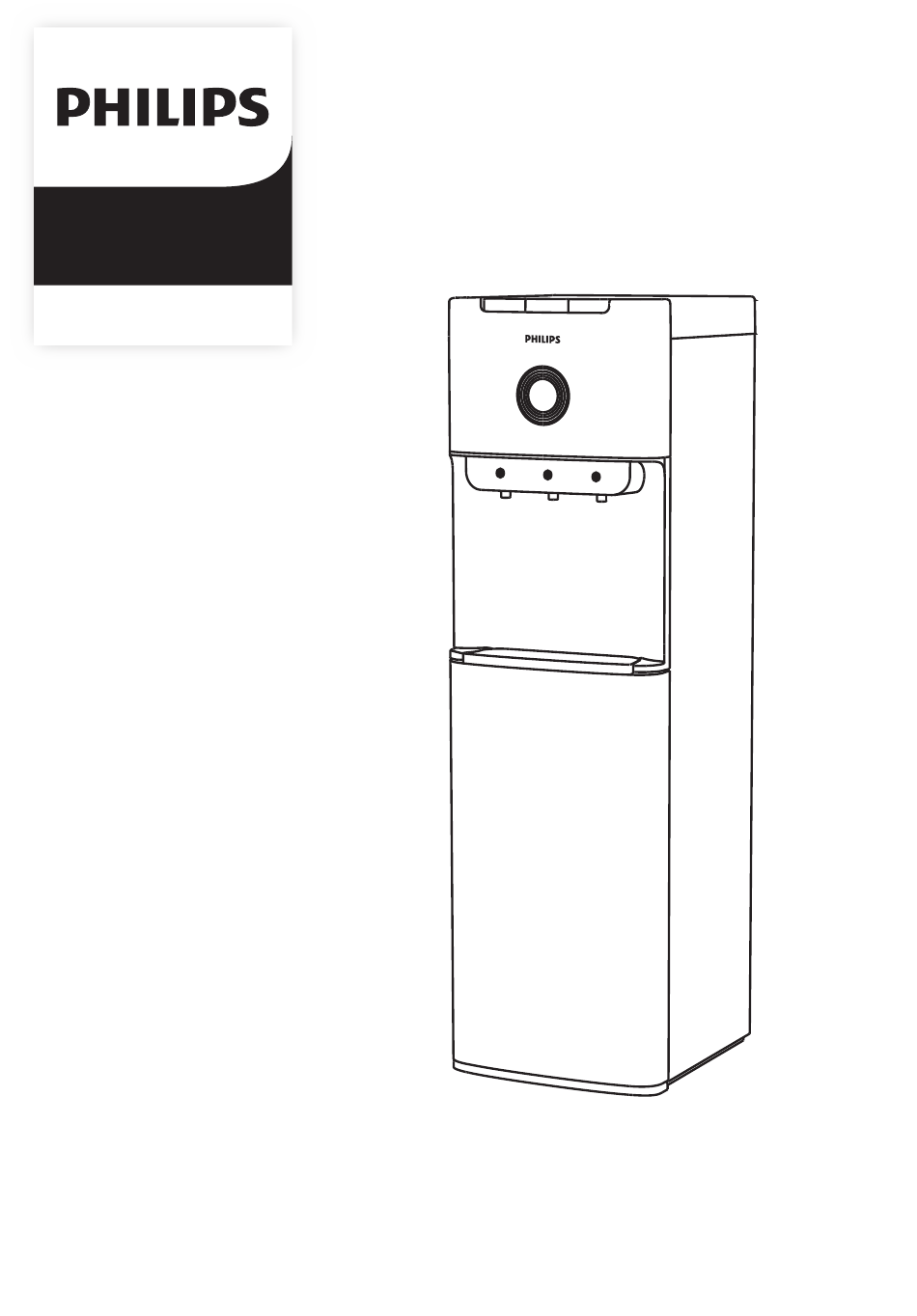

  • Page 1 Dispenser ADD4962 ADD4964 User Manual Petunjuk Penggunaan 9-16...

  • Page 3: Table Of Contents

    Content Main technical speci cation Trouble shooting Product overview Guarantee and Service Indicator panel and switch Packing list Instruction ·UV-LED light Precautions Routine Maintenance...

  • Page 4: Main Technical Speci Cation

    1 Main technical speci cation Model ADD4962 ADD4964 Rated voltage 220V Rated frequency 50Hz Heating power 170/350W Cooling power ≥90℃, 3.8L/h with high power, Hot water 1.8L/h with low power Cold water ≤10℃， 2L/h Environmental temp. Coolant R134a, 38g Relative humidity ≤90%...

  • Page 5: Product Overview

    Product overview Child Safety Lock Lower Cabinet Door Indicator panel Water Bottle Cap with Hose Cold Water Faucet Water Bottle Ambient Water Faucet Power Switch Hot Water Faucet Conderser Drip Tray Power Cord Dispenser Flushing Drain...

  • Page 6: Indicator Panel And Switch

    3 Indicator panel and switch Power on indicator Heating indicator Cooling indicator Water shortage indicator Indicator panel When the dispenser is connected with power and the power button switches to ON, the power on indicator will light up. When the dispenser is heating up the water in the hot water tank, the heating indicator light will be on.

  • Page 7: Instruction

    4 Instruction （1）Unpacking the water dispenser · Cut and remove the straps from the box. DO NOT turn the box upside down, or lay it on its side. The bottom of the box is separate from the top section. Lift straight up on the top box section to remove the top box section.

  • Page 8: Uv-Led Light

    Note: please wait until the water pump stops running before using the unit. If the water tank is not full, no water will dispense from the water faucet. UV-LED light (applicable for ADD4964) The UV-LED light is installed in the cold water tank to kill the bacteria which may grow inside.
  • Page 9 · Do not use your water dispenser outdoors. Place the water dispenser away from direct sunlight and make sure that there is at least 4 inches (10cm) of space between the back of your unit and wall. Keep a minimum of 2 inches (5cm) on each side of your unit free. ·...

  • Page 10: Trouble Shooting

    7 Trouble shooting Trouble Possible causes Solutions 1. Unit is unplugged. 1. Plug the power cord into an socket. Unit does 2. Main power supply is o . 2. Reestablish main power supply. not dispense 3. Damaged water dispenser. 3. Replace the dispenser or send for hot and 4.

  • Page 11: Guarantee And Service

    For more details about warranty conditions, please refer to the warranty information in the box. If you need more information, please visit: www.Philips.com. Within the warranty period, you will receive free warranty service for any damage caused by the manufacturing process or components under normal operation con rmed by our maintenance service.
  • Page 12 Please keep this user manual for future reference.
  • Page 13 Daftar Isi Spesi kasi teknis Pemecahan masalah Bagian-bagian produk Jaminan dan layanan Panel indicator dan saklar Isi dalam kemasan Petunjuk ·Lampu UV-LED Tindakan pencegahan Perawatan rutin...

  • Page 14: Spesi Kasi Teknis

    1 Spesi kasi teknis Model ADD4962 ADD4964 Tegangan 220V Frekuensi 50Hz Daya pemanas 170/350W Daya pendingin ≥90℃, Daya tinggi : 3.8L/h， Air panas Daya rendah : 1.8L/h Air dingin ≤10℃， 2L/h Kelas iklim Cairan pendingin R134a, 38g Kelembaban relatif ≤90%...

  • Page 15: Bagian-Bagian Produk

    Bagian-bagian produk Kunci pengaman anak untuk air panas Pintu kabinet bawah Panel indikator Tutup botol galon dengan slang Keran air dingin Botol galon Keran air normal Saklar daya Keran air panas Kondensor Baki tetesan air Kabel daya listrik Saluran pembuangan...

  • Page 16: Panel Indicator Dan Saklar

    3 Panel indikator dan saklar Indikator daya hidup Indikator pemanas Indikator pendingin Indikator kurang air Panel indicator Ketika unit dispenser terhubung dengan daya listrik dan saklar daya pada posisi ke ON, indikator daya hidup akan menyala. Saat dispenser memanaskan air dalam tangki air panas, lampu indikator pemanas menyala. Saat dispenser mendinginkan air dalam tangki air dingin, lampu indikator pendingin menyala.

  • Page 17: Petunjuk

    4 Petunjuk pengoperasian (1) Buka kemasan unit dispenser. · Potong dan lepaskan tali dari kotak. JANGAN membalikkan kotak, atau meletakkannya di sisinya. Bagian bawah kotak terpisah dari bagian atas. Angkat lurus ke atas bagian kotak atas untuk melepas bagian kotak atas. Lepaskan kemasan Styrofoam dan kantong plastik. Angkat unit dispenser dari bagian bawah kotak.

  • Page 18: Lampu Uv-Led

    Catatan: Tunggu sampai pompa air berhenti bekerja sebelum menggunakan unit dispenser. Jika tangki air tidak penuh, tidak ada air yang keluar dari kran air. UV-LED light (berlaku untuk ADD4964) Lampu UV-LED yang terpasang di tangki air dingin untuk membunuh bakteri yang mungkin tumbuh di dalamnya.
  • Page 19 • Jangan tempatkan unit dispenser air Anda di luar ruangan. Tempatkan dispenser air jauh dari sinar matahari langsung dan pastikan setidaknya ada jarak 10 cm diantara bagian belakang unit dan dinding. Pastikan ada jarak minimum 5 cm di setiap sisi unit. •...

  • Page 20: Pemecahan Masalah

    7 Pemecahan masalah Masalah Kemungkinan penyebab Solusi 1. Kabel listrik tidak terhubung ke 1. Hubungkan steker kabel daya listrik Unit dispenser stopkontak. ke stopkontak. tidak 2. Sumber listrik mati. 2. Menyalakan kembali sumber listrik. mengeluar-kan 3. Dispenser yang rusak. 3. Ganti unit dispenser atau kirim ke 4.

  • Page 21: Jaminan Dan Layanan

    Produk ini mencakup garansi dua tahun dari tanggal pembelian. Untuk detail lebih lanjut tentang ketentuan garansi, silakan merujuk ke informasi garansi di dalam kotak. Jika Anda memerlukan informasi lebih lanjut, silakan kunjungi: www.philips.com. Dalam satu tahun sejak tanggal pembelian, Anda akan menerima layanan garansi gratis untuk segala kerusakan yang disebabkan oleh proses pembuatan atau komponen dalam operasi normal yang dikoreksi oleh layanan pemeliharaan kami.
  • Page 22 Simpan Petunjuk Penggunaan untuk referensi di masa mendatang.
  • Page 24 © 2019 AquaShield All rights reserved. The Philips trademark and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. used under license. This product has been manufactured by and is sold under the responsibility of Hong Kong AquaShield Health Technology Company Limited and Hong Kong AquaShield Health Technology Company Limited is the warrantor in relation to this product.
