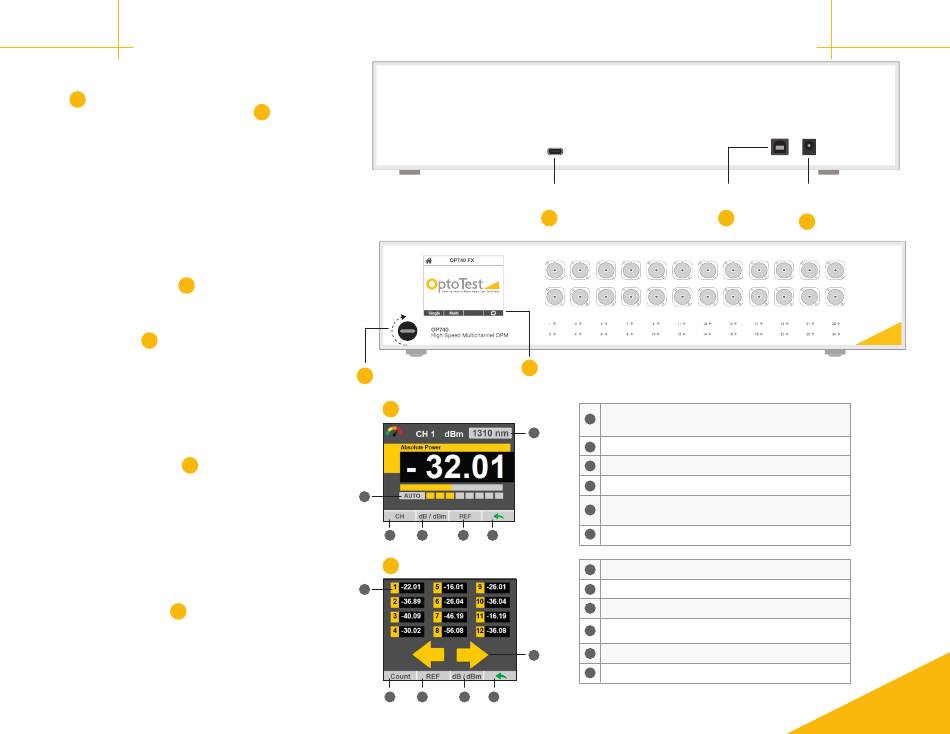

OptoTest OP740 Quick Start page 2

OP740
To begin, the 9V power supply and power cord should
be connected to each other, a wall outlet, and the
OP740 1 . Either the USB A-B cable or the USB-C
cable should be used to connect the OP740
the operating PC for communication and control
through software.
Note: The USB-C is required for high-speed
acquisition, while the USB-B port allows the OP740 to
be used as an OP710 in OPL-Suite Software such as
OPL-MAX and OPL-LOG.
To power on, turn the key clockwise 90 degrees from
horizontal to vertical position. 3
This will bring up the Home Screen, from which the
user can navigate to the Single Channel, Multichannel,
and Settings screens. 4
From the single channel screen 5 , the user can take a
reference and view real-time optical power measurement
and adjust parameters for a single channel.
6
From the multichannel screen , the user can take a
reference and view both relative and absolute real-time
optical power measurements for up to 24 channels.
2 to
3
5 Single Channel Screen
2
3 4
6 Multichannel Screen
1
3 4
USB-C
(USB 3.0 Communications)
2
4
Toggle through available wavelengths. Typically, for power meters with InGaAs
1
this is 850nm, 980nm, 1300nm, 1310nm, 1480nm, 1550nm, and 1625nm;
for Silicon Power Meters the wavelengths are 650nm, 850nm, and 980nm
1
2
Select Auto Range or Range Hold
3
Set displayed channel; Value Entry Screen
4
Toggle between relative and absolute power view
Take reference: store the current absolute power reading as the reference
5
and switch to relative power view if not already there
6
5 6
Return to previous screen
1
Single Channel Screen for selected channel
2
Toggle between both 12 channel views
3
Toggle between 8,18,12, and 24 channel views
Take reference: store the current absolute power reading as the reference
4
and switch to relative power view if not already there
5
2
Toggle between relative and absolute power view
6
Return to previous screen
5 6
Quick Start
USB-B 9V Power
(USB 2.0 Communications) Supply
2
1
