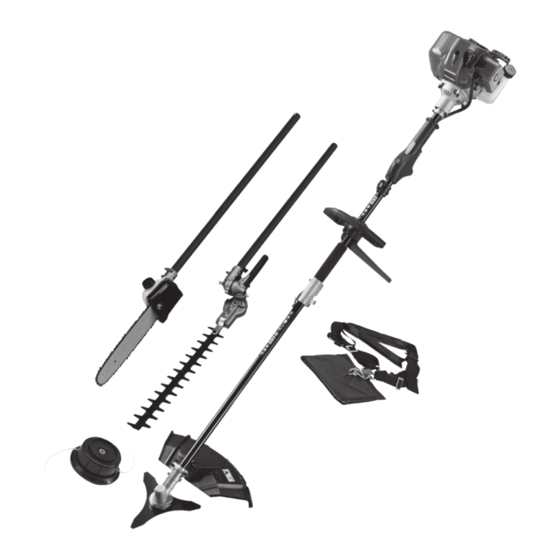

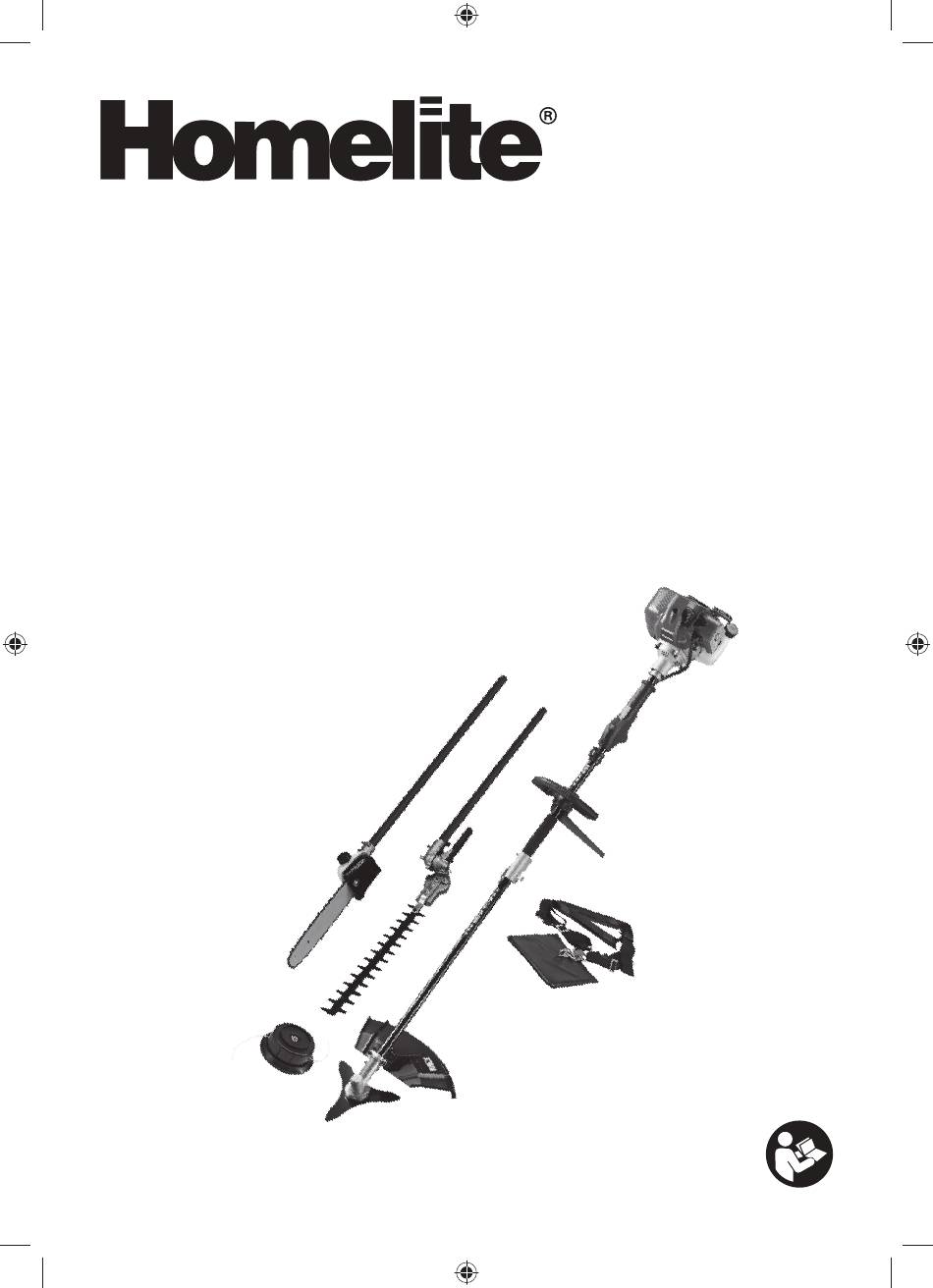

- Page 1 HLT33MTB...
- Page 2 Important! It is essential that you read the instructions in this manual before assembling, operating, and maintaining the product. Subject to technical modifications.
- Page 3 Original instructions | English Safety, performance, and dependability have been given WARNING top priority in the design of your grass trimmer, brushcutter, hedge trimmer, and pole pruner. The product is not intended to be used by children or persons with reduced physical, mental, or sensory capabilities.
- Page 4 In addition to the above rules, these additional Never use cutting means or attachments that are not instructions are appropriate when using the product in specified by Homelite in this manual. This includes the brushcutter mode. use of metal multi-piece pivoting chains and flail-blades.
- Page 5 Original instructions | English cut. This contact may cause the blade to stop for an ■ Do not operate the engine in a confined space where instant, and suddenly “thrust” the product away from the dangerous carbon monoxide fumes can collect. Carbon object that was hit.
- Page 6 Original instructions | English cutting speed. of the guide bar or when the wood closes in and pinches the chain in the cut. Contact at the upper portion of the ■ Do not force the tool. Use the correct tool for your tip of the guide bar can cause the chain to dig into the application.
- Page 7 Original instructions | English SHORT TERM ■ Consequences of improper maintenance may include excess carbon deposits resulting in loss of performance ■ Stop the engine and allow it to cool down before storing. and discharge of black lubricant residue dripping from the muffler.
- Page 8 Original instructions | English with a stiff brush, and then carefully apply a rust MAINTENANCE SCHEDULE preventative lubricant before refitting the blade protector. The manufacturer recommends you to use a Check if fastener is fully Before each use rust preventative and lubricant spray to apply an even tightened distribution and reduce the risk of personal injury from contact with the blades.
- Page 9 Original instructions | English ■ Contact with cutting means WARNING – Ensure that the blade protectors are fitted when the Injuries may be caused, or aggravated, by prolonged product is not in use. Keep hands and feet away use of a tool. When using any tool for prolonged periods, from the blades at all times.
- Page 10 Original instructions | English CAUTION Without safety alert symbol Waiting time: 10 seconds Indicates a situation that may result in property damage. PRIME - press the primer bulb 10 times slowly SYMBOLS IN THIS MANUAL Pull the starter grip Note Squeeze throttle trigger to start / run.
- Page 11 Original instructions | English is a 50:1 ratio. WARNING ■ Mix the fuel thoroughly and also each time before If any parts are damaged or missing, do not operate the fueling. product until the parts are replaced. Failure to heed this ■...
- Page 12 Original instructions | English the trigger handle about hip height. ■ Ensure that the falling branch is not a danger to yourself, bystanders or property, including utility cables. ■ Maintain your grip and balance on both feet. Position yourself so that you will not be drawn off balance by the ■...
- Page 13 Original instructions | English REPLACING THE SPARK PLUG ■ Remove the screw on the front of the housing counterclockwise. ■ Remove the screw on the back of housing WARNING counterclockwise. The material of the spark plug is metal. It becomes very ■...
- Page 15 1. Starter grip 8. Spark plug 15. String head housing 21. Pruner scabbard 2. Fuel cap 9. Adjustment handle and spring 22. Hedge scabbard 3. Rear handle 10. Hedge trimmer blade 16. Spool 23. Front handle 4. Trigger lock 11. Chain oil tank cap 17.
- Page 16 3-4 mm...
- Page 17 25Nm...
- Page 19 p.19 p.22 p.33 p.40 p.41...
- Page 20 p.32 p.34 p.35 p.37 p.25 p.27 p.29...
- Page 27 ≤60˚ ≥15m (59’)
- Page 29 ≤60˚ ≥15m (59’)
- Page 36 22-25Nm...
- Page 45 TROUBLESHOOTING IF THESE SOLUTIONS DO NOT SOLVE THE PROBLEM, CONTACT AN AUTHORISED SERVICE CENTRE. PROBLEM POSSIBLE CAUSE SOLUTION Engine will not start No spark The spark plug may be damaged. Remove it and check for dirt and cracks. Replace with a new spark plug. No fuel Push the primer bulb until bulb is full of fuel.
- Page 46 Lubricant drips from muffler Operating the product at part Operate the product at full throttle. throttle. Lubricant/fuel mixture is dirty Use fresh fuel and correct synthetic 2-stroke lubricant mix. Air filter is dirty Clean the air filter per instruction in “Maintenance” section. Pole pruner: Bar and chain Chain tension for overtightened Tension chain.
- Page 47 PRODUCT SPECIFICATIONS Trimmer Brushcutter Pole Pruner Grass trimmer/ brushcutter/ hedge trimmer/ pole pruner Vibration (in accordance with ISO 22667) Model HLT33MTB Rear handle Weight - Idling 4.0 m/s 4.5 m/s 5.7 m/s - Without fuel, cutting attachment and 7.0 kg - Racing 5.1 m/s...
- Page 48 REPLACEMENT PARTS Part Part number String head with cutting line 099992801004 Cutting line 099992801003 Cutting attachment guard 099992312083 Nylon locking nut 099992401009 Point blade (brushcutter) 099992801006 Saw chain (10 in.) 099992801005 Homelite bar 10” with silk 099992801074 screen...
- Page 52 Imported by: Techtronic Industries Australia Pty. Ltd. 31 Gilby Road, Mount Waverly, VIC 3149, Melbourne, Australia Techtronic Industries NZ Limited 2 Landing Drive, Mangere, Auckland, 2022 , New Zealand 099992802002-01...
