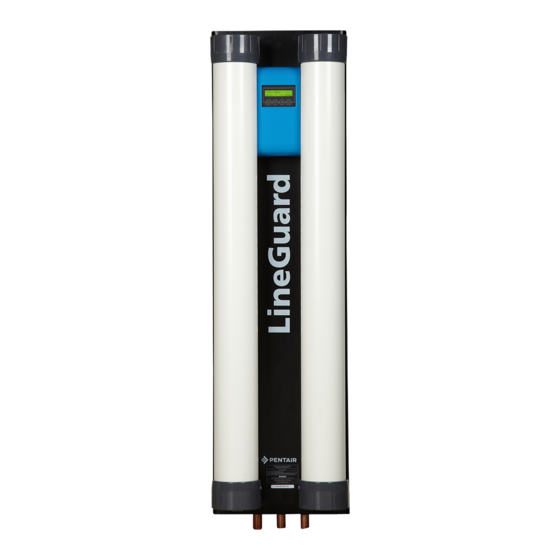

- Page 1 LINEGUARD UF-100 coMpAct wAtER systEMs poINt-oF-ENtRy MANUAL ADvANcED FILtRAtIoN LINEGUARD...
-
Page 2: Table Of Contents
LINEGUARD UF-100 coMpAct wAtER systEMs INstALLAtIoN & opERAtING MANUAL coNtENts 1 Introduction __________________________________________________________________ 1 1.1 Important precautions _________________________________________________________________1 1.2 parts included ________________________________________________________________________1 1.3 tools and materials required for installation _______________________________________________1 2 How the LineGuard works ________________________________________________________ 2 2.1 Filtration mode _______________________________________________________________________2 2.2 cleaning cycles _______________________________________________________________________2... -
Page 3: Introduction
4.3.2.6 setting the flux flush _______________________________________________________14 4.3.2.7 setting an overruling flush __________________________________________________15 thank you for choosing a LineGuard UF-100 water filtration system. please refer to the product datasheet for 4.3.3 setting the alarm _______________________________________________________________15 details on performance, conditions of use, and storage and handling of this product. -
Page 4: How The Lineguard Works
A LineGuard UF-100 has a initial flow rate of 60 l/min (3.6 m3/h). In case more capacity is needed, In a forward flush the membranes are flushed with feed water. the feed water flows through the inner parallel installation of up to five LineGuard systems is possible. -
Page 5: Installation Of The Lineguard
3 INstALLAtIoN oF tHE LINEGUARD please review the recommended piping schematic below for a correct installation. A full installation scheme is included in the back of this manual. please note that any alteration to this might lead to problems with the LineGuard membrane filtration system should be installed in the main water supply line near its entry servicing the LineGuard. -
Page 6: Electrical Connection
3.3 Electrical connection 3.5 start-up procedure the electrical connection to the control unit power supply and the ground/earth connection should be made After the LineGuard has been fitted into the waterline a start-up procedure must be carried out. the by qualified personnel. membranes in the ultrafiltration module are preserved with glycerin, which must be flushed out first. -
Page 7: Control Unit Settings
4 coNtRoL UNIt sEttINGs 4.2.1 Displaying the volumes 4.1 operating mode In the info menu press /\ or \/ until the screen below appears: when in use, the control unit displays the actual mode of the system. In case no water is used the following text appears on the display: the total volume of filtered water since the system has been in use is displayed by pressing show During filtration, the stand-by mode and the flow in l/min are displayed:... -
Page 8: Displaying The Performance
4.3.1 General settings the date of the last time the modules were replaced is displayed by pressing \/. In this menu, language, clock, date and module specifications can be set. In the setup menu, press /\ or \/ until the screen below appears: this date can be changed by pressing set. -
Page 9: Setting The Date
4.3.1.3 setting the date 4.3.2.1 setting the start time In the general settings menu press /\ or \/ until the screen below appears: the default start time of the cleaning cycle is 01:00 (1:00 am). In the flush setting menu press /\ or \/ until the screen below appears: the date can be changed by pressing set. -
Page 10: Setting The Backwash
4.3.2.4 setting the backwash 4.3.2.7 setting an overruling flush In case multiple LineGuards are installed in parallel, an overruling flush should be set. please contact your the default value of the duration of the backwash is 20 seconds. In case of low quality water the duration should be increased. - Page 11 4.3.3.2 setting the volume alarm By pressing run, the LineGuard will flush away the glycerin for 8 minutes. this is necessary only once whenever a new membrane module is put into use. After the start-up cycle is complete the control unit will the volume alarm will display a message upon reaching a certain volume of filtered water.
- Page 12 5 MAINtENANcE 5.2.3 Draining the system 5.1 General inspection Before the modules can be replaced the LineGuard needs to be drained of any water resting in the piping of the system. this can be done by following the steps below: the following parts should be visually yearly checked for malfunctions scaling, rust or any other visible signs of deterioration.
- Page 13 5.3 control Unit – optimizing the settings 6 DIMENsIoNs the LineGuard is automatically set to perform one flush cycle of 60 seconds at 01:00 a.m. Both time, All given dimensions are in millimeters duration and frequency of these flushes can be adjusted using the control system. the optimal duration and frequency of the flush cycles depends on the water usage and quality.
- Page 14 7 cLEARANcEs 8 PIPING scHEMAtIcs All given dimensions are in millimeters 1 - Module left 2 - Module right 3 - NO feed water valve 4 - NC drain valve 5 - Pressure sensor feed water 6 - Pressure sensor filtered water 7 - Flow sensor filtered water 8 - Feed water shut-off valve with integrated drain valve...
- Page 15 9 tEcHNIcAL INFoRMAtIoN 10 LIMItAtIoN oF wARRANty AND LIAbILIty Dimensions X-Flow B.V. represents and warrants for the warranty period of one year that its products are free from Height: 1156 mm / 45,5 inch substantial defects in materials and workmanship and conform to the specifications. X-Flow’s warranties do width: 315 mm / 12,5 inch not cover defects or deficiencies due to or arising from (1) normal wear and tear or improper, abnormal, or Depth: 210 mm / 8,3 inch...
