Get To Know Your Thermostat

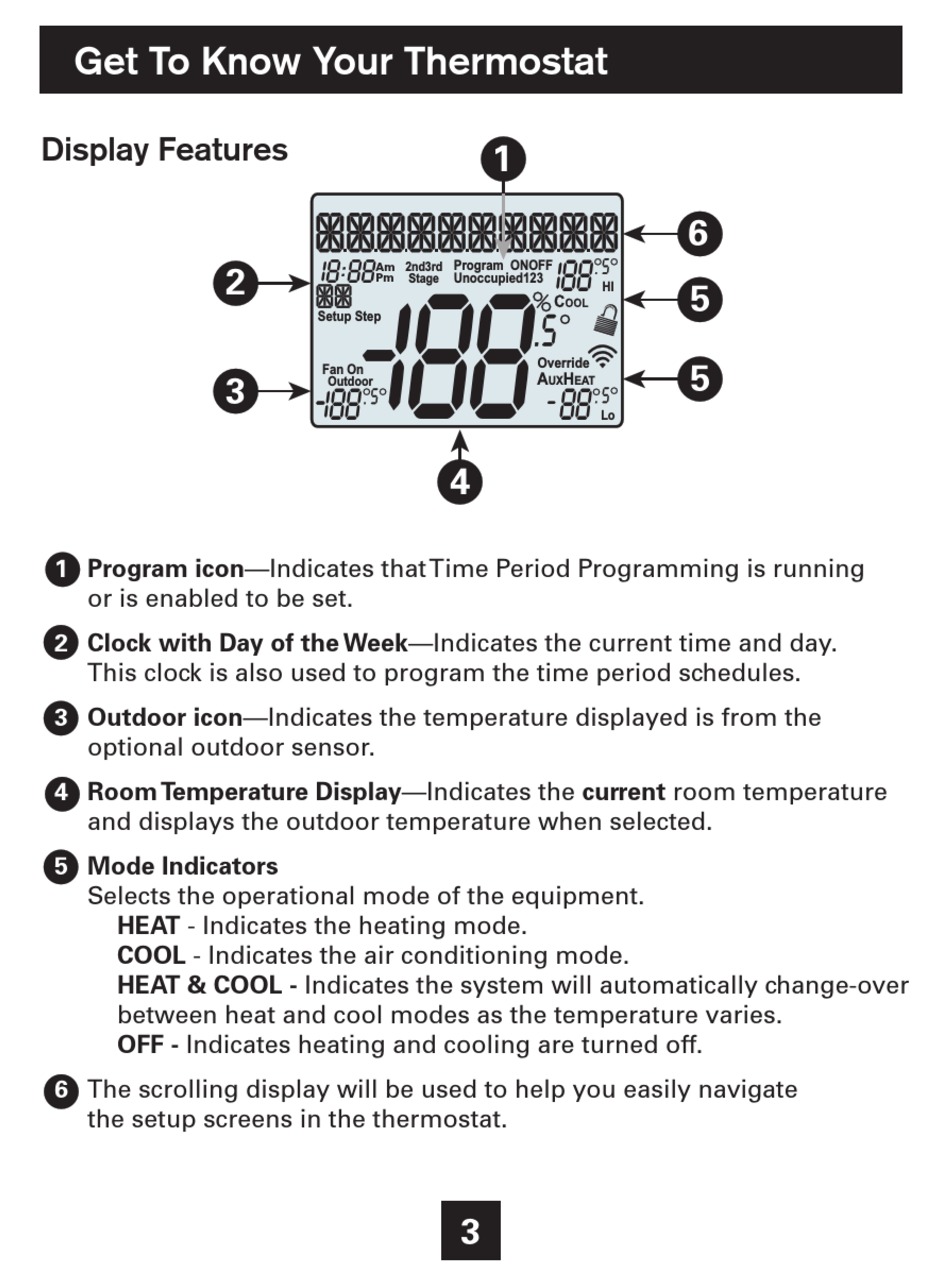

Display Features
1
Program icon—Indicates that Time Period Programming is running
or is enabled to be set.
2
Clock with Day of the Week—Indicates the current time and day.
This clock is also used to program the time period schedules.
3
Outdoor icon—Indicates the temperature displayed is from the
optional outdoor sensor.
4
Room Temperature Display—Indicates the current room temperature
and displays the outdoor temperature when selected.
5
Mode Indicators
Selects the operational mode of the equipment.
HEAT - Indicates the heating mode.
COOL - Indicates the air conditioning mode.
HEAT & COOL - Indicates the system will automatically change-over
between heat and cool modes as the temperature varies.
OFF - Indicates heating and cooling are turned off.
6
The scrolling display will be used to help you easily navigate
the setup screens in the thermostat.
2
18:88
Am
Pm
188
Setup Step
Fan On
3
Outdoor
188
1
Program
ONOFF
2nd3rd
188
Unoccupied123
Stage
Override
A
H
UX
EAT
88
4
3
6
5
HI
5
Lo
