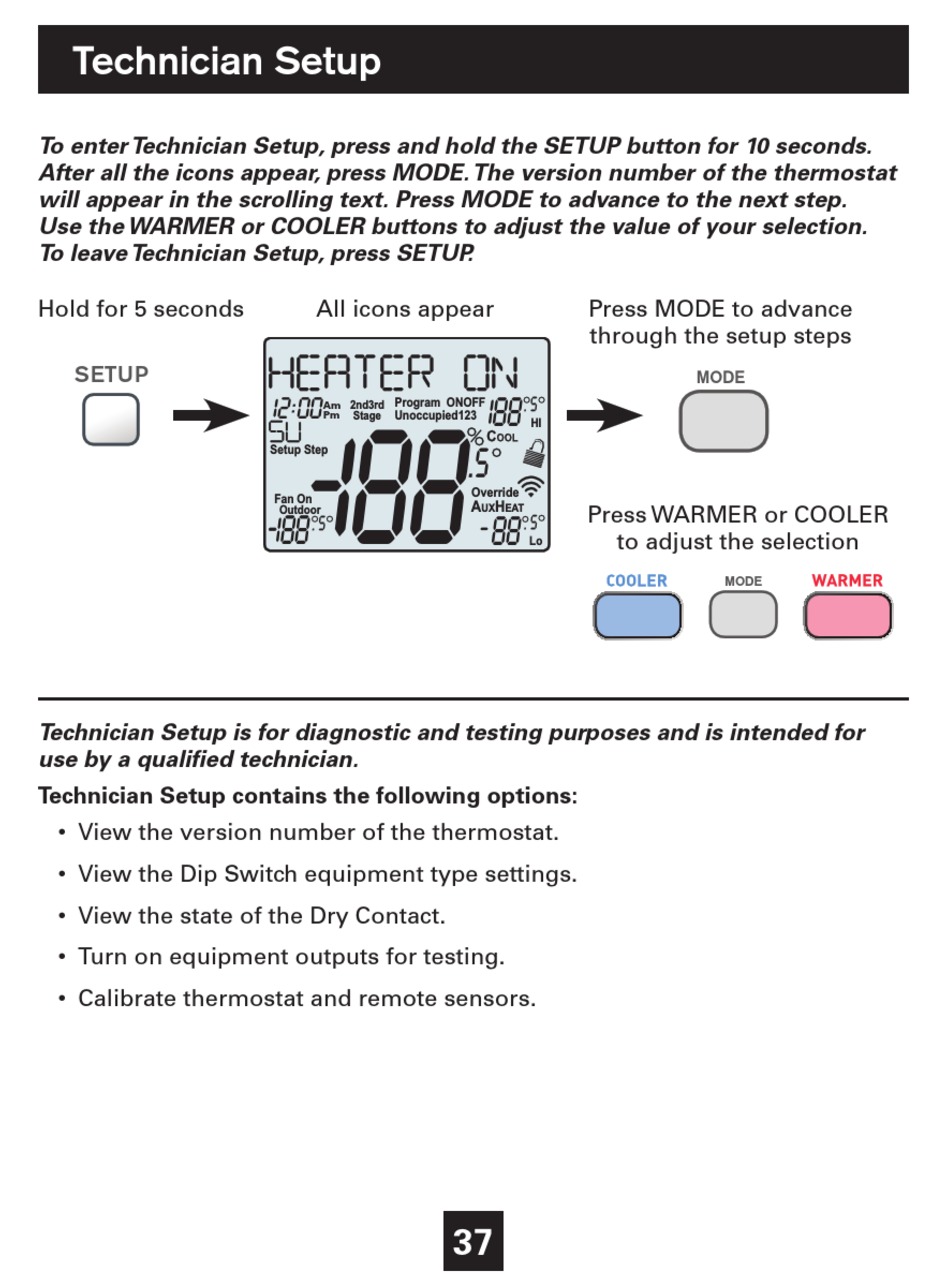

Technician Setup

To enter Technician Setup, press and hold the SETUP button for 10 seconds.
After all the icons appear, press MODE. The version number of the thermostat
will appear in the scrolling text. Press MODE to advance to the next step.
Use the WARMER or COOLER buttons to adjust the value of your selection.
To leave Technician Setup, press SETUP .
Hold for 5 seconds
SETUP
Set
Clock
Technician Setup is for diagnostic and testing purposes and is intended for
use by a qualified technician.
Technician Setup contains the following options:
• View the version number of the thermostat.
• View the Dip Switch equipment type settings.
• View the state of the Dry Contact.
• Turn on equipment outputs for testing.
• Calibrate thermostat and remote sensors.
All icons appear
Program
2nd3rd
12:00
Am
Unoccupied123
Stage
Pm
188
Setup Step
Fan On
Outdoor
188
Press MODE to advance
through the setup steps
ONOFF
188
HI
Override
A H
Press WARMER or COOLER
UX EAT
88
to adjust the selection
Lo
Set Set
Clock Clock
37
