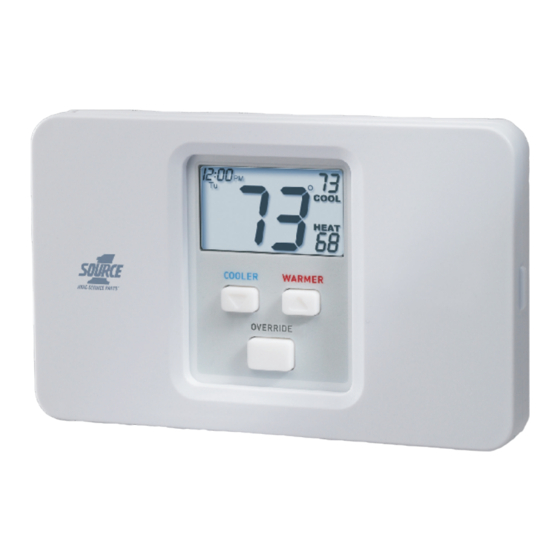

Source 1 S1-THEM22P7S Owner's Manual

Commercial series heat/cool & heat pump 7-day programmable
Hide thumbs
Table of Contents

Advertisement

Quick Links

Enlarged version
Owner 's Manual
Owner 's Manual
HVAC SERVICE PARTS
Heat/Cool & Heat Pump
Heat/Cool & Heat Pump
7-Day Programmable
7-Day Programmable
• Stages: 2-Heat, 2-Cool
• Backlit Digital Display
• Aux Heat Indicator
• System Powered
• Fahrenheit or Celsius
BACKLIT
TM
Digital
Digital
Thermostat
Thermostat
• Auto-Changeover
•
Clock Backup in the Event
of Power Failure
•
Up to 4 Hour Override
• Keypad Lockout
Model
S1-THEM22P7S
COMMERCIAL
DISPLAY
Use with most
Heat Pump Systems:
2-Heat, 2-Cool

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S1-THEM22P7S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Source 1 S1-THEM22P7S

Summary of Contents for Source 1 S1-THEM22P7S

  • Page 1 Owner ’s Manual Owner ’s Manual Model S1-THEM22P7S COMMERCIAL BACKLIT DISPLAY HVAC SERVICE PARTS Use with most Digital Heat Pump Systems: Digital 2-Heat, 2-Cool Heat/Cool & Heat Pump Heat/Cool & Heat Pump Thermostat Thermostat 7-Day Programmable 7-Day Programmable • Stages: 2-Heat, 2-Cool •...

  • Page 2: Table Of Contents

    OWNER'S MANUAL S1-THEM22P7S Contents Page # Page # Safety Warnings Location of Controls Display Normal Operation Manual Operation Programmed Operation Clock Set Time Period Programming Overview Daily Programming Copying the Program Overriding the Program Advanced Setup Advanced Features Factory Defaults...

  • Page 3: Safety Warnings Page

    OWNER'S MANUAL S1-THEM22P7S Safety Warnings P/N S1-THEM22P7S Follow Installation Instructions carefully. CAUTION DISCONNECT POWER TO THE HEATER - AIR CONDITIONER BEFORE REMOVING THE OLD THERMOSTAT AND INSTALLING WARNING THE NEW THERMOSTAT. This device complies with Part 15 of the FCC rules.

  • Page 4: Location Of Controls

    OWNER'S MANUAL S1-THEM22P7S Location of Controls PROGRAM BUTTON Program OFF COOLER & RUN program WARMER BUTTONS SET program NEXT PROGRAM BUTTON NEXT MODE COOL HEAT AUTO MODE BUTTON OVERRIDE BUTTON Page 4...

  • Page 5: Display

    OWNER'S MANUAL S1-THEM22P7S Display Unoccupied123 MTuWThF SaSu COOL Start Stop Over HEAT Ride Auto Mode Indicators - HEAT - Indicates the heating mode. When heating is is energized the Heat indicator will flash. COOL - Indicates the cooling mode. When cooling is is energized the Cool indicator will flash.
  • Page 6 OWNER'S MANUAL S1-THEM22P7S Display Unoccupied123 MTuWThF SaSu COOL Start Stop Over HEAT Ride Auto Current room temperature. Appears when programming Occupied 1, 2, or 3 start and stop times. Indicates the fan will run continuously. Indicates the program is currently being overriden for up to four hours (see page 14).

  • Page 7: Normal Operation

    OWNER'S MANUAL S1-THEM22P7S Normal Operation PROGRAM BUTTON Program OFF COOLER & WARMER BUTTONS RUN program SET program NEXT PROGRAM BUTTON NEXT MODE COOL HEAT AUTO MODE OVERRIDE BUTTON BUTTON Manual Operation (Program set to OFF) Select Heat, Cool, or Heat & Cool with the MODE button.

  • Page 8: Programmed Operation

    OWNER'S MANUAL S1-THEM22P7S Normal Operation PROGRAM BUTTON COOLER & WARMER Program OFF BUTTONS RUN program SET program NEXT PROGRAM BUTTON NEXT MODE COOL HEAT AUTO OVERRIDE BUTTON MODE BUTTON Programmed Operation (Program set to RUN) Select Heat, Cool, or Heat & Cool with the MODE button.

  • Page 9: Clock Set

    OWNER'S MANUAL S1-THEM22P7S Clock Set Press the PROGRAM button to enter the PROGRAM clock and day setup screens. Use these buttons to adjust the current time. Press NEXT to advance To slew the time more rapidly, push and hold the COOLER or NEXT WARMER buttons.

  • Page 10: Time Period Programming

    OWNER'S MANUAL S1-THEM22P7S Time Period Programming Overview PROGRAM BUTTON PROGRAM Press the PROGRAM button to enter the time period programming screens. The blinking icon(s) on the display may be changed by pressing the COOLER or WARMER button. After the blinking icon is changed to the desired selection, press the NEXT button.
  • Page 11 OWNER'S MANUAL S1-THEM22P7S Time Period Programming Press the PROGRAM button to enter the time PROGRAM period programming screens. Press the NEXT button to advance past the Clock and Day setup screens (page 9). Use these buttons to select Press NEXT...
  • Page 12 OWNER'S MANUAL S1-THEM22P7S Time Period Programming Press NEXT Unoccupied to advance Use these buttons to adjust COOL the cool setpoint for Unocc- NEXT upied. HEAT Press NEXT Use these buttons to s elect occupied1 to advance the day you would like to...

  • Page 13: Copying The Program

    OWNER'S MANUAL S1-THEM22P7S Time Period Programming Copying the Program The copy command becomes available after the maximum # of occupied periods are programmed in a day. This example uses only one occupied period. Select Yes to copy the previous day’s...

  • Page 14: Overriding The Program

    OWNER'S MANUAL S1-THEM22P7S Time Period Programming After you have completed setting the time PROGRAM period programming, you have two options: 1) Run the time period program by pressing the PROGRAM button two times. 2) Do not run the time period program by PROGRAM pressing the PROGRAM button one time.

  • Page 15: Advanced Setup

    OWNER'S MANUAL S1-THEM22P7S Advanced Setup This is normally done by the installer at initial installation. Press the PROGRAM button to enter the Advanced Setup. When the clock is flashing, press the NEXT button for 5 seconds. Do not release the button until this screen appears.
  • Page 16 OWNER'S MANUAL S1-THEM22P7S Use these buttons to Press NEXT adjust the Cycles Per Hour to advance from 2 to 6. NEXT d=no limit (zoning) d1=d+no compressor lockout (page 17). Press NEXT to advance Use these buttons to select thermostat operation in NEXT degrees F or C.
  • Page 17 OWNER'S MANUAL S1-THEM22P7S About Advanced Features & Operation CYCLES PER HOUR - The Cycles Per Hour setting (page 16) monitors the number of times per hour your HVAC unit may energize. For example, at a setting of 6 cycles per hour the HVAC unit will only be allowed to energize once every 10 minutes.
  • Page 18 OWNER'S MANUAL S1-THEM22P7S About Advanced Features & Operation ENERGY SAVING SMART FAN - This feature allows the fan to run continuo- usly during Occupied 1, 2 or 3 and automatically de-energize during Unocc- upied, except when necessary to heat or cool. To use this feature, place the thermostat in the Program On mode.

  • Page 19: Factory Defaults

    OWNER'S MANUAL S1-THEM22P7S CAUTION Factory Defaults If, for any reason, you desire to return all the stored settings back to the factory default settings, follow the instructions below. Press the PROGRAM button to enter the Advanced Setup. When the clock is flashing, press the NEXT button for 5 seconds.

  • Page 20: Calibration

    OWNER'S MANUAL S1-THEM22P7S CAUTION Calibration Under normal circumstances it will not be necessary to adjust the calibration of the temperature sensor. If calibration is required, please contact a trained HVAC technician to correctly perform the following procedure. Press the PROGRAM button to enter the Advanced Setup.

  • Page 21: Warranty

    OWNER'S MANUAL S1-THEM22P7S Warranty One-Year Warranty - This Product is warranted to be free from defects in material and workmanship. If it appears within one year from the date of original installation, whether or not actual use begins on that date, that the product does not meet this warranty, a new or remanufactured part, at the manufacturer’s sole option to replace any defective part, will be...
  • Page 22 Programming Worksheet see Page 10 DAY PERIOD START TIME COOL HEAT Unoccupied Occupied 1 Occupied 2 Occupied 3 Unoccupied Copy Mon Occupied 1 Occupied 2 Occupied 3 Unoccupied Copy Tue Occupied 1 Occupied 2 Occupied 3 Unoccupied Copy Wed Occupied 1 Occupied 2 Occupied 3 Unoccupied...
