Main Features

7 This effects unit analyzes the dynamics of your guitar picking,
so it can provide a wah effect faithful to the picking.
7 Whether you're playing a guitar or bass, the new SENS control
feature lets you get just the right wah sound.
7 Five modes—UP, DOWN, SHARP, HUMANIZER, and TEMPO—let
you use the wah sound in a variety of ways.
7 Separate guitar and bass guitar input jacks let you make
settings especially for guitars when you are playing a guitar,
and bass settings if it's a bass you're playing.
7 Also included is a feature that lets you input the Auto Wah
tempo with the AW-3's pedal.
7 Equipped with Expression/Control jack.
You can connect a foot switch made by Roland/BOSS and use
it to control the tempo of auto wah, or connect an expression
pedal and use it to expressively control the pedal wah or
humanizer.
2

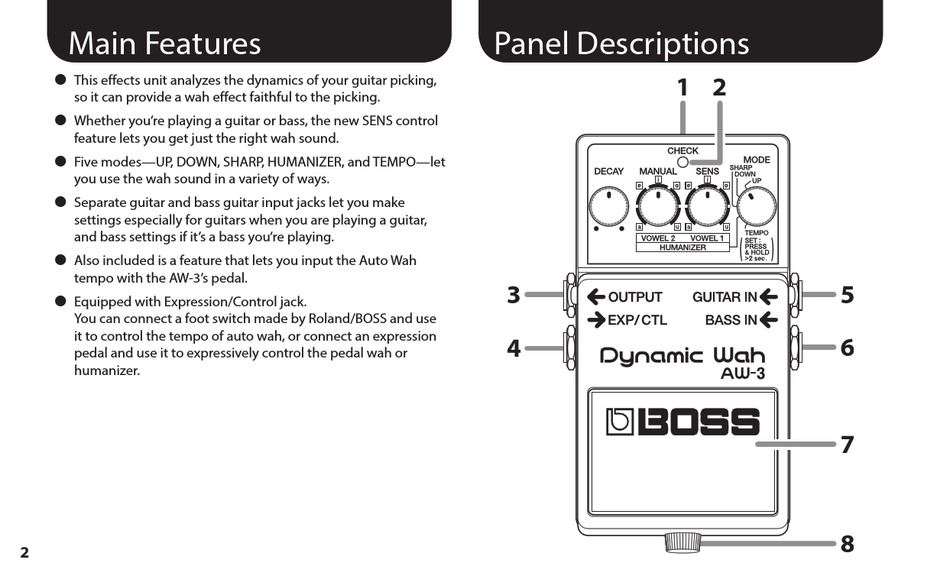

Panel Descriptions

3
4
1 2
5
6
7
8
