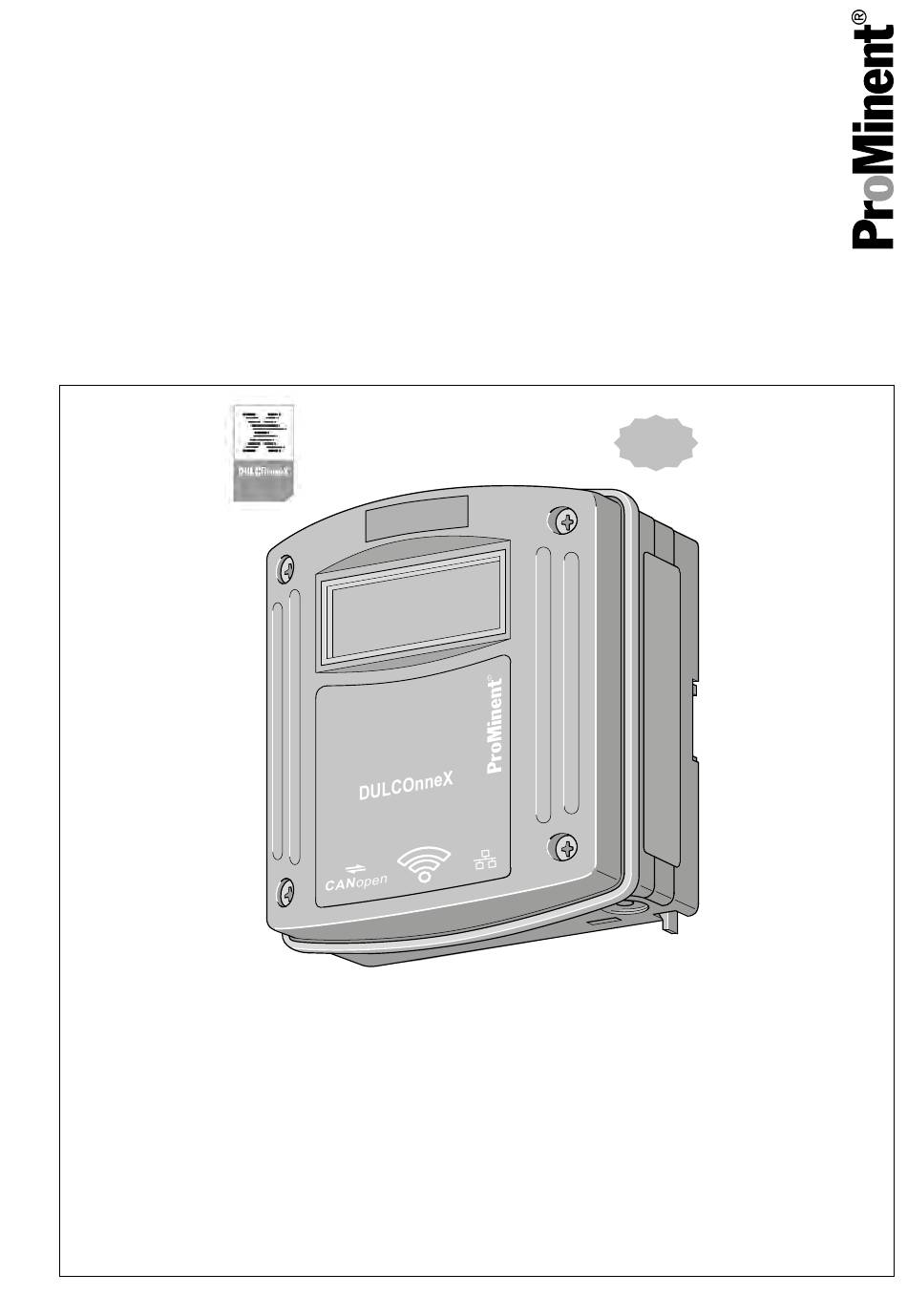

Installation and operating instructions
DULCOnneX gateway
for compatible ProMinent
These operating instructions are only
valid in conjunction with the operating
instructions for the ProMinent
to be controlled.
Please carefully read these operating instructions before use. · Do not discard.
The operator shall be liable for any damage caused by installation or operating errors.
The latest version of the operating instructions are available on our homepage.
981828
Ethernet controllers
®
device
®
WiFi
P PM 0038 SW
BA PM 019 12/19 EN
EN
Advertisement
Table of Contents
Related Manuals for ProMinent DULCOnneX
Summary of Contents for ProMinent DULCOnneX
- Page 1 ® WiFi P PM 0038 SW These operating instructions are only valid in conjunction with the operating instructions for the ProMinent device ® to be controlled. Please carefully read these operating instructions before use. · Do not discard. The operator shall be liable for any damage caused by installation or operating errors.
-
Page 2: Table Of Contents
Safety............................4 Storage and Transport......................6 Assembly..........................7 Wall-mounting........................ 7 Pipe Assembly........................ 8 Installation, electrical......................10 Commissioning of a controller with Ethernet connector on the DULCOnneX gateway..11 Troubleshooting........................14 Faults, particular......................14 7.1.1 Checklist of requirements..................14 7.1.2 Explanations for a better understanding of the "DULCOnneX gateway"....16 7.1.3... -
Page 3: About This Unit
(PC, laptop, ...) via Wi-Fi or LAN. This enables CAN controllers, which have been connected to the “DULCOnneX gateway” and that have been equipped by ProMinent for this purpose, to be largely controlled and monitored by a smart device or desktop computer. -
Page 4: Safety
Safety Safety Intended use CAUTION! Only use the unit to monitor ProMinent ® controllers in accordance with the oper‐ Danger from hackers ating instructions. The user must guarantee the IT Only use the unit once it has been cor‐ security of his smart device (smart‐... - Page 5 ProMinent head office. Emissions WARNING! The “DULCOnneX gateway” is not designed for applications in which inter‐ ference from or by the “DULCOnneX gateway” can lead to fatal injury, serious personal injury or serious mate‐ rial damage. WARNING! The Wi-Fi unit can cause interference to or even destroy radio and television frequencies.
-
Page 6: Storage And Transport
Storage and Transport Storage and Transport CAUTION! Protect the module from moisture and the effects of chemicals, even when still packaged! Store and transport the module it its original packaging. Ambient conditions for storage and transporta‐ tion: Temperature: -20 °C ... +60 °C Max. -
Page 7: Assembly
Assembly Assembly CAUTION! There needs to be Wi-Fi reception at the intended site of the "DULCOnneX gateway". The unit is suitable for mounting on a wall or a pipe. Tab. 1: Mounting materials (contained in the scope of delivery): Description... -
Page 8: Pipe Assembly
Assembly Pipe Assembly Assembly (mechanical) Pipe diameter Pipe diameter: 25 mm to 60 mm. A0274 Fig. 2: Screw the wall/tube retaining bracket in place with washers Screw the wall/tube retaining bracket in place with washers Suspend the device on the top of the wall/tube retaining bracket and, using light pressure at the bottom, press it against the wall/tube retaining bracket. - Page 9 Assembly A0275 Fig. 4: Suspending the device and fixing into place Suspend the device (1) on the top of the wall/tube retaining bracket and, using light pressure at the bottom (2), press it against the wall/tube retaining bracket. Then press upwards (3) until the device audibly snaps into position...
-
Page 10: Installation, Electrical
Otherwise the intended degree of protection will not be ach‐ ieved. Requirements: The DULCOnneX units have an Ethernet connector The DULCOnneX units can be con‐ nected to your Ethernet installation. Prepare the sockets for the controllers and the “DULCOnneX gateway”... -
Page 11: Commissioning Of A Controller With Ethernet Connector On The Dulconnex Gateway
Commissioning of a controller with Ethernet connector on the DULCOnneX gateway Commissioning of a controller with Ethernet connector on the DULCOnneX gateway The following is needed: Setting up the "DULCOnneX gateway" Connect the "DULCOnneX gateway" to "DULCOnneX gateway" the mains voltage. - Page 12 Commissioning of a controller with Ethernet connector on the DULCOnneX gateway Setting up an account DULCOnneX Settings WiFi Server Information (Only if no account already exists.) WiFi Settings: Region (0,1,2): To create an account on the "DUL‐ SSID: YOUR_SSID COnneX platform"...
- Page 13 Commissioning of a controller with Ethernet connector on the DULCOnneX gateway Debugging tip DULCOnneX Settings WiFi Server Information Status Information: Serial numbers of connected devices: 388889123; 452367899; 837465621; P PM 0041 SW Fig. 7 You can use this page to check which devices have been detected by the system by means of their serial numbers.
-
Page 14: Troubleshooting
Increase the gap between the devices and fering with the Wi-Fi con‐ the "DULCOnneX gateway". nection to the "DUL‐ COnneX gateway". * Confirm or cancel this by switching the "DULCOnneX gateway" on and off. Faults, particular 7.1.1 Checklist of requirements a) General information... - Page 15 The Wi-Fi SSID has fewer than 32 digits.@ c) Devices Check point The part no. of the "DULCOnneX gateway" matches the device / devices, which is / are to be connected: Devices, which are to be connected: Part no. "DULCOnneX gateway"...
-
Page 16: Explanations For A Better Understanding Of The "Dulconnex Gateway
The customer’s Wi-Fi to which the "DULCOnneX gateway" is connected. Configuration Wi-Fi The Wi-Fi of the "DULCOnneX gateway", with which you can connect to set up the "DULCOnneX gateway". The "DULCOnneX gateway" acts like an access point if this Wi-Fi is present. -
Page 17: Potential Problems When Starting Up
Only a few setting options (e.g. you are not free to select the channel). Has an integrated battery; so the router doesn’t automatically switch off and on once connected to or separated from the power supply. Netgear Aircard Not recommended for use with our "DULCOnneX gateways". 790. - Page 18 None of the routers have IP protection; so consider fitting into a housing. – If you experience any problems with your router, please let us know - we could produce – a "black list".@ Debugging tip DULCOnneX Settings WiFi Server Information Status Information: Serial numbers of connected devices: 388889123;...
-
Page 19: Maintenance, Repair And Disposal
Maintenance, Repair and Disposal Maintenance, Repair and Disposal Maintenance Sign indicating EU collection system CAUTION! Warning of faulty operation No moisture may penetrate the housing. – Check the housing for damage. – Check that the seals are properly fitted. CAUTION! The surfaces may be damaged Do not under any circumstances use solvent to clean the surfaces. -
Page 20: Technical Data
Technical data Technical data Ambient conditions Ambient conditions for storage and transporta‐ tion: Temperature: -20 °C ... +60 °C Max. permissible relative humidity (DIN EN 60068-2-30): 95%, non-condensing UV radiation, sunlight: do not directly expose the unit Degree of protection Protection against contact and moisture in accordance with IEC 529, EN 60529, DIN VDE 0470 Part 1:... -
Page 21: Excerpt From The Declaration Of Conformity
Designation of DULCOnneX gateway the product: Product type: DULCOnneX gateway AGIb DULCOnneX gateway DACb DULCOnneX gateway DLT, GMX, GXL DULCOnneX gateway DF4, GMX, SXCb DULCOnneX gateway GMX, SXCb, UVCb Serial number: see nameplate on the device Relevant direc‐ Low Voltage Directive (2014/35/EU) - Page 22 Excerpt from the Declaration of Conformity You can download the Declaration of Conformity at www.prominent.com.
