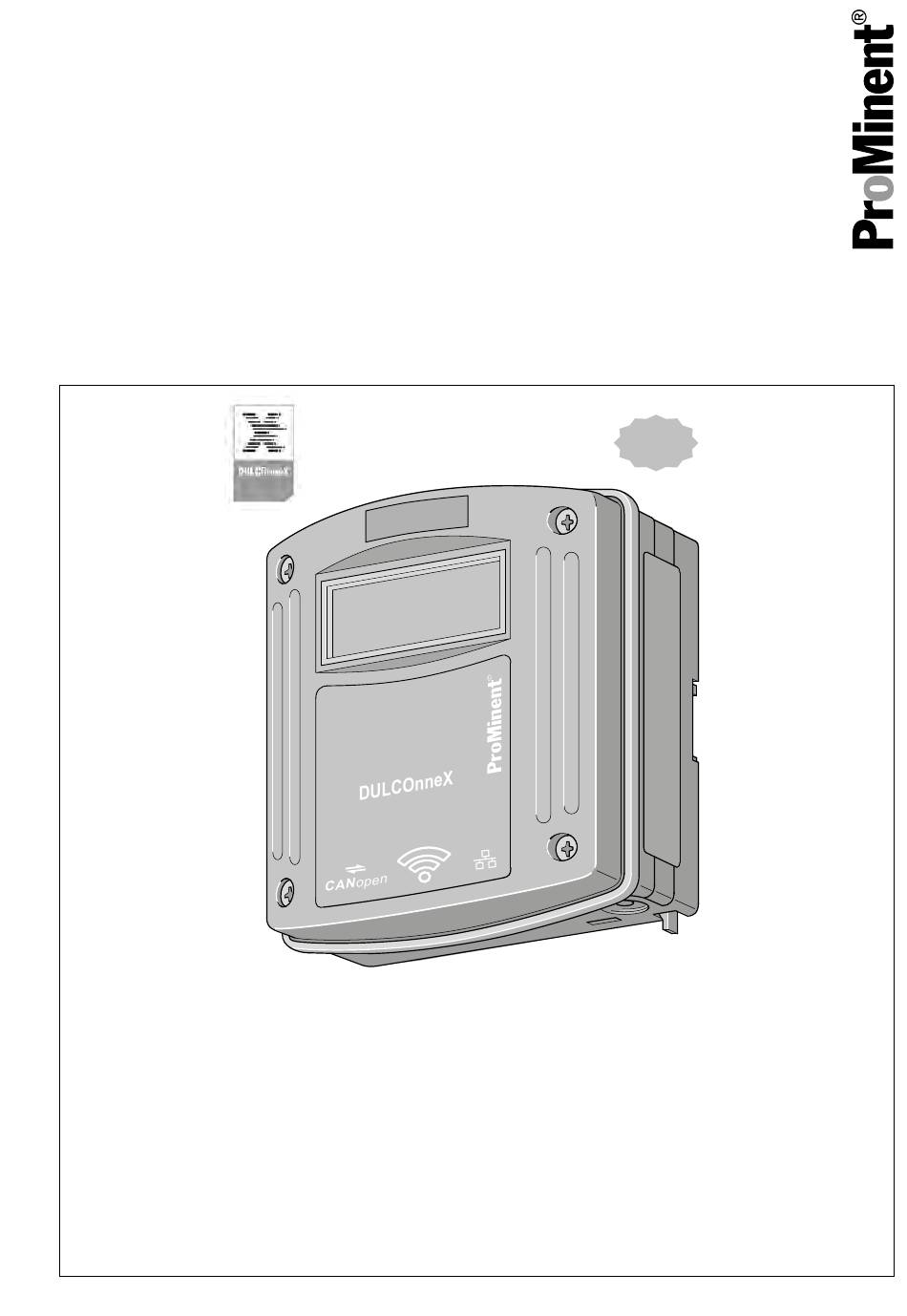

Installation and operating instructions
DULCOnneX gateway
for compatible ProMinent
UVCb
These operating instructions are only
valid in conjunction with the operating
instructions for the ProMinent
be controlled.
Please carefully read these operating instructions before use. · Do not discard.
The operator shall be liable for any damage caused by installation or operating errors.
The latest version of the operating instructions are available on our homepage.
981854
CAN pumps and
®
unit to
®
WiFi
P PM 0038 SW
BA PM 016 06/19 EN
EN
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ProMinent DULCOnneX
Summary of Contents for ProMinent DULCOnneX
- Page 1 UVCb WiFi P PM 0038 SW These operating instructions are only valid in conjunction with the operating instructions for the ProMinent unit to ® be controlled. Please carefully read these operating instructions before use. · Do not discard. The operator shall be liable for any damage caused by installation or operating errors.
-
Page 2: Table Of Contents
Storage and Transport......................6 Assembly..........................7 Wall-mounting........................ 7 Pipe Assembly........................ 8 Installation, electrical......................10 Commissioning of pumps / units with CAN connector on the DULCOnneX gateway... 11 Troubleshooting........................14 Maintenance, Repair and Disposal..................15 Maintenance......................... 15 Repairs......................... 15 Disposal........................15 Technical data........................ -
Page 3: About This Unit
(PC, laptop, ...) via Wi-Fi or LAN. This enables CAN pumps and/or UV systems UVCb, which have been connected to the “DULCOnneX gateway” and that have been equipped by ProMinent for this purpose, to be largely controlled and monitored by a smart device or desktop computer. -
Page 4: Safety
Safety Safety Intended use CAUTION! Only use the unit to monitor ProMinent ® units in accordance with the operating Danger from hackers instructions. The user must guarantee the IT Only use the unit once it has been cor‐ security of his smart device (smart‐... - Page 5 ProMinent head office. Emissions WARNING! The “DULCOnneX gateway” is not designed for applications in which inter‐ ference from or by the “DULCOnneX gateway” can lead to fatal injury, serious personal injury or serious mate‐ rial damage. WARNING! The Wi-Fi unit can cause interference to or even destroy radio and television frequencies.
-
Page 6: Storage And Transport
Storage and Transport Storage and Transport CAUTION! Protect the module from moisture and the effects of chemicals, even when still packaged! Store and transport the module it its original packaging. Ambient conditions for storage and transporta‐ tion: Temperature: -20 °C ... +60 °C Max. -
Page 7: Assembly
Assembly Assembly CAUTION! There needs to be Wi-Fi reception at the intended site of the "DULCOnneX gateway". The unit is suitable for mounting on a wall or a pipe. Tab. 1: Mounting materials (contained in the scope of delivery): Description... -
Page 8: Pipe Assembly
Assembly Pipe Assembly Assembly (mechanical) Pipe diameter Pipe diameter: 25 mm to 60 mm. A0274 Fig. 2: Screw the wall/tube retaining bracket in place with washers Screw the wall/tube retaining bracket in place with washers Suspend the device on the top of the wall/tube retaining bracket and, using light pressure at the bottom, press it against the wall/tube retaining bracket. - Page 9 Assembly A0275 Fig. 4: Suspending the device and fixing into place Suspend the device (1) on the top of the wall/tube retaining bracket and, using light pressure at the bottom (2), press it against the wall/tube retaining bracket. Then press upwards (3) until the device audibly snaps into position...
-
Page 10: Installation, Electrical
Installation, electrical Installation, electrical Requirements: The DULCOnneX units have a CAN con‐ CAUTION! nector Malfunction from interference-prone The DULCOnneX units can be con‐ cables nected to your CAN installation. Do not route the signal leads of the unit alongside interference-prone cabling. -
Page 11: Commissioning Of Pumps / Units With Can Connector On The Dulconnex Gateway
Commissioning of pumps / units with CAN connector on the DULCOnneX gateway Commissioning of pumps / units with CAN connector on the DULCOnneX gateway Connection The DULCOnneX units can be con‐ Maximum number of pumps / nected to your CAN installation. - Page 12 Commissioning of pumps / units with CAN connector on the DULCOnneX gateway Setting up the pump / unit Connect pump / unit no. 1 to the mains voltage. At a later stage, additional units If available: Check in the menu for can be integrated via the "DUL‐...
- Page 13 Commissioning of pumps / units with CAN connector on the DULCOnneX gateway Setting up DULCOnneX Add the pump / unit to the account Connect the "DULCOnneX gateway" to Requirement: the mains voltage. The controller / unit have been fully set up.
-
Page 14: Troubleshooting
Call in a high-frequency engineer. Other units are interfering Increase the gap between the units and with the Wi-Fi connection the DULCOnneX gateway. to the DULCOnneX gateway. * Confirm or cancel this by switching the DULCOnneX gateway on and off. -
Page 15: Maintenance, Repair And Disposal
Maintenance, Repair and Disposal Maintenance, Repair and Disposal Maintenance Sign indicating EU collection system CAUTION! Warning of faulty operation No moisture may penetrate the housing. – Check the housing for damage. – Check that the seals are properly fitted. CAUTION! The surfaces may be damaged Do not under any circumstances use solvent to clean the surfaces. -
Page 16: Technical Data
Technical data Technical data Ambient conditions Ambient conditions for storage and transporta‐ tion: Temperature: -20 °C ... +60 °C Max. permissible relative humidity (DIN EN 60068-2-30): 95%, non-condensing UV radiation, sunlight: do not directly expose the unit Degree of protection Protection against contact and moisture in accordance with IEC 529, EN 60529, DIN VDE 0470 Part 1:... -
Page 17: Excerpt From The Declaration Of Conformity
Designation of DULCOnneX gateway the product: Product type: DULCOnneX gateway AGIb DULCOnneX gateway DACb DULCOnneX gateway DLT, GMX, GXL DULCOnneX gateway DF4, GMX, SXCb DULCOnneX gateway GMX, SXCb, UVCb Serial number: see nameplate on the device Relevant direc‐ Low Voltage Directive (2014/35/EU) - Page 18 Excerpt from the Declaration of Conformity You can download the Declaration of Conformity at www.prominent.com.
- Page 20 ProMinent GmbH Im Schuhmachergewann 5-11 69123 Heidelberg Germany Telephone: +49 6221 842-0 Fax: +49 6221 842-419 Email: info@prominent.com Internet: www.prominent.com 981854, 2, en_GB © 2019...
