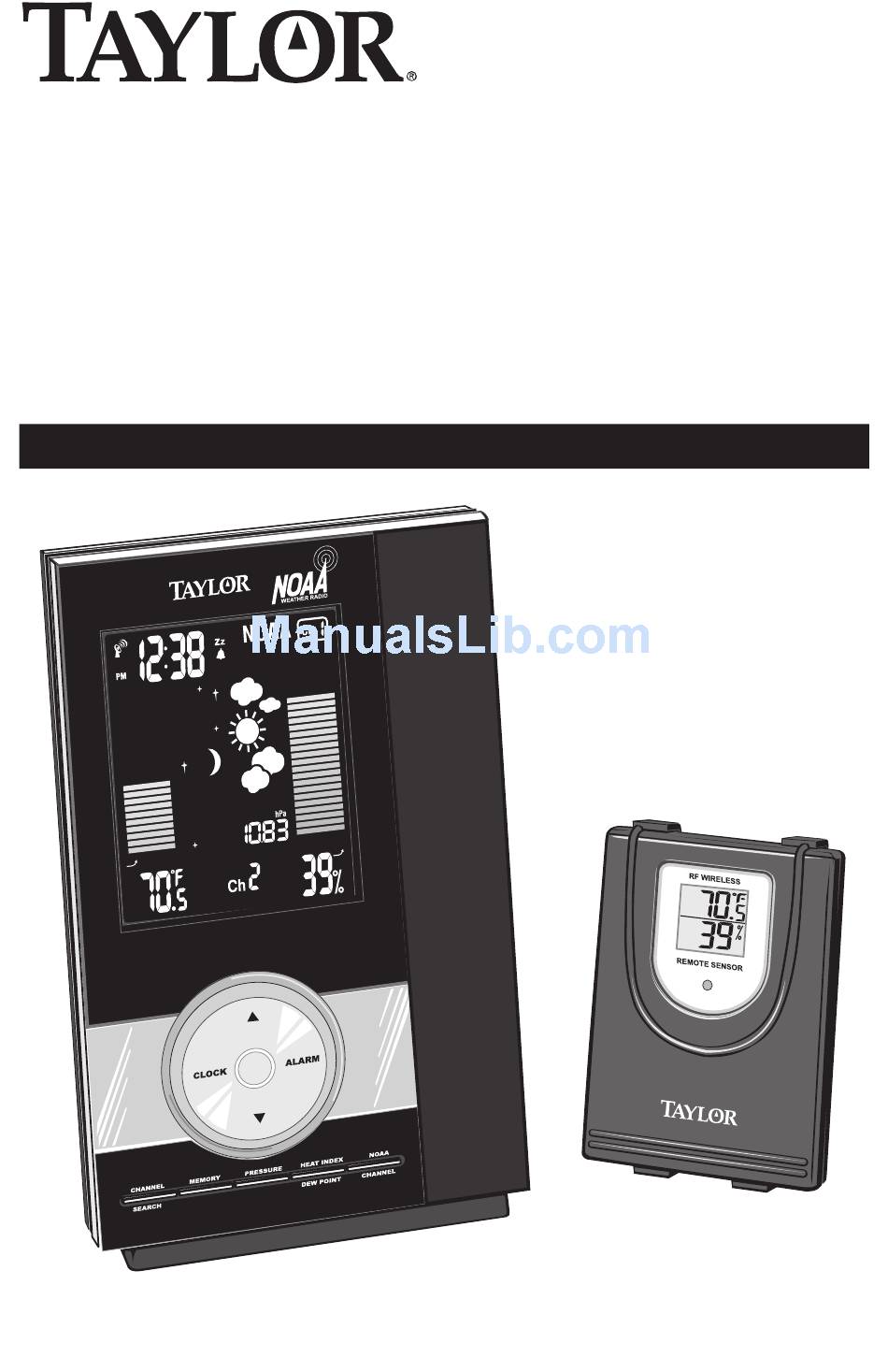

- Page 1 1507 Digital Wireless Weather System Thermometer & Hygrometer with NOAA Weather Radio and Remote Sensor Leading the Way in Accuracy® Instruction Manual...
-
Page 2: Description Of Parts
Thank you for purchasing the Taylor® Digital Wireless Weather System: Thermometer & Hygrometer with NOAA Weather Radio and Remote Sensor. This state-of-the art measurement instrument is engineered and designed to meet the highest quality standards…to assure you uncompromising accuracy and consistently dependable, convenient performance. - Page 3 Main Features & How to Access Functions 1 - LCD Readout: Line 1: Clock displays current time. Press “CLOCK” button on front of unit to toggle to month/date and day of the week. Press “ALARM” to view alarm time. If the weather radio is turned on, the “NOAA” icons appear on the right.
- Page 4 Main Features (continued) 10 - Multi-Function Button (Receiver Unit): 1) CLOCK Press to toggle between time, month/date and day of the week display. Press and hold 3 seconds to enter Clock & Calendar Setting mode. Buttons: Press to advance / reverse settings one step forward or backward.
- Page 5 Display Information (Receiver Unit) Current Time Display Antenna icon Zone icon Moon phase display Animated color bars display current conditions Max / Min icon Trend icon Current temperature at selected Heat index location low battery & dew point indicator icons (Remote Unit) battery indicator...
-
Page 6: Remote Sensor
How To Set Up Your Wireless Thermometer • Place the receiver unit as close as possible to the remote unit. This will ensure easy synchronization between the transmission and reception of signals as you set up your wireless thermometer. After set up is completed, position the receiver unit and remote unit within effective transmission range. - Page 7 (continued) Power Sources Note: Maximum of 3 remote sensor units can be registered. Should you purchase one or two additional remote units (Model 1438, sold separately) to expand your thermometer monitoring capabilities to multiple locations, slide the CH switch to Channel 2 to register the second sensor and select Channel 3 to register the third sensor.
-
Page 8: Radio-Controlled Clock
Follow the steps above to replace the batteries. A maximum of 3 remote sensor units can be registered. One remote sensor is included. To purchase additional Remote Sensors (Taylor model 1438), please call 1-877-858-0065 Monday-Friday 9am to 6pm CST or visit www.partshelf.com. Setting the Time & Alarm 1. -
Page 9: Clock And Calendar
(continued) Setting the Time & Alarm 3. Clock & Calendar Press “CLOCK” on the front of the unit to toggle between time, calendar and day of the week displays. The clock may be set to display in 12 or 24 hour format, and the calendar may be set to display in Month/Day or Day/Month format. -
Page 10: Indoor/Outdoor Temperature & Humidity
How to read temperature and other displays INDOOR/OUTDOOR TEMPERATURE & HUMIDITY 1. The current Temperature display is located at the lower left of the LCD screen. The Humidity display is on the lower right. 2. Press “C/F“ button inside the battery compartment of the receiver to select °F or °C temperature scale. -
Page 11: Maximum / Minimum Memory
How to read temperature and other displays TO PROGRAM ALTITUDE When first powered up, the receiver will automatically be in Altitude Setting mode for one minute. For this minute, the Barometric Pressure display will display “---“ and the 'hPa' icon will blink for one minute. To input the current Altitude during Automatic Altitude Setting mode: 1. - Page 12 How to read temperature and other displays In normal mode, press the “Heat Index/Dew Point” button on the front of the home receiver once. The “HEAT INDEX” icon will appear. The heat index will appear in the lower left display. Press the “CHANNEL”...
- Page 13 Color Bar Graphs The color graphs are designed as an intuitive way to gauge the weather at a glance. The left color bar graph represents the respective Indoor/Outdoor temperature, heat index or dew point of the current display mode. The right graph represents the respective Indoor/Outdoor humidity.
-
Page 14: Disconnected Signals
NOAA Weather Radio (continued) NOAA Standby mode: Stand by mode will mute the weather radio until an alert broadcast is received. While the radio is on, press “NOAA ON/OFF” once to enter NOAA standby mode. The “STANDBY” icon appears and the sound will mute. -
Page 15: Transmission Collision
Trouble-Shooting (continued) Transmission Collision Signals from other household devices, such as doorbells, home security systems and entry controls, may interfere. This is normal and does not affect the general performance of this product. The transmission will resume once the interference recedes. Precautions This Wireless Thermometer with Remote Sensor is engineered to give you years of satisfactory service if you handle it carefully, following... - Page 16 Made to our exact specifications in China. © 2006 Taylor Precision Products and its affiliated companies, all rights reserved. Taylor® and Leading the Way in Accuracy® are registered trademarks of Taylor Precision Products and its affiliated companies.
