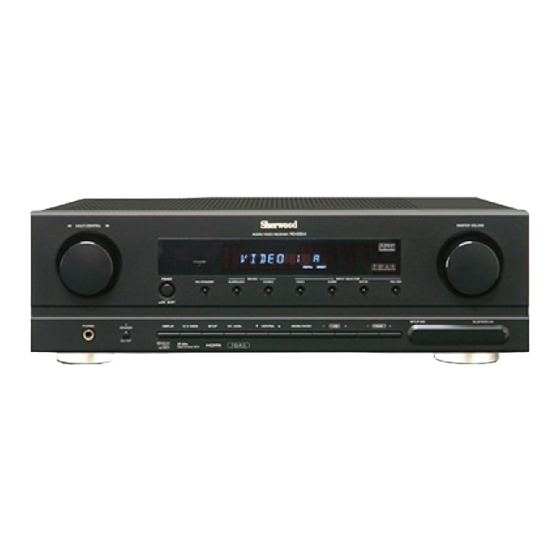

Sherwood RD-6504 Quick Start Manual

RD-6504(AG)-Quick:RD-6504(AG)-Quick 2009-02-12 오
• This guide shows you how to connect your speakers and DVD player and enjoy multi-channel surround sound.
• For full details on using this unit, refer to the main operating instructions.
• Please be certain that this unit is unplugged from the AC outlet before making any connections.
■ If you have 5.1 ch speakers
• Be sure to connect speakers firmly
and correctly according to the chan-
nel (left and right) and the polarity (+
and -). If the connections are faulty,
no sound will be heard from the
speakers, and if the polarity of the
speaker connection is incorrect, the
sound will be unnatural and lack
bass.
■ Caution
• Be sure to use the speakers with
the impedance of 6 ohms or above.
• Do not let the bare speaker wires
touch each other or any metal part
of this unit. This could damage this
unit and/or the speakers.
• Never touch the speaker terminals
while the AC input cord is connect-
ed to the wall AC outlet. Doing so
could result in electric shocks.
9:11 페이지 2
All manuals and user guides at all-guides.com

Placing Speakers

1. Front Left
2. Front Right
3. Center
4. Surround Left
5. Surround Right
6. Subwoofer

Connecting Speakers

1
