Summary of Contents for Ratio Electric HOME BOX PLUS

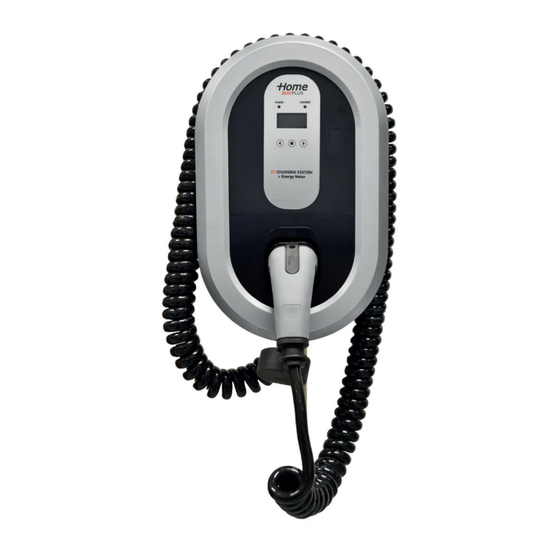

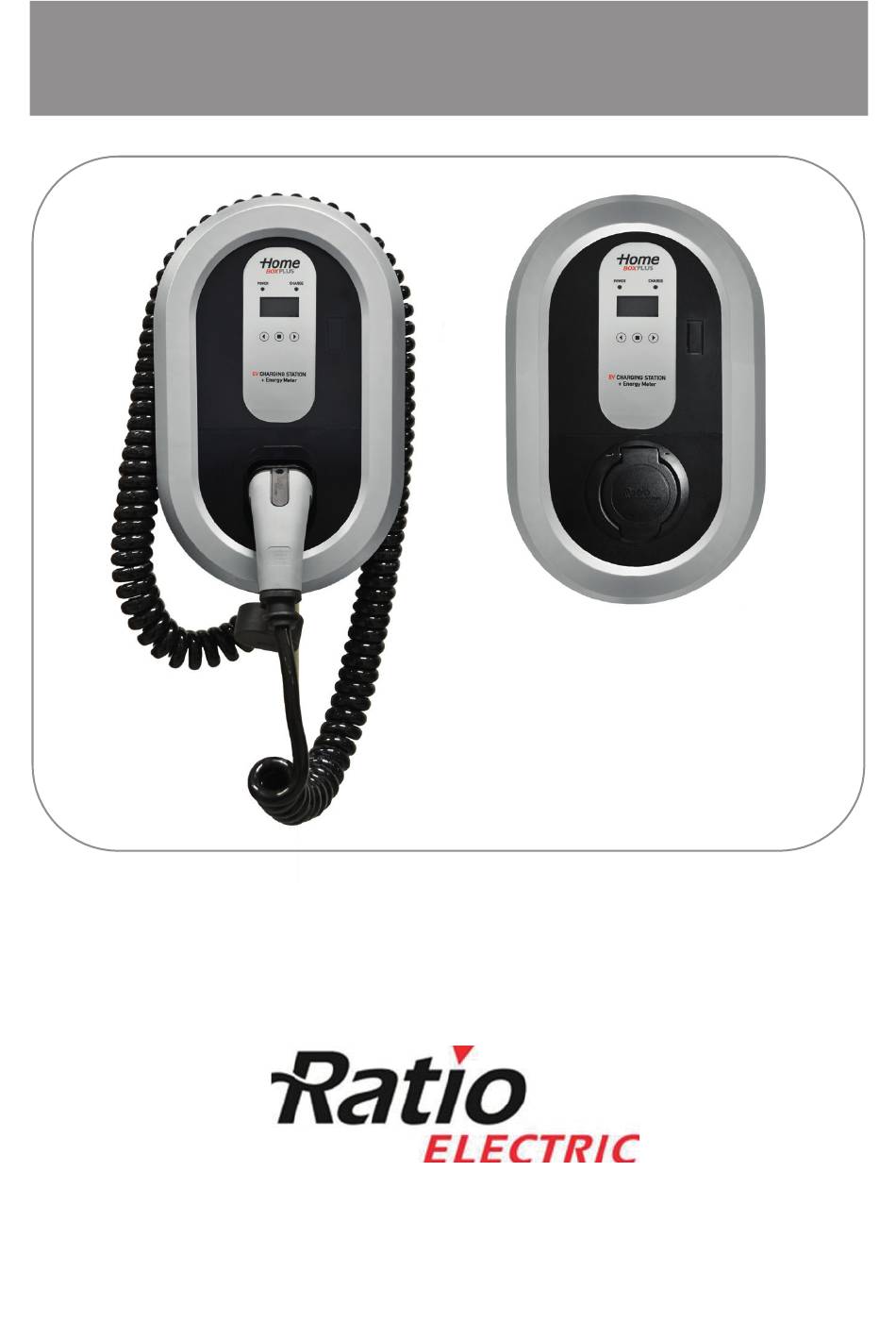

- Page 1 HOME BOX PLUS EV CHARGING STATION + ENERGY METER M a n u a l...
- Page 2 C O N T E N T S C O N T E N T S IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS SAFETY IFORMATION SAFETY INFORMATION INSTALLATION INSTALLATION OPERATION SETUP MENU FRONT PANEL DISPLAY 1 PHASE CHARGE STATION OPTIONS 3 PHASE CHARGE STATION SPECIFICATIONS SPECIFICATIONS MAINTENANCE...
-
Page 3: Safety Guidelines
Switch off the MCB in the electrical cabinet and contact your Service Representative for service immediately. Refer to the Customer Support section in the manual for information on the Service Representative in your area. HOME BOX PLUS / Version: EV045... - Page 4 S A F E T Y I N F O R M A T I O N Warning: When using electric products, basic precautions should always be followed, including the following: Read all the safety warnings and instructions before using the product. Failure to follow the warnings and the instructions may result in electric shock, fire and / or serious injury.
- Page 5 Use supplied M25 Use 4 wood screws M4,5x35mm to mount Charging Station on the wall. The Charging Station should be installed between 0,80m and 1,20m from bottom to the ground. HOME BOX PLUS / Version: EV045...
- Page 6 Connect in-coming power to the left terminal block. Single Phase : L1=Brown N= Blue Earth= Green/Yellow 3 Phase L1=Brown L2=Black L3=Grey N=Blue Earth=Green/Yellow Close bottom cover and carefully slide metallized cover over the Charge Station. IMPORTANT: OUTLET VERSION - before closing outlet cover, be sure the outlet is unlocked!
- Page 7 Use supplied M25 Use 4 wood screws M4,5x35mm to mount Charging Station on the wall. The Charging Station should be installed between 0,80m and 1,20m from bottom to the ground. HOME BOX PLUS / Version: EV045...
- Page 8 FIXED 16 Connect in-coming power to the left with this option you can set the charging current to 16A terminal block. Single Phase : L1=Brown FIXED 32 N= Blue with this option you can set the charging current to 32A Earth= Green/Yellow 3 Phase L1=Brown...
- Page 9 Use supplied M25 Use 4 wood screws M4,5x35mm to mount Charging Station on the wall. The Charging Station should be installed between 0,80m and 1,20m from bottom to the ground. HOME BOX PLUS / Version: EV045...
- Page 10 CHARGER ERROR In case of the charger error, you will see the CHARGER error screen with the error code. If multiple NOT READY errors occur the codes will alternate. By error message please contact Ratio Electric ERRCODE: ……. for support.
- Page 11 Use supplied M25 Use 4 wood screws M4,5x35mm to mount Charging Station on the wall. The Charging Station should be installed between 0,80m and 1,20m from bottom to the ground. HOME BOX PLUS / Version: EV045...
- Page 12 Close bottom cover and carefully slide metallized cover over the Charge Station. error screen with the error code. If multiple NOT READY errors occur the codes will alternate. By error massage please contact Ratio Electric ERRCODE: ……. for support. IMPORTANT:...
- Page 13 Clean the Home Box using a soft cloth lightly moistened with mild detergent solution. Never use any type of abrasive pad, scouring powder, or flammable solvents such as alcohol or benzene. HOME BOX PLUS / Version: EV045...
- Page 14 F C C I N F O R M A T I O N This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 15 W A R R A N T Y I N F O R M A T I O N HOME BOX PLUS / Version: EV045...
- Page 16 C O N T A C T / C U S T O M E R S U P P O R T Ratio Electric B.V. Ambachtsstraat 12 NL-3861 RH Nijkerk The Netherlands Tel. +31-33-2452360 info@ratio.nl www.ratio.nl HOME BOX PLUS / Version: EV045...
