- Page 1 BESANTEK BST-3PT5 PHASE ROTATION INDICATOR INSTRUCTION MANUAL 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com...
-
Page 2: Table Of Contents
Index Page 1. Safety Rules........2. Safety Check........3. General Description......4. Brief Product Description....5. Operating Instructions....... 6. Front Panel and LCD Layout..... 7. Principle of how it work...... 8. Preparation for use......9. Specifications........12-13 10. Limited Warranty........ 13-14... -
Page 3: Safety Rules
BESANTEK 1. Safety Rules & CAUTION RISK OF ELECTRIC SHOCK This tester has been designed with your safety in mind. However, no design can completely protect against incorrect use. Electrical circuits can be dangerous and/or lethal when lack of caution or poor safety practices are used. -
Page 4: Safety Check
BESANTEK Avoid bare hand to hand contact between the tester and extended test leads. When using the tester with test leads, ensure that they are safe and properly authorized. Disconnect the tester from any external circuit when checking or changing the Fuses. - Page 5 BESANTEK When replacing the fuse use only the type specified, HBC fuse, and insert correctly into the fuse holder. Always double check the lead connections before making measurements. This instruments has 2 internal fuses. For increased safety, use fused test leads (optional).
-
Page 6: General Description
BESANTEK 3. General Description This Test Instrument is a 3 Phases Presence and Rotation Indicator which display the results on a large "high contrast" Liquid Crystal Display. It does not need any battery as it derives it's power from the system under test. - Page 7 BESANTEK When utilized on a 3 Phases Powered System, this instrument is a rotary field indication instrument which display all three phases by showing up it's corresponding LCD Phase Presence Indicators (L and L • It display the rotation (clockwise or anti-clockwise) on the LCD.
- Page 8 BESANTEK • • You can confirm the Phase Rotation on a Powered 3 Phase System. (" '''\, ',,, ______ ___ L1 Missing L2 Missing L3 Missing No Rotation No Rotation No Rotation Indication Indication Indication • The corresponding Arrows and L L2 and L3 will clearly indicate the rotation of the phases .
-
Page 9: Brief Product Description

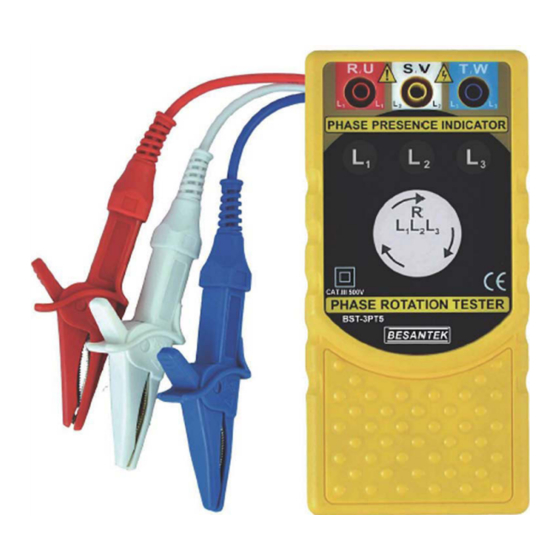

BESANTEK 4. Brief Product Description This 3 Phases Presence and Rotation Indicator has 3 test leads which connects to the 4 mm female sockets on the tester, on the one side. These Test leads are color coded. L 1 = Red which connects to L 1 on the tester. -
Page 10: Operating Instructions
5. Operating Instructions Determination of the rotary field direction and phase presence On a 3 Phase System, the sequence of the 3 phases determine the rotation of a 3 phase motor connected to that system. The correct 3 Phase Sequence L results in a clockwise rotation of the connected motor. -
Page 11: Front Panel And Lcd Layout
BESANTEK 6. Front Panel and LCD Layout... -
Page 12: Principle Of How It Work
7. Principle of how it work As this instrument takes it's power from the circuit under test, it has a power supply circuit which derive it's power from the system. That supply circuit regulate a +5V for the circuitry. This is why you need a minimum of 40Vac before this instrument is operational. -
Page 13: Preparation For Use
BESANTEK 8. Preparation for use Fuses: doubt, check the fuses using a ohm meter. Please note that this instrument will not indicate anything, should the fuses be blown. Test Leads: Check the test leads for defects or cracks. Replace if cracked or damaged. Only replace with the same type. -
Page 14: Specifications
9. Specifications ELECTRICAL Determination of the Phase Presence Nominal Voltage for Phase Presence Indication (the voltage required for the LCD L1, L2, L3 indicators to come on)....From 40Vac to 500Vac. Frequency Range..From 15Hz to 400Hz. Determination of the Phases Rotary Field Direction: Direction Indication by LCD Display (the voltage required to have the LCD Direction Arrows to... -
Page 15: Limited Warranty
ENVIRONMENTAL Operating temperature Range : 1 °C to + 55 °C not in full sun!!! Storage Temperature: -20 °C to + 70 °C CLEANING Clean the instrument case with an anti-static cleaner and wipe with dry cloth. 10. Limited Warranty We warrant the product manufactured by us to be free from defective material or factory workmanship and agree to repair or replace this product which, under... -
Page 16: Specifications
This warranty does not apply to any of our products which have been repaired or altered by unauthorized persons in any way so as, in our sole judgement, to injure their stability or reliability, or which have been subject to misuse, abuse, misapplication, negligence or accident or which have had the serial numbers altered, defaced or removed.
