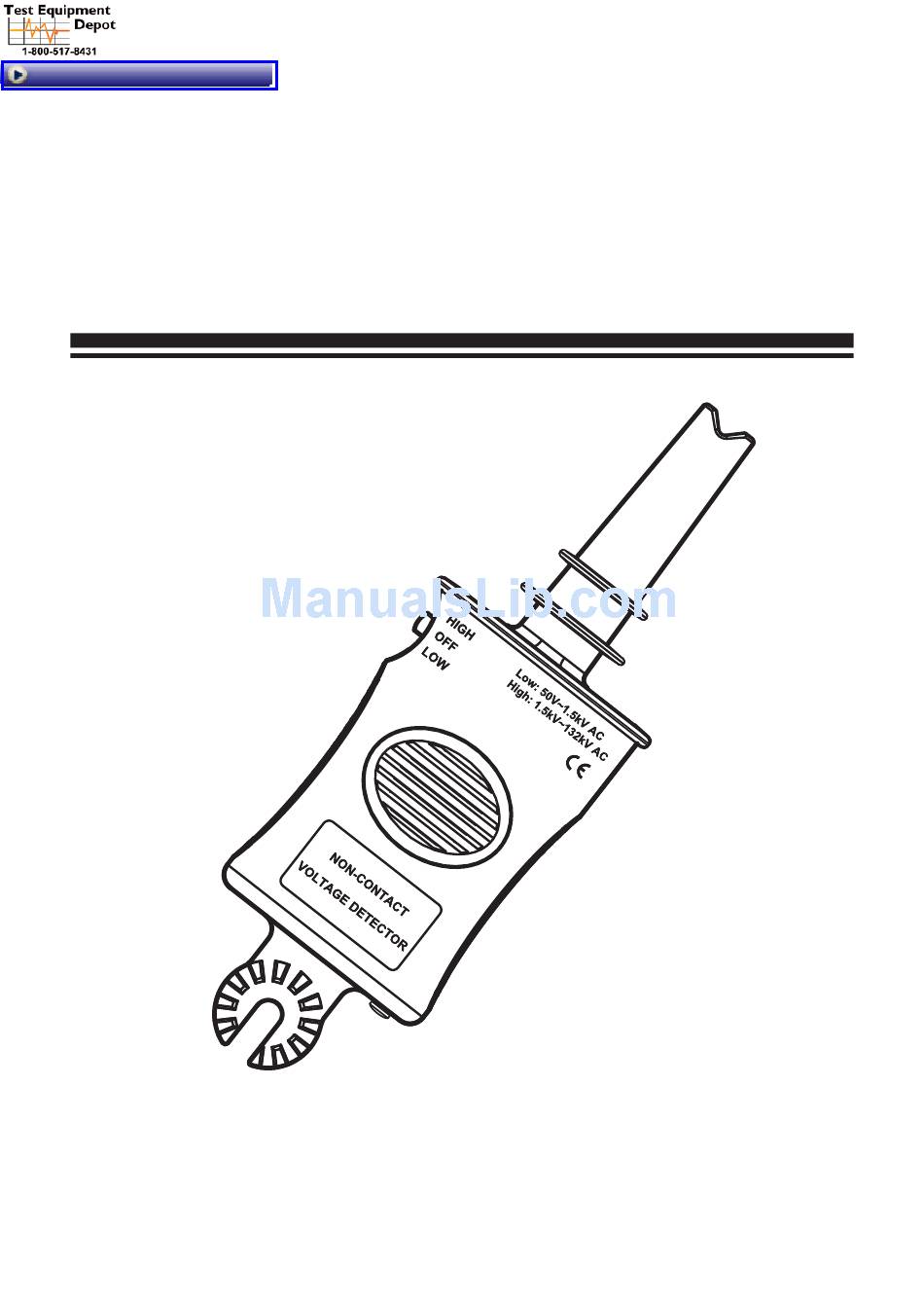

- Page 1 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com BST-HVD18 Non-Contact Voltage Detector INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
INDEX Page 1. INTRODUCTION......... 2. SAFETY PRECAUTION...... 3. APPLICATIONS........4. FEATURES & SPECIFICATIONS..5. INSTRUMENT LAYOUT...... 6. OPERATION........7. MAINTENANCE........9-10... -
Page 3: Introduction
1. INTRODUCTION NOTE This detector has been designed and tested according to CE Safety Requirements for Electronic Measuring Apparatus. Follow all warnings to ensure safe operation. WARNING READ "SAFETY PRECAUTION" (NEXT PAGE) BEFORE USING THE NON-CONTACT VOLTAGE DETECTOR. -
Page 4: Safety Precaution
2. SAFETY PRECAUTION Electricity can cause severe injuries with high voltages. Therefore it is very important to read the following info before using the Non-contact Voltage Detector. This must only be used and operated by a competent trained person and in strict accordance with the instructions. -
Page 5: Applications
Please keep in your mind to wear high insulated gloves and to use the hot stick or telescopic hot stick when you test high voltages between 1.5kV~132kV. 3. APPLICATIONS ● Non-contact detection of live voltages ● Find faults in cables ●... - Page 6 ● Power consumption : OFF : 0uA Low voltage detection mode: Less than 20mA High voltage detection mode : Less than 20mA ● Duty cycle : Continuous ● Response time : Instantaneous ● Operating temperature : 0º~50ºC ● Power source : Alkaline battery 9V x 1 ●...
-
Page 7: Instrument Layout

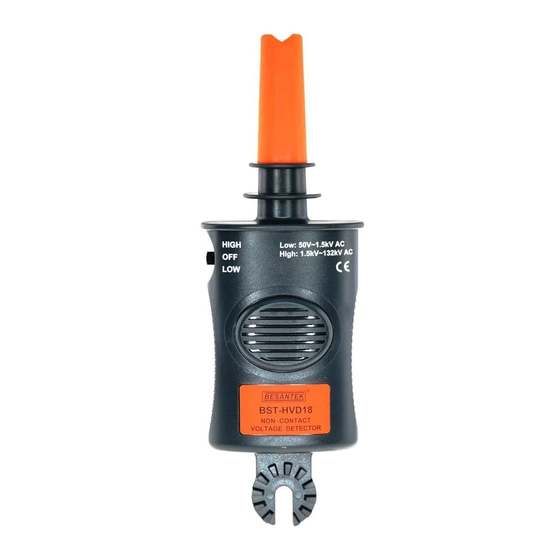

5. INSTRUMENT LAYOUT 9V BATTERY (1) Voltage sensor (3) The connection point of Hot (2) Power and range Stick selection switch (4) Blue LED for indication (5) Battery cover... -
Page 8: Operation
6. OPERATION ● Power and range selection switch When users turn on the Non-contact Voltage Detector, the blue LED will flash and the buzzer will generate a sound intermittently, Select "HIGH" range for high voltage detection, "LOW" range for low voltage detection. ●... - Page 9 ● HIGH range (High voltage detection, Telescopic hot stick or Hot stick must be attached) Select the range of HIGH (High voltage range), the blue LED will flash and the buzzer will generate a sound intermittently. The HIGH range for high voltage detection 1.5kV~ 132kV.
- Page 10 Voltage detection for a line...
-
Page 11: Maintenance
7. MAINTENANCE ● Battery replacement (1) Unscrew the battery cover on the rear with a screwdriver, then slide the battery cover off the tester. (2) Take out the battery. (3) Replace with a new battery (Alkaline battery 9V). (4) Reinstall the battery cover and fasten the cover screws. - Page 12 ● Cleaning and Storage : WARNING To avoid electrical shock or damage to the meter, do not get water inside the case. (1) Periodically wipe the case with a damp cloth and detergent; do not use abrasives or solvents. (2) If the detector is not used for periods of longer than 60 days, remove the battery and store them separately.
