Wireless switching/dimming top unit, 1-gang

Advertisement

Quick Links

Wireless switching/dimming top unit, 1-gang
Wireless switching/dimming top unit, 1-gang
Order No. : 5490 ..
Operating instructions
1 Safety instructions
Electrical devices may only be mounted and connected by electrically skilled
persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. In so doing, take all the circuit breakers into account, which support dangerous
voltages to the device and or load.
Danger of electric shock. The device is not suitable for disconnection from supply
voltage. Depending on the insert used, the load is not electrically isolated from the
mains, even when the device is switched off.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components
(1) FM insert
(2) Frame
(3) Radio button
(4) Status LED
3 Function
Intended use
-
Manual and radio-controlled operation of suitable flush-mounted inserts for switching or
dimming (see accessories)
-
Mounting on flush-mounted insert
-
Operation with suitable radio transmitters
i No operation on pulse insert, 2-wire and 3-wire extension inserts possible.
32582722
10864994

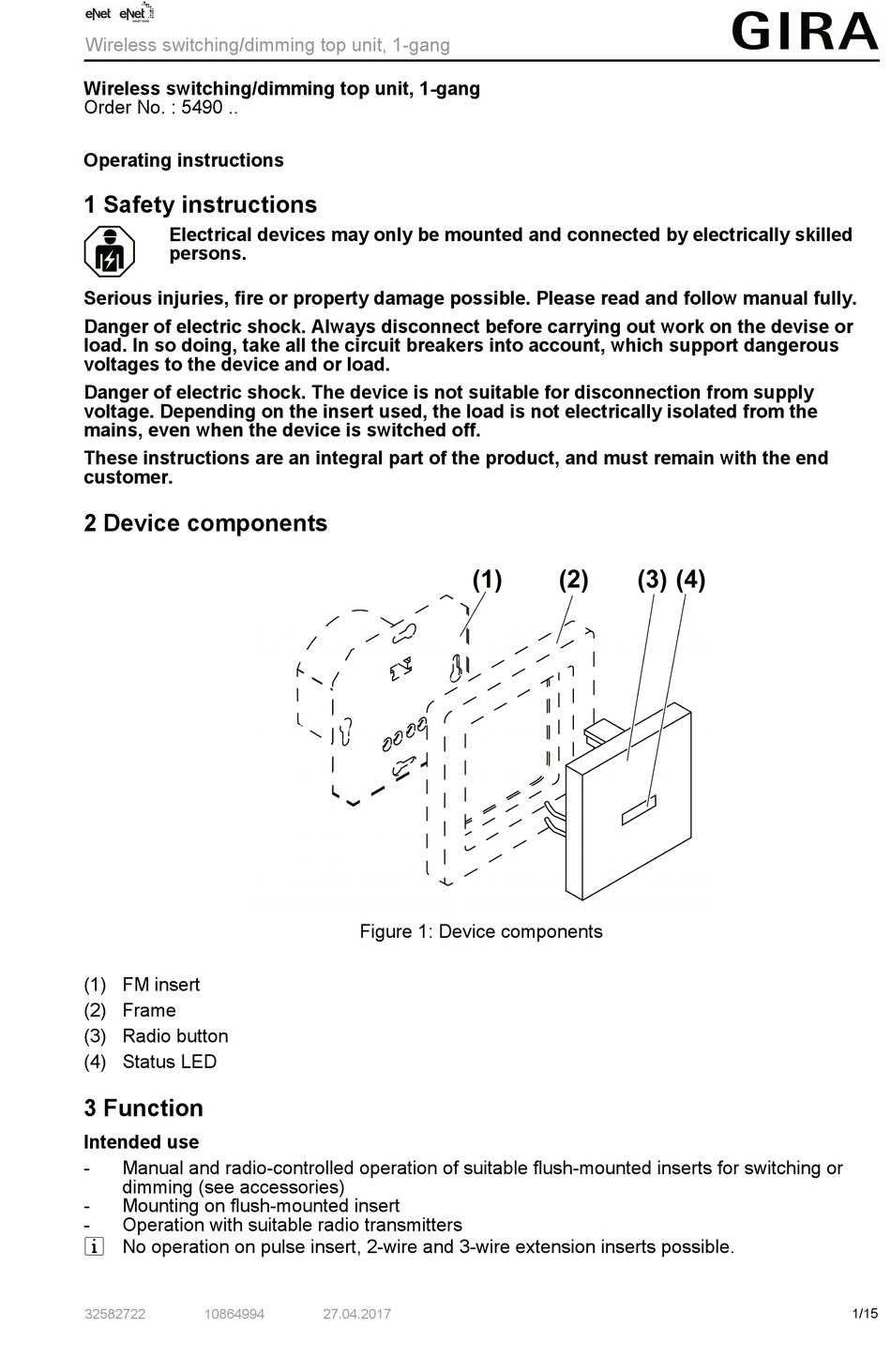

Figure 1: Device components
27.04.2017
1/15

Advertisement

loading
Need help?

Need help?

Do you have a question about the 5490 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Gira 5490 Series

  • Page 1 Wireless switching/dimming top unit, 1-gang Wireless switching/dimming top unit, 1-gang Order No. : 5490 .. Operating instructions 1 Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully. Danger of electric shock.
  • Page 2: Operation

    Wireless switching/dimming top unit, 1-gang Product characteristics Evaluation of extensions Scene operation possible Status indication with LED Status feedback to radio transmitter Switch-on brightness can be saved permanently when combined with flush-mounted inserts for dimming Can be set with eNet server: Maximum brightness Minimum brightness Dimming speed...
  • Page 3 Wireless switching/dimming top unit, 1-gang Press button at bottom for longer than 0.4 seconds. Light is switched on at minimum brightness. i If the button or 2-wire extension is pressed at the top or the push-button is pressed for longer than 0.4 seconds, then the light is switched on to minimum brightness and then brighter.
  • Page 4: Parameter List

    Wireless switching/dimming top unit, 1-gang The button is connected to the radio transmitter. The button and radio transmitter exit the programming mode automatically. i If the status LED of the button flashes 3 times at 1-second intervals for approx. 5 seconds, then the programming operation was not successful.
  • Page 5 Wireless switching/dimming top unit, 1-gang Function Light (dimming), light Light (dimming) (switching), switching, unused The channel is integrated for Basic setting: Light (dimming) the "Lighting" central function in the eNet SMART HOME app. Use the setting in combination with a dimming insert.
  • Page 6 Wireless switching/dimming top unit, 1-gang Switch-on brightness 1...100 % During brief operation, the Basic setting: 100 % output switches on at the set switch-on brightness. Note: If the value is above the set maximum brightness or below the minimum brightness, then the system will switch to the appropriate limit value.
  • Page 7 Wireless switching/dimming top unit, 1-gang Dim up ramp 0 s … 24 h Time between switch-on and Basic setting: 0 s reaching switch-on brightness. The light is switched on at minimum brightness and then dimmed to the switch-on brightness. Only applies to switch-on with transmitters (short operation).
  • Page 8 Wireless switching/dimming top unit, 1-gang Extended channel settings "dimming" Parameters Setting options, Basic Explanations setting Operating mode Normal operation see Device and channels Continuous on Continuous off Basic setting: Normal Operation Manual commissioning On, Off Blocks manual commissioning Basic setting: On for the device channel.
  • Page 9 Wireless switching/dimming top unit, 1-gang Switch-off warning On, Off If the switch-off warning is Basic setting: Off active, then, during switch-off, the systems dims to minimum brightness within 30 seconds and only then switches off. If the parameter "Dim down ramp"...
  • Page 10 Wireless switching/dimming top unit, 1-gang Deactivate wind alarm 0…100 % Defines the behaviour of the brightness value Basic setting: 0 % output on deactivating the wind alarm. Only visible when the priority for the wind alarm is 0. Priority, sun protection 0...4 Specifies the priority for Basic setting: 0...
  • Page 11 Wireless switching/dimming top unit, 1-gang Hotel function On, Off If the hotel function is Basic setting: Off activated, the system will dim to 20 % brightness when a switch-off command is made. Switch-off is only possible with a forced position command. Note: If the minimum brightness is set to greater than 20 %, then the system...
  • Page 12 Wireless switching/dimming top unit, 1-gang Manual switch-off of the run- On, Off Allows manual switch-off of a on time Basic setting: Off running run-on time. If the parameter is switched off, then a switch-off command will also switch the actuator on. Only visible if a run-on time was set.
  • Page 13 Wireless switching/dimming top unit, 1-gang Switch-off warning On, Off If the switch-off warning is Basic setting: Off active, then, during switch-off, the systems dims to minimum brightness within 30 seconds and only then switches off. If the parameter "Dim down ramp"...
  • Page 14 Operation with all System 2000 flush-mounted inserts for switching or dimming. 6.4 Conformity Gira Giersiepen GmbH & Co. KG hereby declares that the radio system type Order No. 5490 .. corresponds to the directive 2014/53/EU. You can find the full article number on the device. The complete text of the EU Declaration of Conformity is available under the Internet address: www.gira.de/konformitaet...
  • Page 15: Warranty

    Please submit or send faulty devices postage paid together with an error description to your responsible salesperson (specialist trade/installation company/electrical specialist trade). They will forward the devices to the Gira Service Center. Gira Giersiepen GmbH & Co. KG...
