Operating Instructions and Parts Manual
SPECIFICATIONS
POWER SUPPLY REQUIREMENTS
MOTOR
POWER
CIRCUIT REQUIREMENTS
DIMENSIONS
ON LEVEL
OFF LEVEL
CONSTRUCTION
MOTOR HOUSING
VOLUTE
IMPELLER
SHAFT
DISCHARGE
© 2018, WAYNE/Scott Fetzer Company
AC SPECIFICATIONS
120 V, 60 Hz
Single Phase, Dielectric Oil Filled
1/2 HP
15 A (minimum)
11 ½ in. high x 9 ¾ in. base
Approximately 9 in.
Approximately 4 in.
AC
DC
Coated Steel
Cast Iron
Glass Reinforced Thermoplastic
Steel
Stainless Steel
1-1/2 in. NPT
Submersible Sump Pump System
Please read and save these instructions. Read carefully before attempting to assemble, install,
operate or maintain the product described. Protect yourself and others by observing all safety
information. Failure to comply with instructions could result in personal injury and/or property
damage! Retain instructions for future reference.
PERFORMANCE GAL/HR
Model
WSS30Vn AC
WSS30Vn DC
* Battery not included. Wayne WSB1275 is
recommended
Intended for Indoor Use Only
www.waynepumps.com
DC SPECIFICATIONS
12 V, DC*
Permanent Magnet DC
100 Watts
15 A (minimum)
11 ½ in. high x 9 ¾ in. base
10-12 in.
N/A
Discharge Head (Lift Distance)
HP
0 ft
5 ft
10 ft
15 ft
1/2
5100
4500
3840
3060
12V 2700
2130
1500
720
670001-001 F 07/19
WSS30Vn
Advertisement
Table of Contents
Related Manuals for Wayne WSS30Vn
Summary of Contents for Wayne WSS30Vn
- Page 1 5100 4500 3840 3060 SHAFT Steel Stainless Steel WSS30Vn DC 12V 2700 2130 1500 DISCHARGE 1-1/2 in. NPT * Battery not included. Wayne WSB1275 is recommended Intended for Indoor Use Only © 2018, WAYNE/Scott Fetzer Company www.waynepumps.com 670001-001 F 07/19...
-
Page 2: System Description
The pumps are designed for clear water only. LED indicator lights TENIR COMPTE DES AVERTISSEMENTS SUIVANTS : inform the howeowner of the charge status of the battery. Wayne MAKE SURE THERE IS A PROPERLY GROUNDED RECEPTACLE recommends the WSB1275, 75 AMP hr maintenance free battery AVAILABLE. - Page 3 Operating Instructions and Parts Manual WSS30Vn IMPORTANT SAFETY INFORMATION (CONT’D) ALWAYS DISCONNECT THE PUMP from power supply before installing, servicing or making any adjustments. DO NOT USE AN EXTENSION CORD OR SURGE PROTECTOR. TOUJOURS METTRE LA POMPE HORS TENSION avant de procéder à...
-
Page 4: Battery Information
The system is designed to operate most efficiently with an AGM DO NOT USE THIS SYSTEM IN MUD, SAND, CEMENT, OIL CHEMICALS, battery. A WAYNE WSB1275 is recommended. The oversize battery GREY WATER, OR ANY OTHER WATER THAT IS NOT CLEAR GROUND case (included) will accommodate a 12 Volt AGM battery (up to a WATER. -
Page 5: Installation
PVC schedule 40 coupling is required on diverter valve discharge. Do not use schedule 20 couplings or drainage fittings. 8. Install removable check valve (8) (Wayne Part Number: 57028-001) positioned just above the basin to allow easy removal of the system for cleaning and service. -
Page 6: Control Box Installation
Operating Instructions and Parts Manual AC PUMP CHECK 1. Fill the basin/pit with water. The pump will start when the water level has reached the float switch-on level. FLOOR JOIST 2. The pump will stop when the water level has reached the SLOPE switch-off level. -
Page 7: Operation
Operating Instructions and Parts Manual WSS30Vn OPERATION Risk of electrical shock! Unplug main ac pump and the transformer. Always disconnect the power source before attempting to install, service, relocate or maintain the pump. Never touch Risque de choc électrique! sump pump motor, water or discharge piping when pump is connected to Débrancher la pompe principale et le transformateur de... -
Page 8: Troubleshooting Warnings
Operating Instructions and Parts Manual TROUBLESHOOTING WARNINGS AC ROUTINE SUMP MAINTENANCE The pump system should be inspected 3-4 times per year for movement or buildup of debris on the switch or float. Reposi- tion system if it has moved. Remove any debris that could interfere with the operation of the switches. - Page 9 Operating Instructions and Parts Manual WSS30Vn AC TROUBLESHOOTING CHART Symptoms Possible Cause(s) Suggested Remedies Pump will not 1. Water level too low 1. Water must be at the appropriate level to activate switch start or run 2. Blown fuse or tripped circuit breaker 2.
- Page 10 Operating Instructions and Parts Manual DC ROUTINE SUMP MAINTENANCE Once a month, check the battery condition. To check battery condition follow steps Listed below: 1. Unplug the transformer. NOTE: An inexpensive hydrometer can be purchased at an automotive parts dealer. 2.

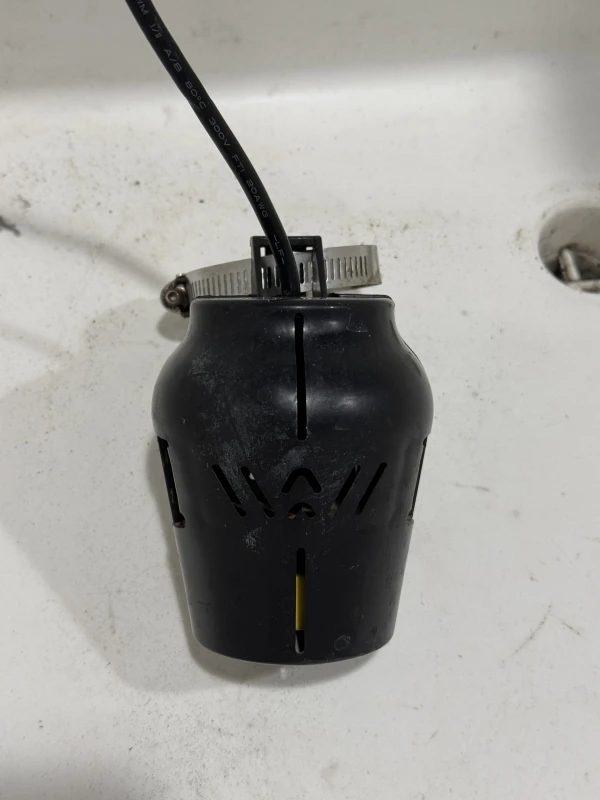

- Page 11 Operating Instructions and Parts Manual WSS30Vn ADDRESS PARTS CORRESPONDENCE TO: WAYNE Water Systems 101 Production Drive Harrison, OH 45030 U.S.A. REPAIR KITS MODEL: ALL MODELS REF. NO. DESCRIPTION PART NUMBER FLOAT KIT 60038-WYN1 TRANSFORMER 60194-WYN1 BACK UP SWITCH Call for part #...
- Page 12 LIMITED WARRANTY For three years for WSS30Vn from the date of purchase, from an authorized dealer, Wayne Water Systems will repair or replace, at its option for the original purchaser, any part or parts of its Sump Pumps or Water Pumps (“Product”) found upon examination by Wayne Water Systems to be defective in materials or workmanship. Please call Wayne Water Systems (800-237-0987) for warranty instructions.
