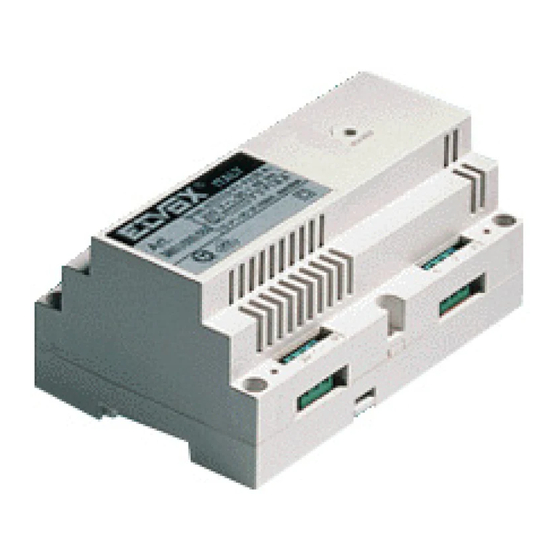

Power supply for electric door-opener system with built-in two-tone electronic sounder and for notice of call in door entry panel

Advertisement

POWER SUPPLY FOR ELECTRIC DOOR-OPENER SYSTEM WITH
BUILT-IN TWO-TONE ELECTRONIC SOUNDER AND FOR NOTICE OF
CSA product is according to UL 6500
Description of symbols shown in the power supply.
double square: it is a class II power supply
triangle with ligthning: hazard of electric shock, dangerous vol-
tage;
Triangle with exclamation mark: danger, pay attention.
The circuits inside the power supply are further protected by a
SIEMENS PTC, type C965.
N.B. When using continuous duty 0-15 and 0-AS outputs, do
not connect loads of over 0.25A.
Cod. S6I.931.A17
CALL IN DOOR ENTRY PANEL
WIRING INSTRUCTIONS
Art. 931A/C17
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN

CONNECTIONS TO TERMINALS OF POWER SUPPLY:

}
PRI:
Supply 117V∼ +10% -10%
60Hz 30VA protect by
PTC SIEMENS C840.
Power dissipated by power supply: 8,5 W
}
1:
Handset receiver
2:
Handset microphone
3:
Handset receiver and microphone common
}
3 (-):
Intecommunication system power supply
6 (+):
9V c.c.
}
6:
Common receiver and microphone for speech unit
7:
Speech unit microphone
8:
Speech unit loudspeaker
C1:
Output for call generator with modulated sound for
push-buttons commun wire, to be used with "Sound System"
series interphones.
C2:
Output for call generator with continuous sound for
push-buttons commun wire, to be used with "Sound
System" series interphones.
CP:
15V~ output for commun wire push-buttons to be used
with A.C. call interphones.
}
Output 15V ∼ 1A (on intermittent operation)
0:
3 sec. ON, 180 sec. OFF, 0,4A continuous
15:
protect by PTC SIEMENS C945
}
0:
3 sec. ON, 180 sec. OFF, 0,4A continuo
Output 15V rectified 1A (on intermittent operation)
3 sec. ON, 180 sec. OFF, 0,4A continuous
AS:
protect by PTC SIEMENS C945
RL. 01
3/2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 931A/C17 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Elvox 931A/C17

  • Page 1 POWER SUPPLY FOR ELECTRIC DOOR-OPENER SYSTEM WITH BUILT-IN TWO-TONE ELECTRONIC SOUNDER AND FOR NOTICE OF CALL IN DOOR ENTRY PANEL WIRING INSTRUCTIONS Art. 931A/C17 CONNECTIONS TO TERMINALS OF POWER SUPPLY: PRI: Supply 117V∼ +10% -10% 60Hz 30VA protect by PTC SIEMENS C840.
  • Page 2 13- Apparatus shall not be exposed to dripping or splashing and no objects with liquids, such a vases, shall be placed on the apparatus. 14- The set disconnection device from the mains is the plug. TECHNICAL CHARACTERISTICS OF POWER SUPPLY ART. 931A/C17 Power supply in grey ABS housing; preset for mounting on cases with DIN 8-module support.
  • Page 3 8000, 8100, 1200, 3300 Additional push-button for lock Electric lock 12V∼ Outdoor unit POWER SUPPLY Art.930, 930A Art. 931A/C17 L1- Bulb for panel lighting (3x24V 3W max.) 15 AS 10x24V 3W with Art. 832/C17 MAINS 16X24V 3W with Art. 832/3C7 PHONE Art.
  • Page 4 POWER SUPPLY PHONE Art. 931A/C17 MAINS Art. 8878 8 C1 PHONE Art. 6200 + Art. 6155 1 2 3 S Entrance panel series Patavium 8000, 8100, 1200, 3300 Additional push-button for lock Electric lock 12V∼ N.B. Outdoor unit On interphone Art. 8878 leave the Art.930, 930A...
  • Page 5 RELAY Art. 170/101 POWER SUPPLY PHONE Art. 931A/C17 Art. 8878 MAINS C1 CP 1 2 3 4 5 PHONE Art. 6200 + 6155 + 6152 Art.8878 Entrance panel series Patavium N.B. 8000, 8100, 1200, 3300 On interphone Art. 8878 displace Additional push-button for lock jumper on terminal “AC-C”.
  • Page 6 Electric lock 12V∼ Outdoor unit Art.930, 930A L1- Bulb for panel lighting (3x24V 3W max.) 10x24V 3W with Art. 832/C17 16X24V 3W with Art. 832/3C7 POWER SUPPLY Art. 931A/C17 8 C1 MAINS PHONE Art. 8870 ELVOX N.B. IN CASE OF NOISE IN THE AUDIO MOVE,...
  • Page 7 VARIAZIONI DEGLI SCHEMI BASE VERSIONS FROM STANDARD WIRING DIAGRAMS VERSION 1 POWER SUPPLY Connection of outdoor call push-button. Art. 931A/C17 When activating the outdoor push-button the phone sounds with a tone different from the one obtained by the external entrance panel call. MAINS PHONE Art.
  • Page 8 Via Conti Biglia, 2 20162 Milano CERT n° 9110.ELVO ELVOX Costruzioni elettroniche S.p.A. - ITALY Via Pontarola, 14/a - 35011 Campodarsego (Padova) www.elvox.com Tel 049 9202511 - Fax 049 9202603 - info@elvox.com Telefax Export Dept. +39/049 9202601 - elvoxexp@elvox.com UNI EN ISO 9001:2008...
