Summary of Contents for TANDBERG TT1282

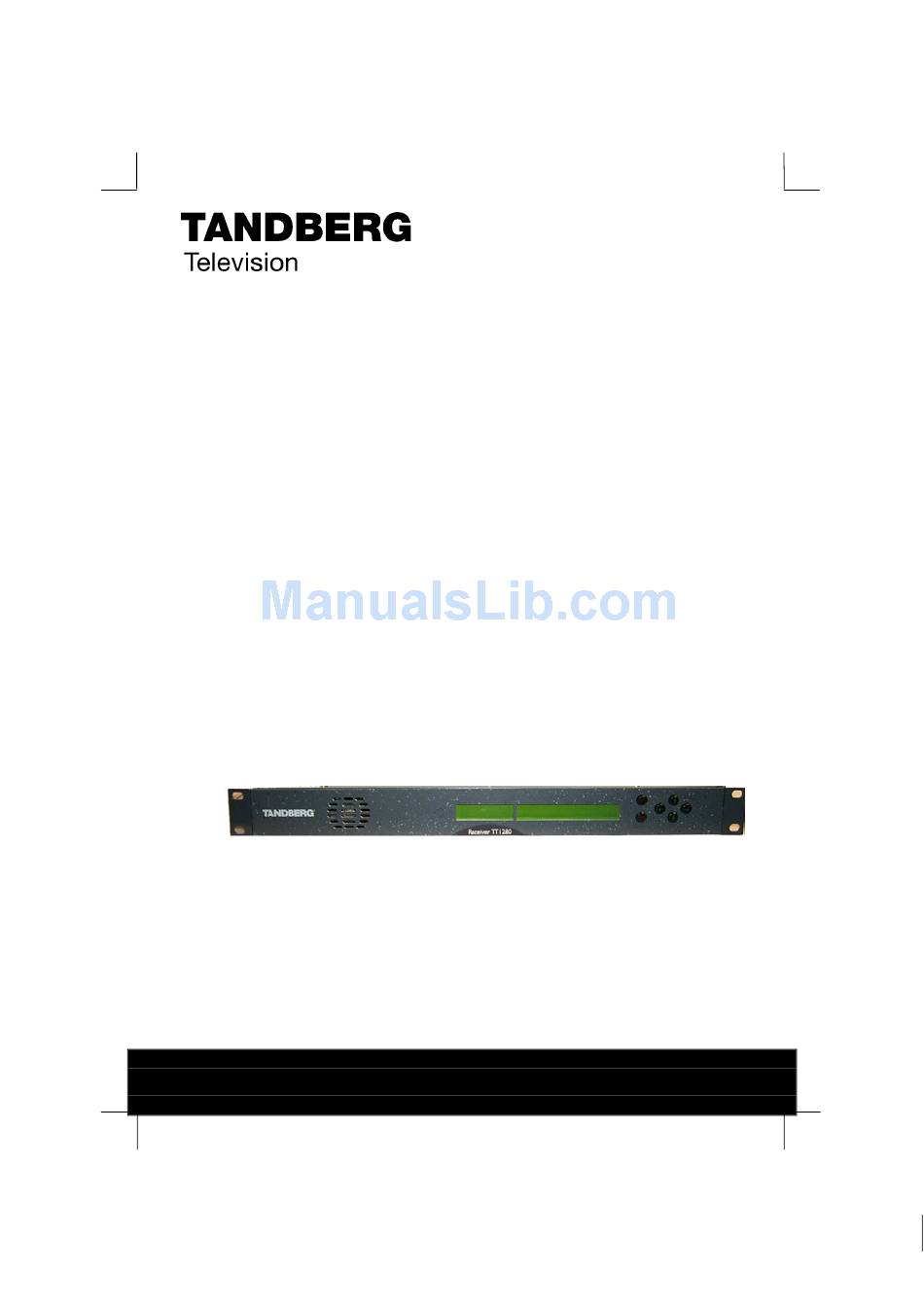

- Page 1 ST.US.E10141.4 USER GUIDE TT1280 and TT1282 HD Professional Receiver/Decoder Software Version 2.0.0 (and later) ENGLISH (UK) www.tandbergtv.com...
-
Page 2: Customer Services
Technical Training International: This document and the information contained in it is the property of TANDBERG Television Ltd and may be the subject of patents pending and granted. It must not be used for commercial purposes nor copied, disclosed, reproduced,... -
Page 3: Table Of Contents
TT128x High Definition Professional Receiver/Decoder Contents Who Should Use This User Guide? ... 5 1.1 What Equipment is Covered by This User Guide? ... 5 1.2 Hardware and Software Options ... 6 Installing the Equipment... 7 2.1 Introduction ... 7 2.2 Operating Voltage ... - Page 4 TT128x High Definition Professional Receiver/Decoder List of Tables Table 1.1: Equipment Model Descriptions... 5 Table 1.2: Hardware Options ... 6 Table 1.3: Software Options ... 6 Table 2.1: Types of Connector... 8 Table 2.2: Fuse Type and Rating ... 10 Table 3.1: Navigate Mode...
-
Page 5: Who Should Use This User Guide
This User Guide is written for operators/users of the TT1280 and TT1282 Integrated Receiver/Decoder (IRD) to assist in installation and operation. The TT1280 and TT1282 are referred to throughout this User Guide as ‘IRD(s)’ unless there is a specific difference, where they will be referred to by the model number. -
Page 6: Hardware And Software Options
TT128x High Definition Professional Receiver/Decoder Model Number Marketing Code TT1282 Common TT1282/CIBAS Interface TT1282 Director TT1282/DIRBAS/48V (-48 V version) TT1282 Common TT1282/CIBAS/48V Interface (-48 V version) TT1282 Director TT1282/DIRBAS Hardware and Software Options See Table 1.2 and Table 1.3 for a list of hardware and software options available for the IRDs. -
Page 7: Installing The Equipment
50/60 Hz nominal. -48 Vdc Models Only models TT1280/CIBAS/48V, TT1280/DIRBAS/48V, TT1282/CIBAS/48V and TT1282/DIRBAS/48V use a dc power supply. CAUTION This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your business, consult a qualified electrical engineer or your local power company. -
Page 8: Connecting Up The Basic Receiver
TT128x High Definition Professional Receiver/Decoder WARNINGS 1. The Technical Earth is not a Protective earth for electric shock protection. 2. This unit must be correctly earthed through the moulded plug supplied. If the local mains supply does not have an earth conductor do not connect the unit. -
Page 9: Connecting The Receiver To The Power Supply
Type of Connector ASI/HDSDI OUT 1 ASI/HDSDI OUT 2 ASI/SMPTE 310 IN 10/100BaseT Alarm Relay RS-232/RS-422 Data Out Technical Earth NOTE Refer to the Reference Guide for all power supply, fuse, safety, EMC information and operating conditions. Connecting the Receiver to the Power Supply WARNINGS 1. -
Page 10: Power Supply
TT128x High Definition Professional Receiver/Decoder Connect the Receiver to the power supply as follows: > Power Supply Ensure the power supply is isolated and switched off. > Receiver Ensure the correct fuse type and rating has been fitted to both the equipment and the power cable. -
Page 11: Operating The Equipment From The Front Panel
Operating the Equipment From the Front Panel Introduction The front panel display and keypad may be used to configure, control and monitor the Receiver when an external control system is not used. Local Control At power-on the Receiver runs through a boot sequence (boot time is approximately 15 seconds). -
Page 12: Navigating The Menus
TT128x High Definition Professional Receiver/Decoder Navigating the Menus Operating the IRD from the Front Panel is via two operating modes: Navigate Mode and Edit Mode. 3.4.1 Navigate Mode Navigate mode allows the user to move between menus and pages within menus (editing the left display area). Table 3.1: Navigate Mode Action Up Pushbutton Pressed... -
Page 13: Table 3.2: Edit Mode
Table 3.2: Edit Mode Action Up Pushbutton Pressed Down Pushbutton Pressed Left Pushbutton Pressed Right Pushbutton Pressed Edit Pushbutton Pressed Save Pushbutton Pressed Pushbutton LEDs are updated to indicate which pushbutton presses are still valid as each edit pushbutton press event is processed. For example, when the Left pushbutton LED is lit it indicates there are additional editable parameters to the left of the current cursor position. -
Page 14: Table 3.3: Selecting A Menu Option
TT128x High Definition Professional Receiver/Decoder Table 3.3: Selecting a Menu Option Step Action Select the menu and display the required selection. Press Edit on the front panel. Use the arrow pushbuttons to step through the options. Press Save to store the option or press Edit to cancel the selection and return to the source menu. -
Page 15: Menu Structure
Menu Structure SWITCH ON TT1280 Initialising 1 Preset Menu 2 Input Menu 3 Service Menu 4 Conditional Access Menu 5 TS Output Menu 6 Alarms Menu 7 Systems Menu 7. System Menu Section C.9 Date/Time 7.1 Setup Operating Mode 7.1.1 LCD Contrast 7.1.2 Serial Remote Protocol 7.1.3 IP Address 7.1.3.1 Subnet Mask... -
Page 16: Operating The Equipment Remotely
IP address should be set (Menu 7.1.3.2). Finally the operating mode should be set to “NETWORK (SNMP)” (Menu 7.1). The SNMP MIB for the IRD is available from TANDBERG Television. Basic Unit Set-up Set the Transport Stream Input Navigate to the Input Menu (Menu 2.1/2.2) and select the transport... -
Page 17: Set The Analogue Video Output Options
HOM/QPSK Input > Select the RF Input connector (Menu 2.3) > Set the LNB frequency (Menu 2.3.2) > Satellite frequency (Menu 2.3.2.1) > Symbol rate (Menu 2.3.2.2) > Modulation FEC (Menu 2.3.2.3) > LNB power (Menu 2.3.2.4) > LNB 22 kHz (Menu 2.3.2.5) >... -
Page 18: Select A Service
TT128x High Definition Professional Receiver/Decoder Select a Service Navigate to the Service Selection menu (Menu 3). For single service transport streams the service should be selected and displayed along with the service ID. For fully compliant DVB or ATSC transport streams the service name should also be displayed.
