Note:
• Due to standardization, replacements in
the parts list may be different from the
parts specifi ed in the diagrams or the com-
ponents used on the set.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• RESISTORS
All resistors are in ohms.
METAL: Metal-fi lm resistor.
METAL OXIDE: Metal oxide-fi lm resistor.
F: nonfl ammable
• Items marked "*" are not stocked since
they are seldom required for routine ser-
vice.
Some delay should be anticipated when
ordering these items.
Ref. No.
Part No.
Description
A-2083-918-A
DAMP BOARD, COMPLETE
*********************
< IC >
IC2001
6-718-105-01
IC TAS5534DGGR
IC2002
6-721-742-01
IC TAS5614LA
IC2003
6-721-742-01
IC TAS5614LA
*************************************************************
IR BOARD
********
< IC >
IC3300
6-600-766-01
IC PNA4823M01S0 ( )
*************************************************************
MIC BOARD
*********
< CONNECTOR >
CN3500
1-784-921-11
PIN, CONNECTOR 4P
< DIODE >
D3500
6-500-400-01
DIODE BAV99-215
D3501
6-500-400-01
DIODE BAV99-215
D3503
6-502-961-01
DI DA2J10100L
D3504
6-502-961-01
DI DA2J10100L
< IC >
IC3500
8-759-909-71
IC BA4558F
< JACK >
J3500
1-822-967-12
JACK (MIC1)
J3501
1-822-967-12
JACK (MIC2)
JR35002 1-216-296-11
SHORT CHIP
JR35003 1-216-296-11
SHORT CHIP
*************************************************************
Note 1: When the DAMP board is replaced, spread the com-
pound referring to "NOTE OF REPLACING THE IC2002
and IC2003 ON THE DAMP BOARD AND THE COM-
PLETE DAMP BOARD" on servicing notes (page 5).
Note 2: When the DAMP board is replaced, spread the bond re-
ferring to "BOND FIXATION OF ELECTRIC PARTS" on
servicing notes (page 7).

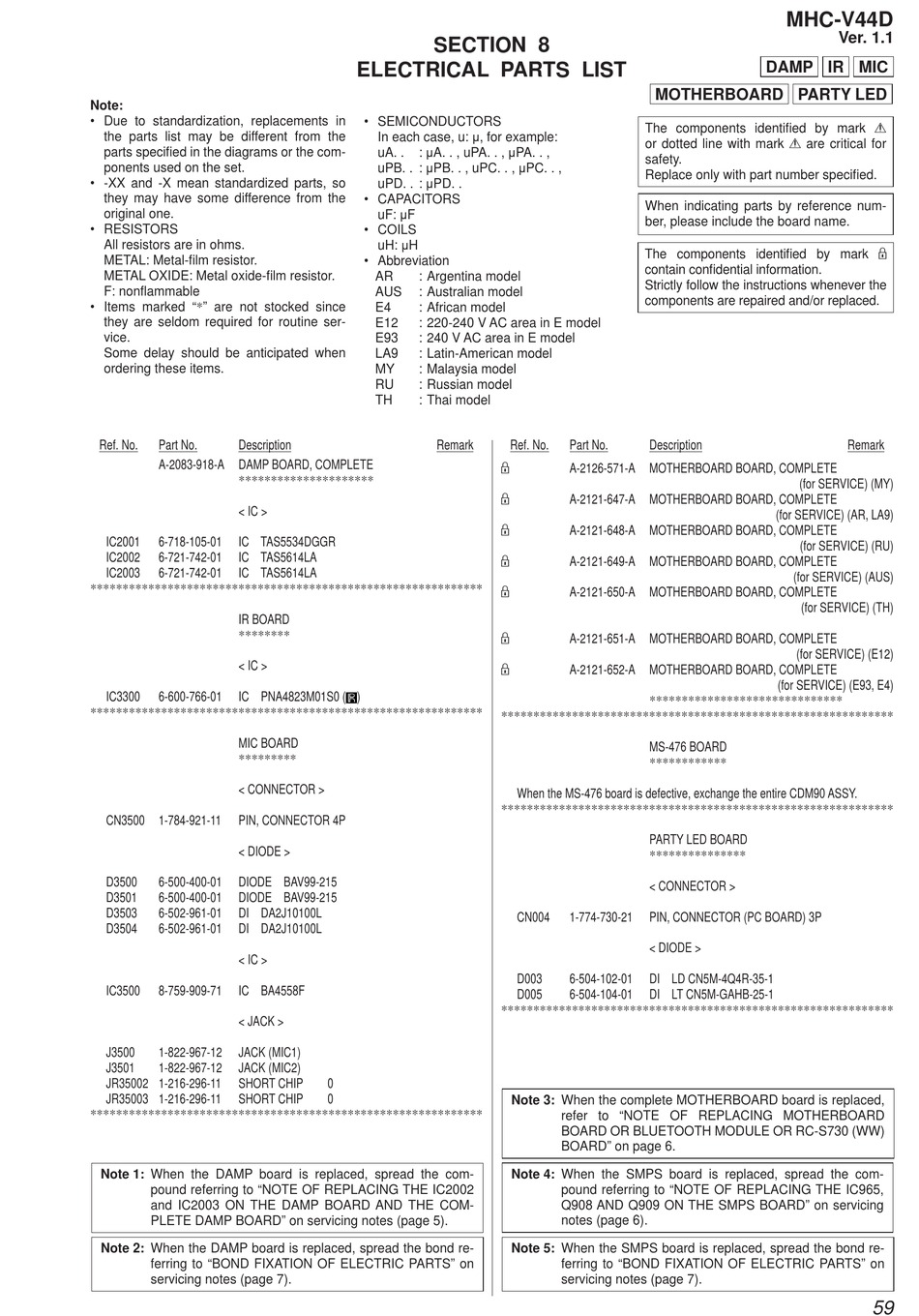

SECTION 8

ELECTRICAL PARTS LIST

• SEMICONDUCTORS
In each case, u: μ, for example:
uA. .
: μA. . , uPA. . , μPA. . ,
uPB. . : μPB. . , uPC. . , μPC. . ,
uPD. . : μPD. .
• CAPACITORS
uF: μF
• COILS
uH: μH
• Abbreviation
AR
: Argentina model
AUS
: Australian model
E4
: African model
E12
: 220-240 V AC area in E model
E93
: 240 V AC area in E model
LA9
: Latin-American model
MY
: Malaysia model
RU
: Russian model
TH
: Thai model
Remark
9
9
9
9
9
9
9
*************************************************************
*************************************************************
*************************************************************
0
0
MOTHERBOARD PARTY LED
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
When indicating parts by reference num-
ber, please include the board name.
The components identifi ed by mark 9
contain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Ref. No.
Part No.
Description
A-2126-571-A
MOTHERBOARD BOARD, COMPLETE
A-2121-647-A
MOTHERBOARD BOARD, COMPLETE
A-2121-648-A
MOTHERBOARD BOARD, COMPLETE
A-2121-649-A
MOTHERBOARD BOARD, COMPLETE
A-2121-650-A
MOTHERBOARD BOARD, COMPLETE
A-2121-651-A
MOTHERBOARD BOARD, COMPLETE
A-2121-652-A
MOTHERBOARD BOARD, COMPLETE
******************************
MS-476 BOARD
************
When the MS-476 board is defective, exchange the entire CDM90 ASSY.
PARTY LED BOARD
***************
< CONNECTOR >
CN004
1-774-730-21
PIN, CONNECTOR (PC BOARD) 3P
< DIODE >
D003
6-504-102-01
DI LD CN5M-4Q4R-35-1
D005
6-504-104-01
DI LT CN5M-GAHB-25-1
Note 3: When the complete MOTHERBOARD board is replaced,
refer to "NOTE OF REPLACING MOTHERBOARD
BOARD OR BLUETOOTH MODULE OR RC-S730 (WW)
BOARD" on page 6.
Note 4: When the SMPS board is replaced, spread the com-
pound referring to "NOTE OF REPLACING THE IC965,
Q908 AND Q909 ON THE SMPS BOARD" on servicing
notes (page 6).
Note 5: When the SMPS board is replaced, spread the bond re-
ferring to "BOND FIXATION OF ELECTRIC PARTS" on
servicing notes (page 7).
MHC-V44D
Ver. 1.1
DAMP IR MIC
Remark
(for SERVICE) (MY)
(for SERVICE) (AR, LA9)
(for SERVICE) (RU)
(for SERVICE) (AUS)
(for SERVICE) (TH)
(for SERVICE) (E12)
(for SERVICE) (E93, E4)
59
