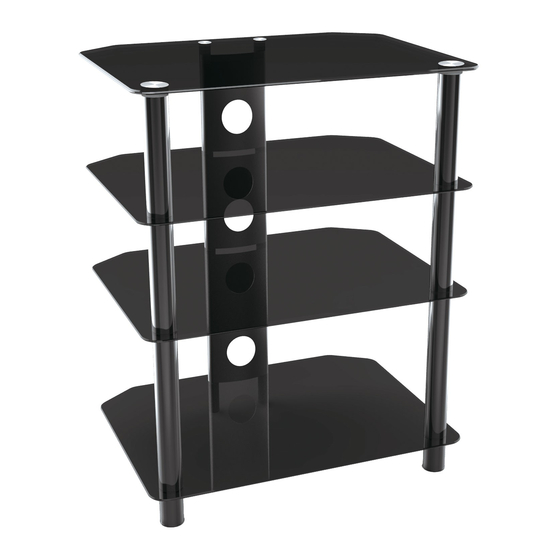

ricoo FT601 Assembly Instructions

TV STAND
EN
For:
FT601 ASSEMBLY INSTRUCTIONS
all color variants
v.17.10
Dear customer,
we are pleased that you have decided for our product
Sometimes, despite our efforts to provide you with a high-quality product, it may happen
that an accessory is missing or a part is damaged during transport
return the item in such a case, simply request replacement for the missing or damaged
part at our customer hotline .
Contact details from our customer hotline are listed below.
When contacting us, please mention the article data (listed on the right side),
article color as well as the required spare part numbers (including the required
quantity of items), as indicated in the "Scope of delivery" section of this manual.
Please keep ready your order number / order ID for our customer hotline. We will
process your request immediately !
Component Checklist
IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installation.
If any parts are missing or faulty, telephone your local distributor for a replacement.
B1(x1)
A1(x4)
B2(x3)
B3(x4) B4(x2) B5(x2) B6(x4)
1
40kg
(88lbs)
MAX
Product data
FT601
.
. Please do not
Customer-Hotline
E.N.Z. Engineering GmbH
Gewerbestr. 11
79364 Malterdingen
(Germany)
Tel: +49 (0) 7644-565310
Fax: +49 (0) 7644-5653199
E-Mail: support@ricoo.de
www.ricoo.eu
C1(x8)
B7(x2) B8(x2)
B9(x1)
1
G1
B1
2
B6
B3
3
B10(x2)
Please note: With lacquered glass side upwards!
4
B2
2x B3
„ " Sticker must be up!
2x B6
