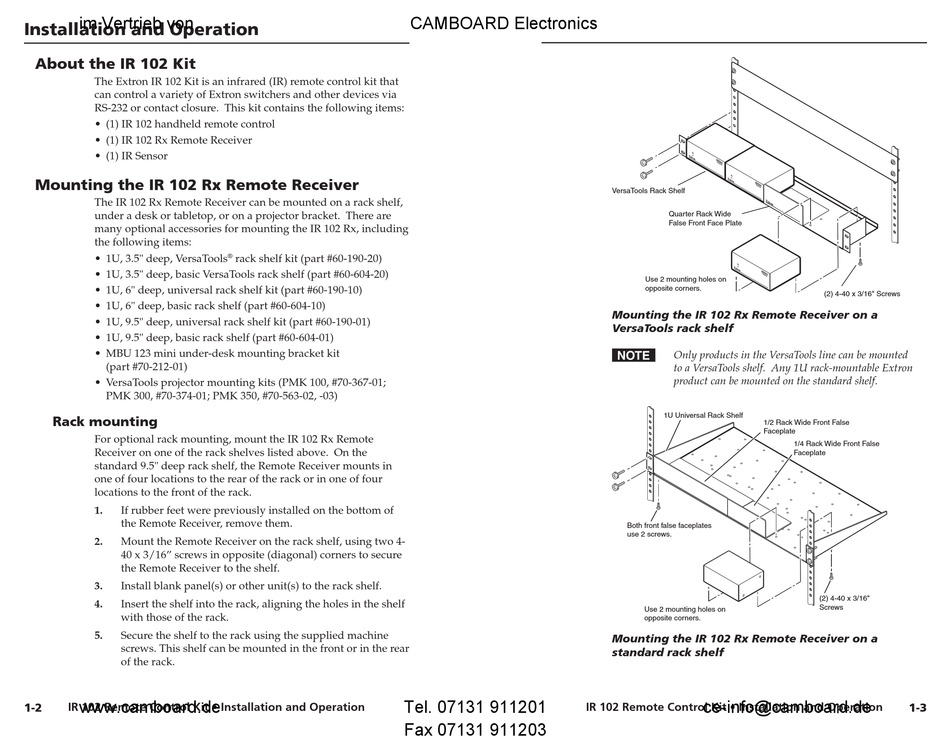

Installaton and Operaton
About the IR 102 Kt
The Extron IR 102 Kit is an infrared (IR) remote control kit that
can control a variety of Extron switchers and other devices via
RS-232 or contact closure. This kit contains the following items:
• (1) IR 102 handheld remote control
• (1) IR 102 Rx Remote Receiver
• (1) IR Sensor
Mountng the IR 102 Rx Remote Recever
The IR 102 Rx Remote Receiver can be mounted on a rack shelf,
under a desk or tabletop, or on a projector bracket. There are
many optional accessories for mounting the IR 102 Rx, including
the following items:
• 1U, 3.5" deep, VersaTools
• 1U, 3.5" deep, basic VersaTools rack shelf (part #60-604-20)
• 1U, 6" deep, universal rack shelf kit (part #60-190-10)
• 1U, 6" deep, basic rack shelf (part #60-604-10)
• 1U, 9.5" deep, universal rack shelf kit (part #60-190-01)
• 1U, 9.5" deep, basic rack shelf (part #60-604-01)
• MBU 123 mini under-desk mounting bracket kit
(part #70-212-01)
• VersaTools projector mounting kits (PMK 100, #70-367-01;
PMK 300, #70-374-01; PMK 350, #70-563-02, -03)
Rack mountng
For optional rack mounting, mount the IR 102 Rx Remote
Receiver on one of the rack shelves listed above. On the
standard 9.5" deep rack shelf, the Remote Receiver mounts in
one of four locations to the rear of the rack or in one of four
locations to the front of the rack.
1.
If rubber feet were previously installed on the bottom of
the Remote Receiver, remove them.
2.
Mount the Remote Receiver on the rack shelf, using two 4-
40 x 3/16" screws in opposite (diagonal) corners to secure
the Remote Receiver to the shelf.
3.
Install blank panel(s) or other unit(s) to the rack shelf.
4.
Insert the shelf into the rack, aligning the holes in the shelf
with those of the rack.
5.
Secure the shelf to the rack using the supplied machine
screws. This shelf can be mounted in the front or in the rear
of the rack.
www.camboard.de
1-2
IR 102 Remote Control Kit • Installation and Operation
rack shelf kit (part #60-190-20)
®
Tel. 07131 911201
Fax 07131 911203
CAMBOARD Electronics
IR 102 Remote Control Kit • Installation and Operation
VersaTools Rack Shelf
Quarter Rack Wide
False Front Face Plate
Use 2 mounting holes on
opposite corners.
Mounting the IR 102 Rx Remote Receiver on a
VersaTools rack shelf
N
Only products in the VersaTools line can be mounted
to a VersaTools shelf. Any 1U rack-mountable Extron
product can be mounted on the standard shelf.
1U Universal Rack Shelf
1/2 Rack Wide Front False
Faceplate
Both front false faceplates
use 2 screws.
Use 2 mounting holes on
opposite corners.
Mounting the IR 102 Rx Remote Receiver on a
standard rack shelf
ce-info@camboard.de
(2) 4-40 x 3/16" Screws
1/4 Rack Wide Front False
Faceplate
(2) 4-40 x 3/16"
Screws
1-3
