VHF INTERFACE IF-5200

The VHF interface unit IF-5200 mixes VHF transmitting and receiving signals
and output to the VDR.

Specifications

Power Supply:
Mic input level:
Factory default:
Speaker input level:
Factory default:
PTT Switch signal:
Output:

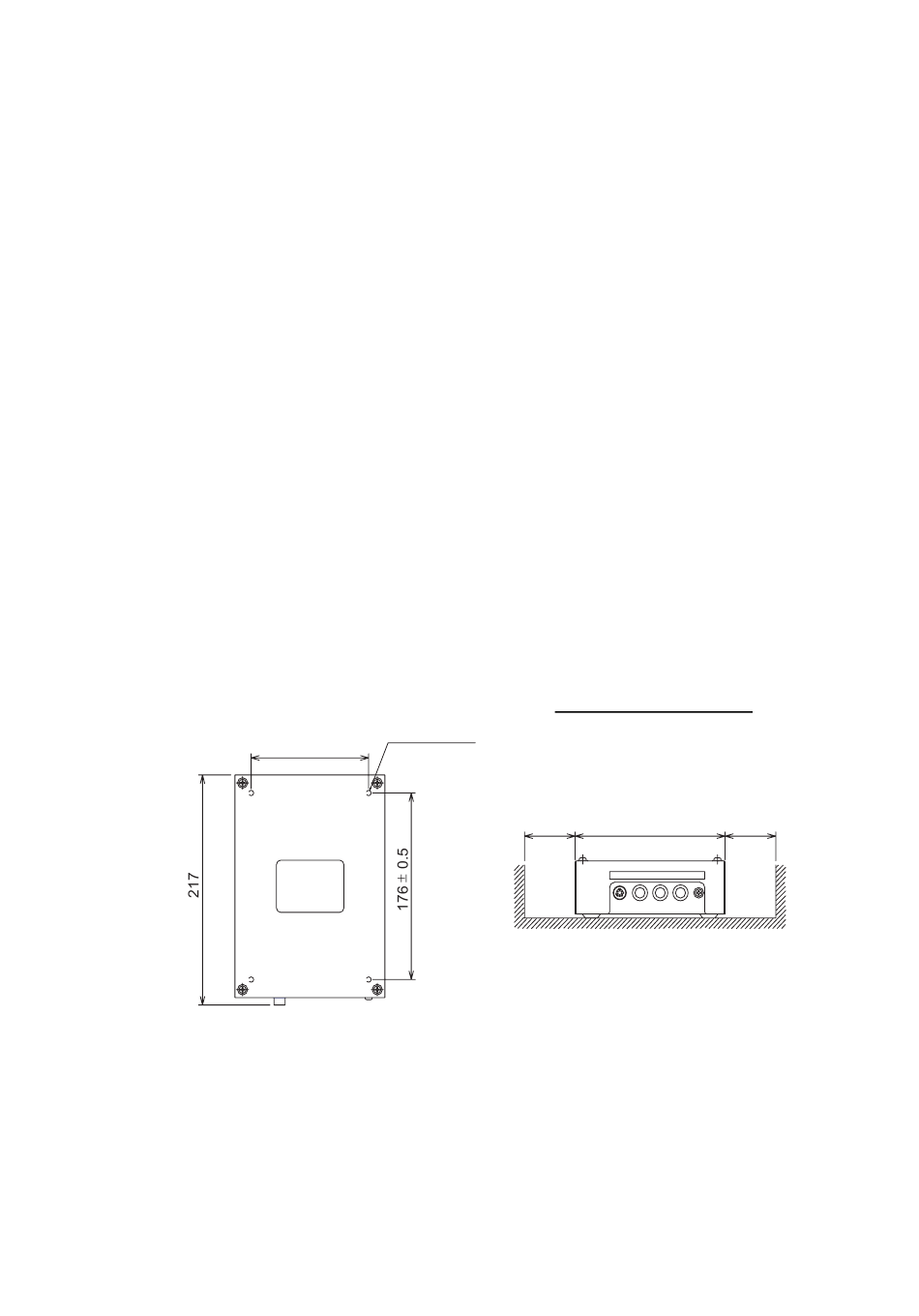

Mounting

Remove the cover to access holes. Fix the unit with four self-tapping screws
(4x20). When non-Furuno VHF is connected to the unit, using the terminal board,
remove unused wires and connectors. Otherwise, noise problem may arise.
116 ± 0.5
NAMEPLATE
24 VDC (21.6 to 31.2 Vdc), 40 mA
-16 to –56 dBm, Input impedance: >10k ohms
-46 dBm, 600 ohms: 10dB ATT ON (Changeable among 10, 20,
30 and 40 dB with DS1 and DS3.)
32 to 200 ohms, 2 mW, input impedance: 10k ohms
2 mW, 200 ohms: 10dB ATT OFF (Changeable between 0 and
10 dB with DS2 and DS4.)
TTL level
0 dBm±10dB, 600 ohms, balanced
φ
4- 5
FIXING HOLES
5
#50 148 #50
