Do not open during installation
This product is factory-sealed.
Refer to the instructions contained in this
document for details.
Surge Protection
This product features built-in surge protection circuitry in compliance with
applicable standards.
For comprehensive protection of a luminaire installation against lightning and
electrical surges, it is essential to cover mains supply and data input lines at
the distribution board level, by using respective primary (Type 1) and secondary
(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and activated
prior to luminaire installation. Also, disconnect luminaires before operating
high-power devices such as, for example, electrical arc welders.
WE-EF LEUCHTEN
Installation and Maintenance
Instructions
RAIL66 Projector
RAIL66 version
FLC121 #7 LED
FLC131 #7 LED
FLC141 #7 LED
Space frame version
FLC121 #7 LED
FLC131 #7 LED
FLC141 #7 LED
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for WE-EF FLC121
Summary of Contents for WE-EF FLC121

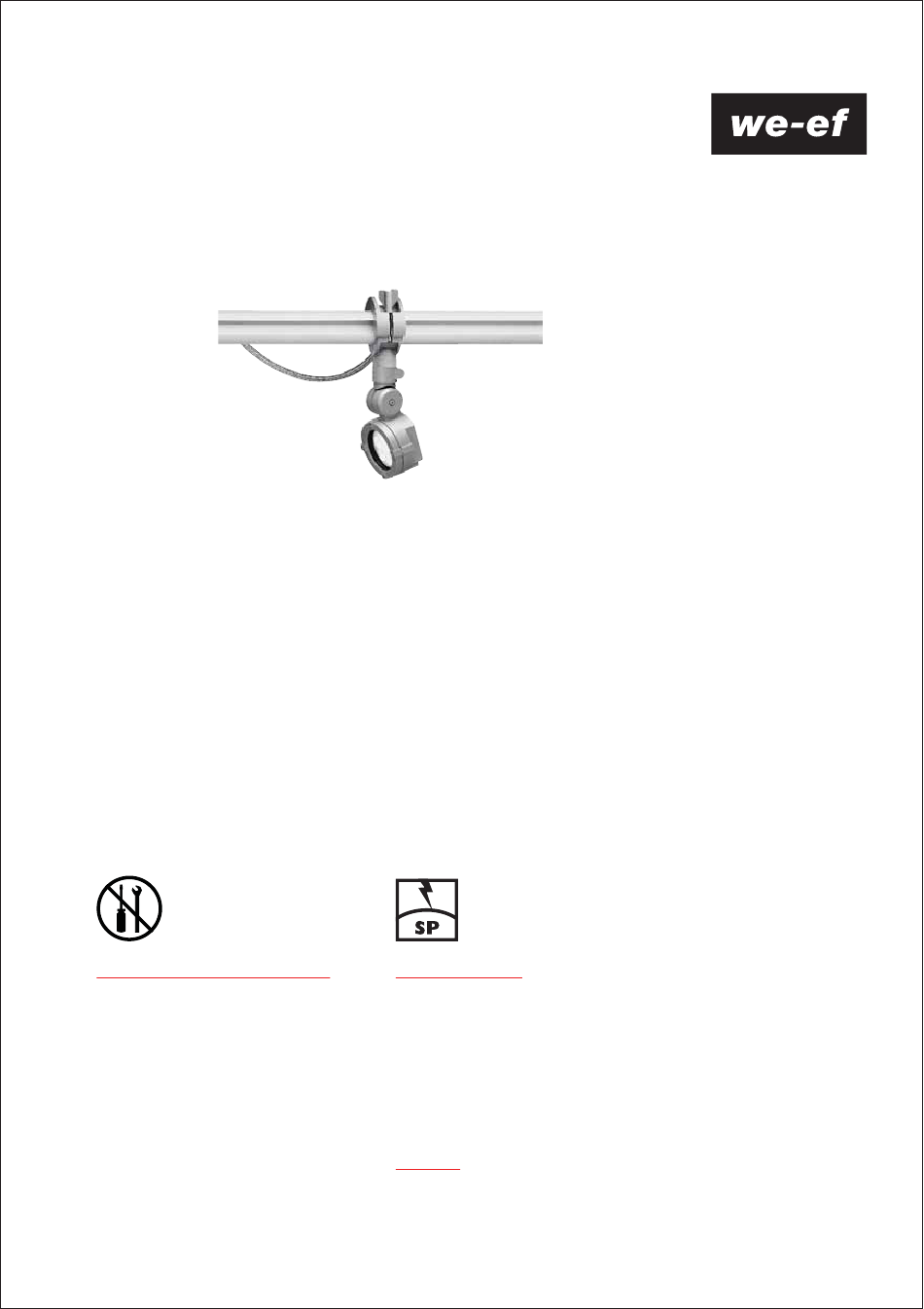

- Page 1 WE-EF LEUCHTEN Installation and Maintenance Instructions RAIL66 Projector RAIL66 version FLC121 #7 LED FLC131 #7 LED FLC141 #7 LED Space frame version FLC121 #7 LED FLC131 #7 LED FLC141 #7 LED Do not open during installation Surge Protection This product is factory-sealed.
- Page 2 RAIL66 Projector FLC121 355° RAIL66 version Space frame version FLC131 355° RAIL66 version Space frame version FLC141 RAIL66 version Space frame version IP66, IK07, Class I, ta = 40°C...
-
Page 3: Maintenance
Light Source Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high-pressure cleaners. In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out by a suitably quali ed and trained professional. -
Page 4: Installation Procedure
Installation Installation – Space frame version The product must be installed and maintained by a Suitable for space frame diameter 48-60 mm. suitably quali ed person in compliance with the latest 1) Switch off mains electrical supply. applicable regulations and relevant legislation. 2) Determine desired position of luminaire A on space frame X, dependent on aiming requirements. - Page 5 RAIL66 version...
- Page 6 Space frame version Fig. I. Feed mains supply cable through cable gland...
- Page 7 Tel +1 724 742 0030 Fax +41 22 752 49 74 Fax +1 724 742 0035 info.switzerland@we-ef.com info.usa@we-ef.com WE-EF LIGHTING United Kingdom Tel +44 844 880 5346 Fax +44 844 880 5347 info.uk@we-ef.com TO9209W0717 © WE-EF 2017 Technical speci cations are subject to change.
