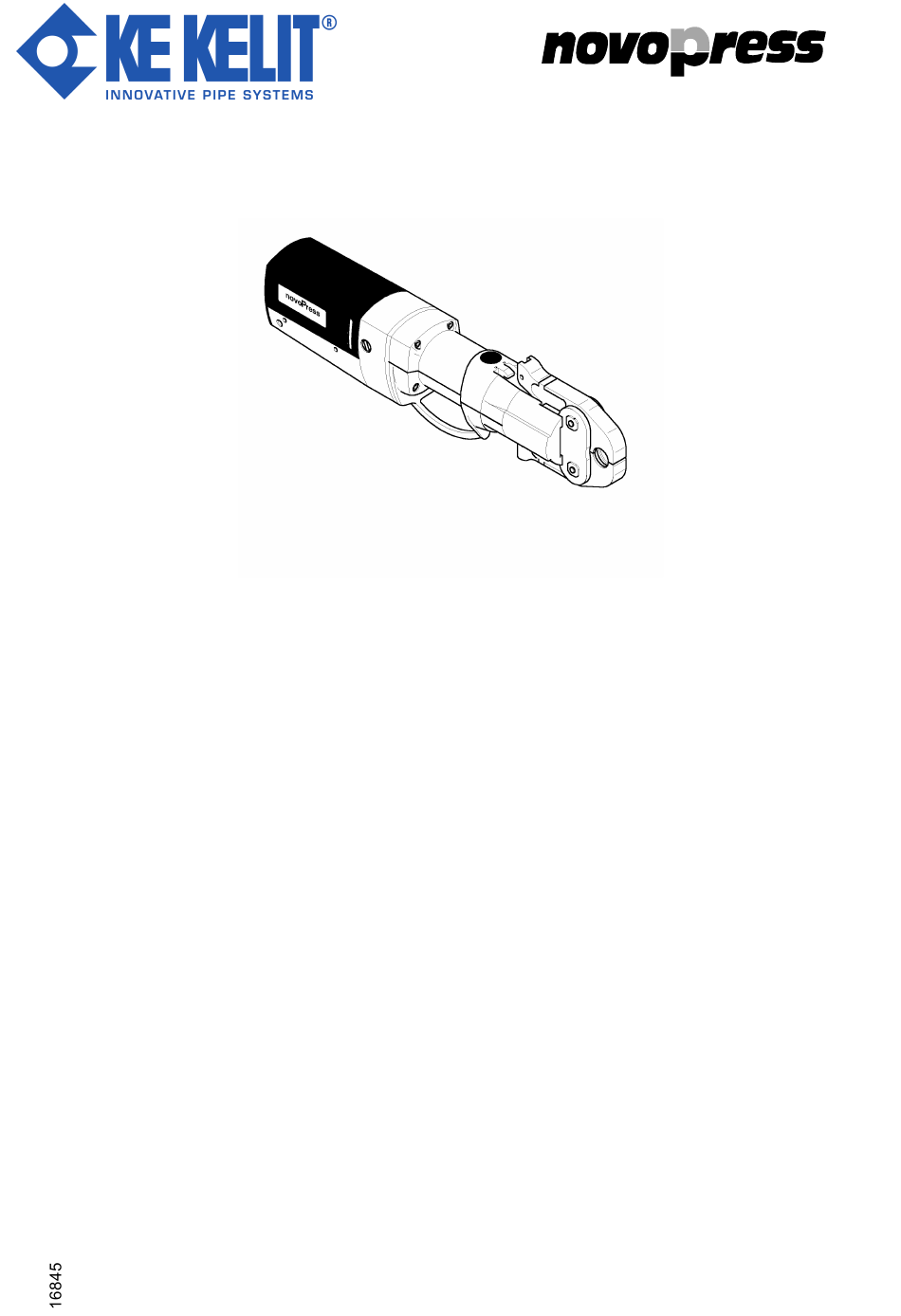

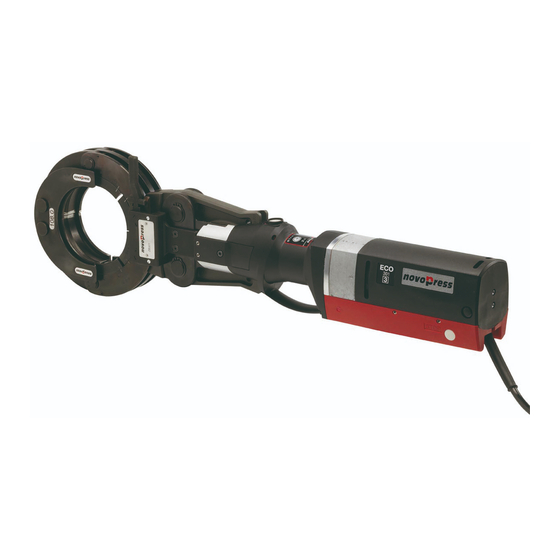

Page 1: Operating Instructions
ECO 301 Operating Instructions 40530\b08int 1108... -
Page 4: Technical Specifications
Height: approx. 110 mm / width: approx. 85 mm / length: approx. 420 mm / weight: approx. 4.7 kg Intended purpose The press tool is only suitable for use with Novopress press jaws and intermediate jaws. These press jaws/intermediate jaws are normally offered by the system suppliers. - Page 5 Automatic press facility The tool features an automatic pressing facility. This ensures a full pressing at all times. For safety reasons, the automatic pressing facility only switches off after reaching a specific pressing force or travelling a specific distance (after approx. 2 seconds). Until then, the pressing process can be interrupted at any time by releasing the Start button (1).
- Page 6 Press collar Important note! Intermediate jaw ZB 301 or ZB 302 must be used for nominal sizes 42 and 54. Intermediate jaw ZB 321 is used for nominal sizes 76.1; 88.9 and 108.0. Nominal sizes 76.1and 88.9 are pressed in one work operation. Nominal size 108.0 is first pre-pressed with intermediate jaw ZB 321.
-
Page 7: Cleaning And Lubrication
RE-PRESSING Re-pressing is always necessary if pressing has not been fully completed. There are a few peculiarities that must be observed for re-pressing, in contrast to pressing. Ensure that the claws of the intermediate jaw enclasp the press collar pins during the re-pressing process. During the re-pressing, the tool can be started, even though the claws are not enclasping the pins properly. -
Page 8: Maintenance And Repair
Check moving segments (C), catch (V) and curved sections (D) for ease of action. Once a year: Have press jaws, intermediate jaws, press collars and press tools checked by an authorised NOVOPRESS workshop. (Also see warranty conditions for new equipment) Use GENUINE NOVOPRESS REPLACEMENT PARTS ONLY. - Page 9 Cause Remedy Press tool faulty. Return press tool to Novopress for inspection. • Press tool is overloaded. • Use only permitted materials (see “Intended use”). • Should this fault occur repeatedly in succession, allow the press tool to cool down fully.
-
Page 10: Repairs / Service
Repairs / Service...
