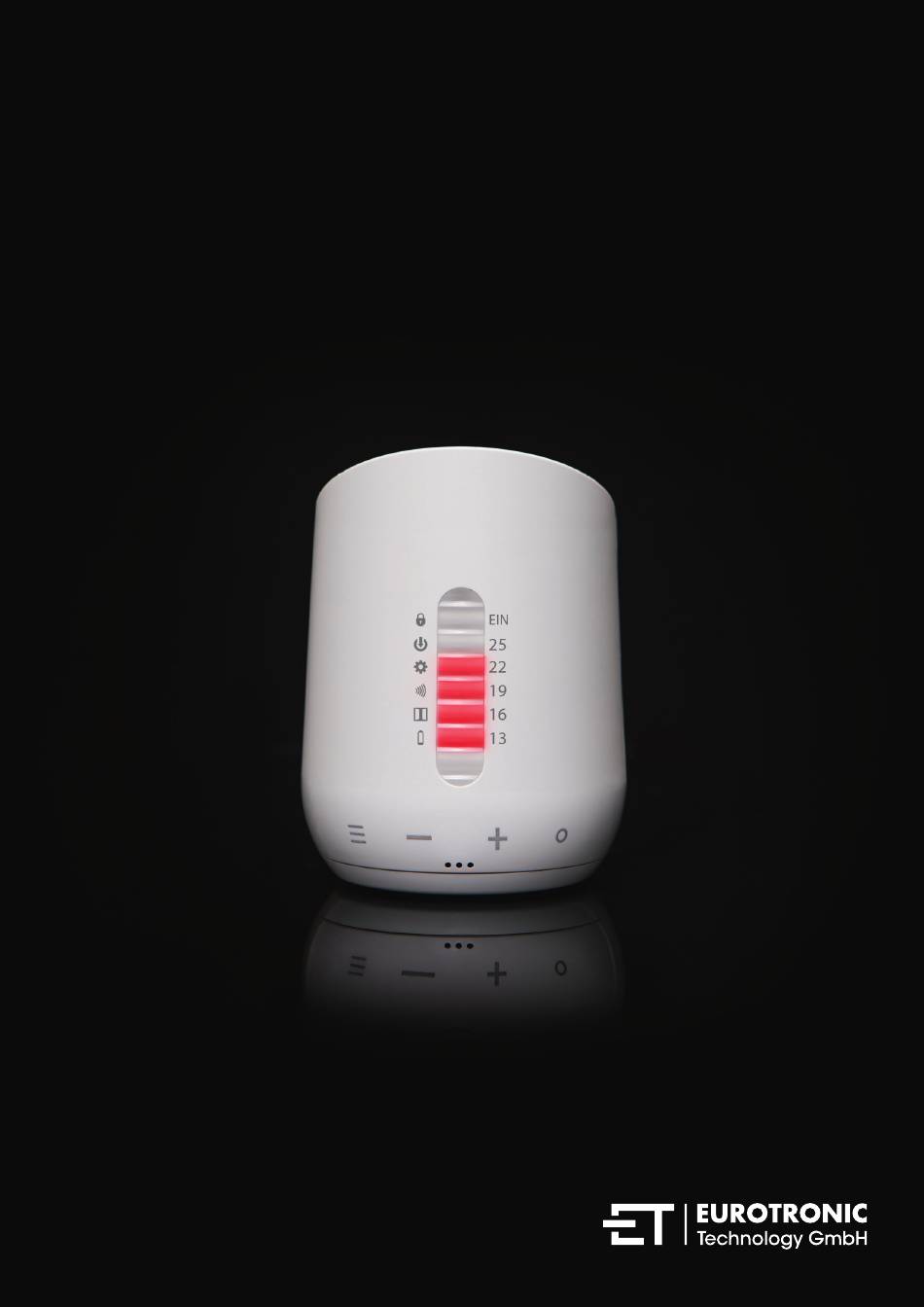

- Page 1 GENIUS THE INGENIOUS ENERGY-SAVING CONTROLLER INSTALLATION & OPERATION GUIDE GENIUS LED100 Eurotronic Technology GmbH Südweg 1 | 36396 Steinau-Ulmbach | Germany www.eurotronic.org...
-
Page 2: Table Of Contents
TABLE OF CONTENTS GENIUS LED 100 The following operating instructions will guide you during commissioning and use of your GENIUS LED 100 and answer all essential questions. Please read these operating instructions carefully before using your GENIUS LED 100. Scope of Delivery Warning / Safety Introduction GENIUS LED 100 Controls and Display Elements... -
Page 3: Scope Of Delivery
1. SCOPE OF DELIVERY GENIUS LED 100 1x GENIUS LED 100 1x Quick Start Guide 3x Adapters (Danfoss RA / RAV / RAVL) 1x Screw for adapter NOTE: The following figures are for illustrative purpose only and can differ from the real product. RAV Pin* RAVL GENIUS LED 100... -
Page 4: Warning / Safety
- Operate GENIUS LED100 only as described in the user manual - GENIUS LED100 should only be put to use in a dry and dust-free place, away from direct sunlight. - Do not keep using the device when ther is obvious damage. -
Page 5: Introduction Genius Led100
GENIUS LED 100 Thank you for purchasing a product from Eurotronic Technology GmbH. This device is designed to adjust the tempera- ture in your rooms comfortably and completely according to your needs while helping you to reduce your heating costs effectively. -
Page 6: Controls And Display Elements
4. CONTROLS AND DISPLAY ELEMENTS GENIUS LED 100 To enter the menu, press the MENU button. Use the PLUS/MINUS buttons to navigate through the menu. In normal mode, you can set the temperature with PLUS and MINUS. Key lock (S. 16) Self-Learning-Mode (S. -
Page 7: Installation And Start-Up
5. INSTALLATION AND START-UP GENIUS LED 100 5.1 INSERTING/CHANGING BATTERIES 1. Remove the battery cover by pulling it upwards at the notch (Fig. 1). 2. Now insert the batteries. Pay attention to the correct polarity! Do not use rechargeable batteries. 3. -
Page 8: Installation At The Radiator
5.2 INSTALLATION AT THE RADIATOR GENIUS LED 100 GENIUS LED 100 can easily be mounted on all known valve bodies (see adapter list at: https:/ /eurotronic.org/service/ faq). 1. Unscrew the old thermostatic head completely, loosen the fastening and pull it off the valve (Fig. 3) 2. -
Page 9: Adapters
M28 x 1,0 mm; Pettinaroli M28 x 1,5 mm; T+A M28 x 1,5 mm; Gampper 1/2/6; Danfoss RA/RAV/RAVL. For additional adapters, please visit: http:/ /shop.eurotronic.org If you are not sure which valve you have, please visit: www.eurotronic.org/produkte/faq/ and check the adapter list. RAV Pin... -
Page 10: Adaptation
5.4 ADAPTATION GENIUS LED 100 After installation, GENIUS LED 100 can start adapting. The LED for Assembly/Disassembly is already flashing, con- firm the adaptation by pressing and holding the OK/SET button (3 seconds). The adaptation starts after confirmation. The device now adapts to the stroke of your valve body. To do this, the valve is now opened and closed several times to learn the respective end points. -
Page 11: Main Functions
6. MAIN FUNCTIONS GENIUS LED 100 6.1 TEMPERATURE SETTING The temperature can be set as desired using the PLUS and MINUS buttons. The temperature is always increased or decreased in 1.5° steps. All 6 LEDs on > 28° = heating ON (valve fully open, no regulation) LED 1 to 5 on, 6 flashes: 28°... -
Page 12: Fast-Link-Technology
Using Fast-Link technology, the settings are then transmitted to the controller simply by holding the smartphone on to it. To use Fast-Link you need the Eurotronic GENIUS App. Download the free „Eurotronic GENIUS“ application from the Apple App Store (iOS) or Google Play Store (Android) to your smartphone or tablet. -
Page 13: Genius App
GENIUS LED 100 Back to the home page. Please select your device: GENIUS LED100. By „wiping further“ you can display the assembly instructions in four steps. NOTE: Please remember to transmit the data via Fast-Link as soon as you have made a change in the app. -
Page 14: Temperature (App)
7.2 TEMPERATURE (APP) GENIUS LED 100 With the setting wheel you can set your comfort temperature and economy temperature, which will then be used for your The temperature shown above is the one currently being set. Determine the temperature with which the heating is to be car- ried out during the heating times. -
Page 15: Holiday Function (App)
7.4 HOLIDAY FUNCTION (APP) GENIUS LED 100 Select the time of your departure. Select the time of your return. Determine the room tem- perature for the duration of your absence. Select your month After you have created and day and con- your holiday profile, Select your month and day firm with OK. -
Page 16: Further Functions
8. FURTHER FUNCTIONS GENIUS LED 100 Window-open-detection: The GENIUS LED 100 automatically closes the heating valve to save energy if you open a window and the temperature thereby drops significantly. If window-open detection is active, the window-open detec- tion LED lights up. -
Page 17: Error Messages And Help
If required, use a suitable adapter from the • GENIUS LED 100 is not mounted included accessories or other adapters from on the radiator our web shop at www.eurotronic.org. • Valve stroke too short • no valve movement possible The LED for battery flashes Battery low Insert new batteries. -
Page 18: Technical Specifications
Degree of pollution Technical modifications are subject to change. All descriptions for compatibility are without engagement. 12. SUPPORT AND CONTACT For technical support for the Eurotronic products, please contact Eurotronic via e-mail or telephone: Customer Service: Eurotronic Technology GmbH Südweg 1... -
Page 19: Environmental Information
Declaration of Conformity: Eurotronic Technology GmbH hereby declares that the GENIUS LED 100 radiator thermostat complies with all applicable European Economic Area regulations of Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following Internet address: https:/ /eurotronic.org/service/downloads. - Page 20 Eurotronic Technology GmbH Südweg 1 | 36396 Steinau-Ulmbach | Germany www.eurotronic.org 08/2019...
