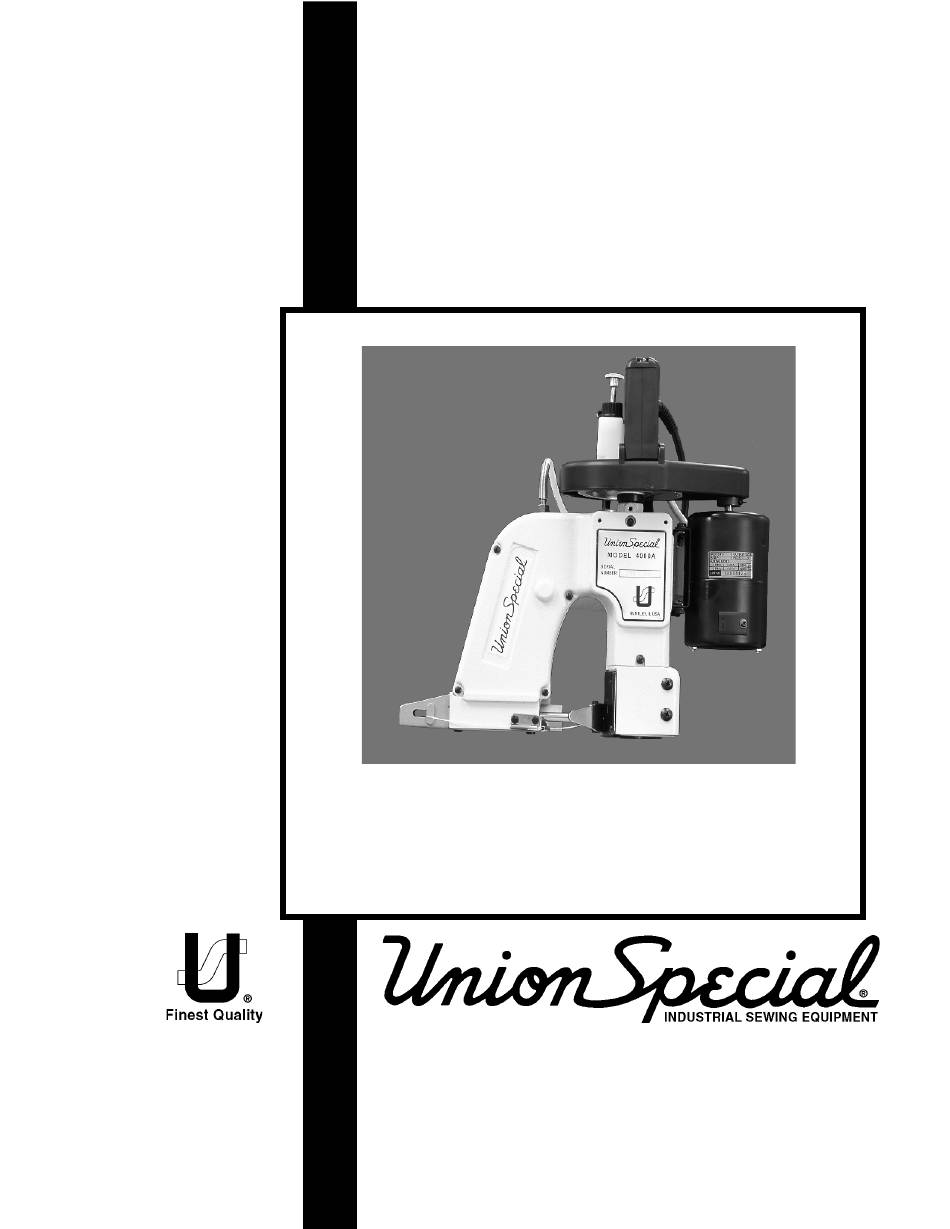

- Page 1 CATALOG NO. INSTRUCTIONS AND PT0802 ILLUSTRATED PARTS LIST First Edition INSTRUCCIONES Y LISTADO ILUSTRADO DE PARTES STYLES 4000A 4000B CLASS 4000 SERIES PORTABLE BAG CLOSING MACHINES CLASE SERIE 4000 MAQUINA CERRADORA DE SACOS, PORTATIL 02-19-09...
- Page 2 CATALOG NO. PT0802 ADJUSTNG INSTRUCTIONS AND ILLUSTRATED PARTS LIST FOR CLASS 4000 PORTABLE BAG CLOSING MACHINE CATALOGO NO. PT0802 INSTRUCCIONES DE ADJUSTE Y CLASE 4000 MAQUINA CERRADORA DE SACOS, PORTATIL STYLE ESTILO 4000A 4000B First Edition Primera Edicion © 2009 PRINTED 2009 IN USA IMPRESO 2009 EN USA INFORMATION SUBJECT TO...
-
Page 3: Safety Rules
INSTRUCCIONES DE SEGURIDAD SAFETY RULES Reglamentacion sobre el servicio General operating instructions Antes de empezar a trabajar con la máquina, lea con 1. Before putting the machine into service carefully atención sus instrucciones. Solo deberá permitirse el read the instructuions. arranque de cada máquina despuès de leidas sus The starting of each machine is only permitted after instrucciones y por un operario cualificado. - Page 4 Machine Description: Descripción de la Maquina: Portable bag closing machine with electric motor Máquina cerradora de sacos portatil con motor eléctrico and thread chain cutter. For closing filled bags y cortador de cadeneta de hilo. Para cerrar bolsas y sacos and sacks made of jute, burlap, cotton, linen, pa- hechos de yute, arpillera, algodon, lino, papel, plástico, etc.
- Page 5 Fig 1 THREADING DIAGRAM DIAGRAMA DE ENHEBRADO...
- Page 6 Lubrication: Use straight mineral oil with Saybolt viscosity of 90 to 105 seconds at 100 degrees F. This is equivalent to UNION SPECIAL Specification No. 175. The oil has been drained from the oil pump reservoir, A (fig. 2) before shipping and the reservoir must be filled before starting to operate.
- Page 7 MACHINE COMPONENTS COMPONENTE DE LA MAQUINA Fig 3...
-
Page 8: Changing The Needle
ADJUSTMENTS/AJUSTES CHANGING THE NEEDLE Loosen needle bar nut A (Fig. 4) and remove old needle. Locate new D5 (size 200/080) needle and insert needle into needle bar as far as it will go. Turn needle so the the scarf of the needle is facing right and the long groove is facing to the left. - Page 9 ADJUSTMENTS CONTINUED/CONTINUACION DE LOS AJUSTES LOOPER GAUGE SETTING Insert a new needle, type and size specified. Looper gauge is 1/32 inch (0.8mm) which is the distance from point of looper ( Fig. 6) to left edge of needle when looper is at extreme backstroke.
-
Page 10: Needle Height
ADJUSTMENTS CONTINUED/CONTINUACION DE LOS AJUSTES NEEDLE HEIGHT Needle height is correct when the tip of the looper is 1/64 (0.4mm) past the front edge of the needle and the bottom of the looper is even with the top of the needle eye (Fig 8). To adjust, remove the looper cover and needle bar guard, then loosen the needle bar clamping screw (Fig 3) and move needle bar up or down so the top of the needle... -
Page 11: Feed Dog Height
ADJUSTMENTS CONTINUED/CONTINUACION DE LOS AJUSTE FEED DOG HEIGHT The feed dog should be set 3/32" (2.4mm) above the top of the throat plate at its highest point. To adjust, loosen the feed dog screw (Fig. 3 page 7) and move the feed dog up or down as required. -
Page 12: Belt Tension
ADJUSTMENTS CONTINUED/CONTINUACION DE LOS AJUSTE BELT TENSION The belt must remain slightly flexible with 1/8" to 3/16" (3-4mm) movement (Fig. 12). Apply tension to the belt by opening the motor mount hinge and tightening the 2 screw A (Fig. 13). TENSION DE LA CORREA La correa deberá... - Page 13 TROUBLESHOOTING/PROBLEMAS DE FUNCIONAMIENTO 1) Stitch is too loose. 1) Puntada muy suelta. A) Check the thread tension. A) Revise la tensión de hilo. B) Check the sharpness of the feed B) Revise el filo de los dientes del dog and throat plate teeth. alimentador dentado y de la placa de garganta.
- Page 14 TROUBLESHOOTING/PROBLEMAS DE FUNCIONAMINETO 6) The machine is skipping stitches or does 6) La máquina está saltando puntasdas o no not make a thread chain at the end of the hace una cadena de hilo al final de la bag. bolsa. A) Check thread tension A) Revise la tensión del hilo.
- Page 15 SPARE PARTS/PARTES DE REPUESTO...
- Page 17 HOUSING, NEEDLE LEVER, PRESSER FOOT & THROAT PLATE PARTS Ref. Amt. Part No. Description Req. Housing Assembly (Not available)..............1-1. 4001201-1 Set Screw, #8-32N.C. X 3/16"................1-2. 4001201-2 Spring ........................1-3. 4001201-3 Joint........................1-4. 4001201-4 Oil pipe........................1-5. 4001201-5 Nut....
- Page 19 HOUSING, NEEDLE LEVER, PRESSER FOOT & THROAT PLATE PARTS (CONT'D) Ref. Amt. Part No. Description Req. 4001238 Needle Bar Lever Clamp Assenmbly............4001238A 38A. Needle BarLever Clamp Assembly with Clamp.......... 4001239 39.. Spring......................... 40.. 4001240 Flat Washer....................... 4001241 41.. Screw, #10-32N.F. X 1/2"................42..
- Page 21 MAIN SHAFT & LOOPER ASSEMBLY PARTS Ref. Amt. Part No. Description Req. 52.. 4001452 Mainshaft......................52-1- 4001452-1 Screw......................52-2.. 4001452-2 Oil Felt......................53.. 4001453 Collar, Mainshaft.................... 53-1.. 4001453-1 Screw, #5-40N.C. X 3/8"................54.. 4001454 "O" Ring......................55.. 4001455 Washer, thrust....................Bushing, Mainshaft (rear)................
- Page 23 HANDLE & ELECTRIC DRIVE PARTS Amt. Ref. Description Req. Part No. Oil Pump Assembly..................4 0 0 1 6 0 1 Screw, #8-32N.C. X 1/2" ..................4001603 Spring, Garter ...................... 4001604 Tubing, Oil Pump (4X6X10.5)................4001605 5-1. Tubing, Oil Pump (4X6X20.5)................4001605-1 "O"...
- Page 25 MOTOR PARTS PARTS Amt. Ref. Description Req. Part No. 4002601 Cord ......................4002602 Strain Relief Busings................... 4002603 Case A........................ 4002604 Stator Assembly for 110V................4002604-1 Stator Assembly for 220V................4002605 Ball Bearing....................... 4002607 Armature Assembly for 110V................. 4002607-1 Armature Assembly for 220V................4002608 C-Ring......................
- Page 27 ACCESSORIES Ref. Amt. Part No. Description Req. Accessory Bag .................... 28604R Oil ........................4002403 Spanner Wrench................... 22933105 Screwdriver...................... 4002405 2.0mm Allen Wrench..................WR64 3/32" Allen Wrench..................6-1. W R 7 0 7/64" Allen Wrench..................W R 7 5 5.0mm Allen Wrench..................7-1.
