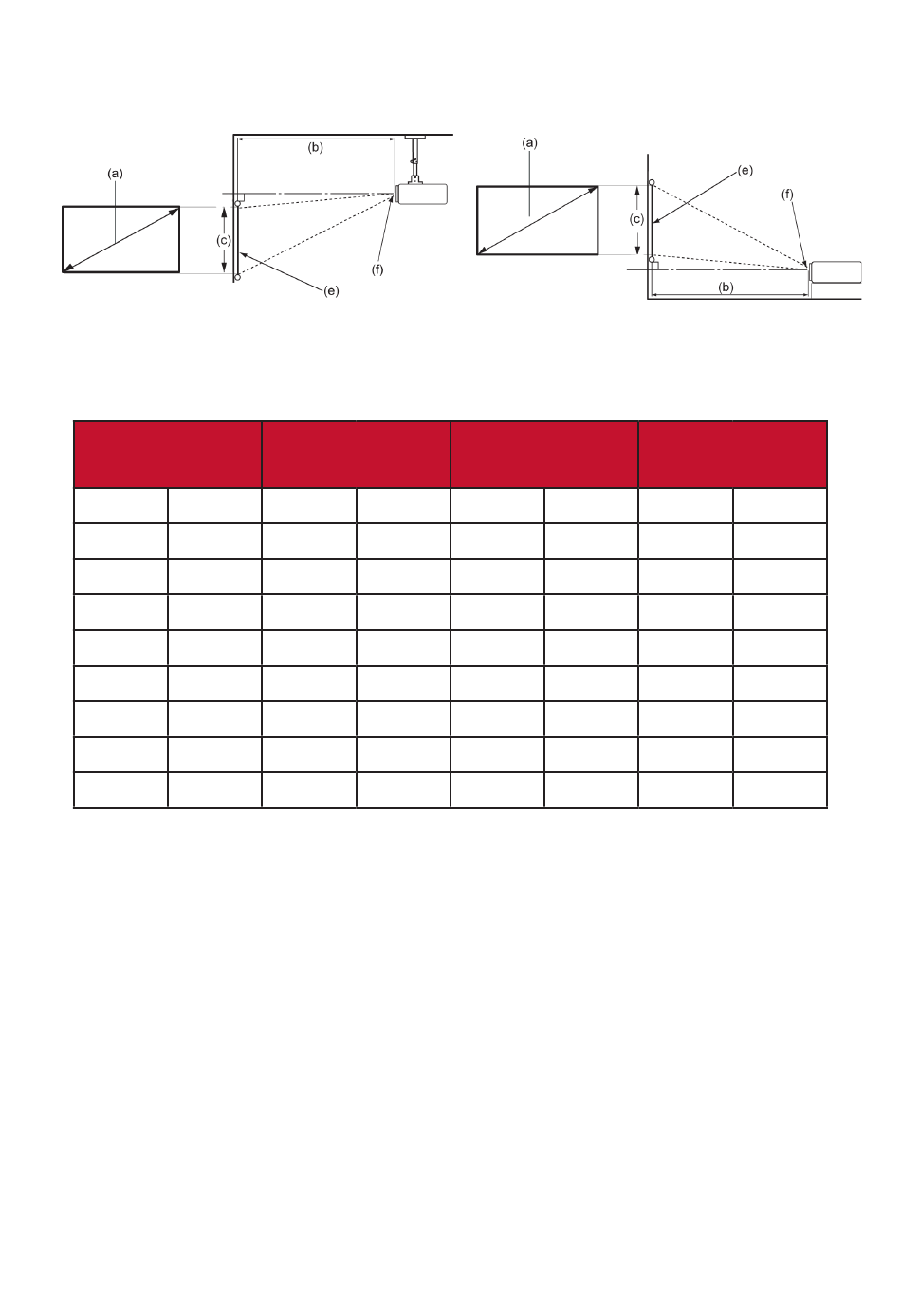

Projection Dimensions
•
16:9 Image on a 16:9 Screen
NOTE:
(e) = Screen / (f) = Center of Lens
16:9 Image on a 16:9 Screen
(a) Screen Size
in.
30
40
50
60
70
80
90
100
NOTE:
There is a 3% tolerance among these numbers due to optical component
variations. It is recommended to physically test the projection size and
distance before permanently installing the projector.
(b) Projection
Distance
cm
in.
76.2
32.16
101.6
42.88
127
53.6
152.4
64.32
177.8
75.04
203.2
85.76
228.6
96.48
254
107.2
(c) Image Height
m
in.
0.82
14.7
1.09
19.6
1.36
24.5
1.63
29.4
1.91
34.3
2.18
39.2
2.45
44.1
2.72
49
14 14
Image Width
cm
in.
37.36
26.15
49.81
34.86
62.26
43.58
74.72
52.29
87.17
61.01
99.62
69.73
112.07
78.44
124.53
87.16
mm
664
886
1107
1328
1550
1771
1992
2214
