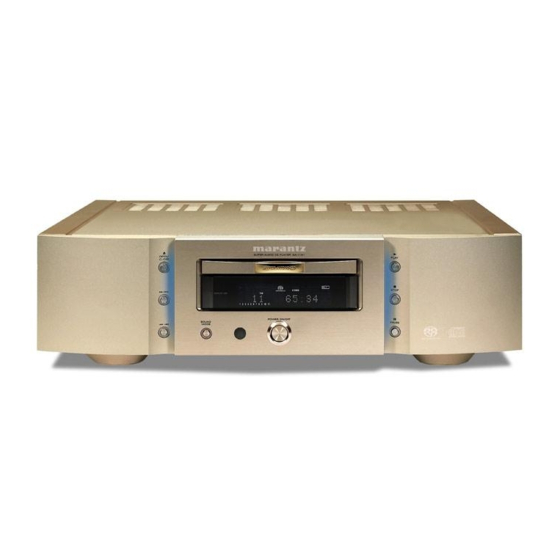

Marantz SA-11S1 Service Manual

Super audio cd player

Hide thumbs Also See for SA-11S1:

Service manual (81 pages)

User manual (29 pages)

Specification sheet (1 page)

Table Of Contents

Table of Contents

Quick Links

Need help?

Do you have a question about the SA-11S1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Marantz SA-11S1

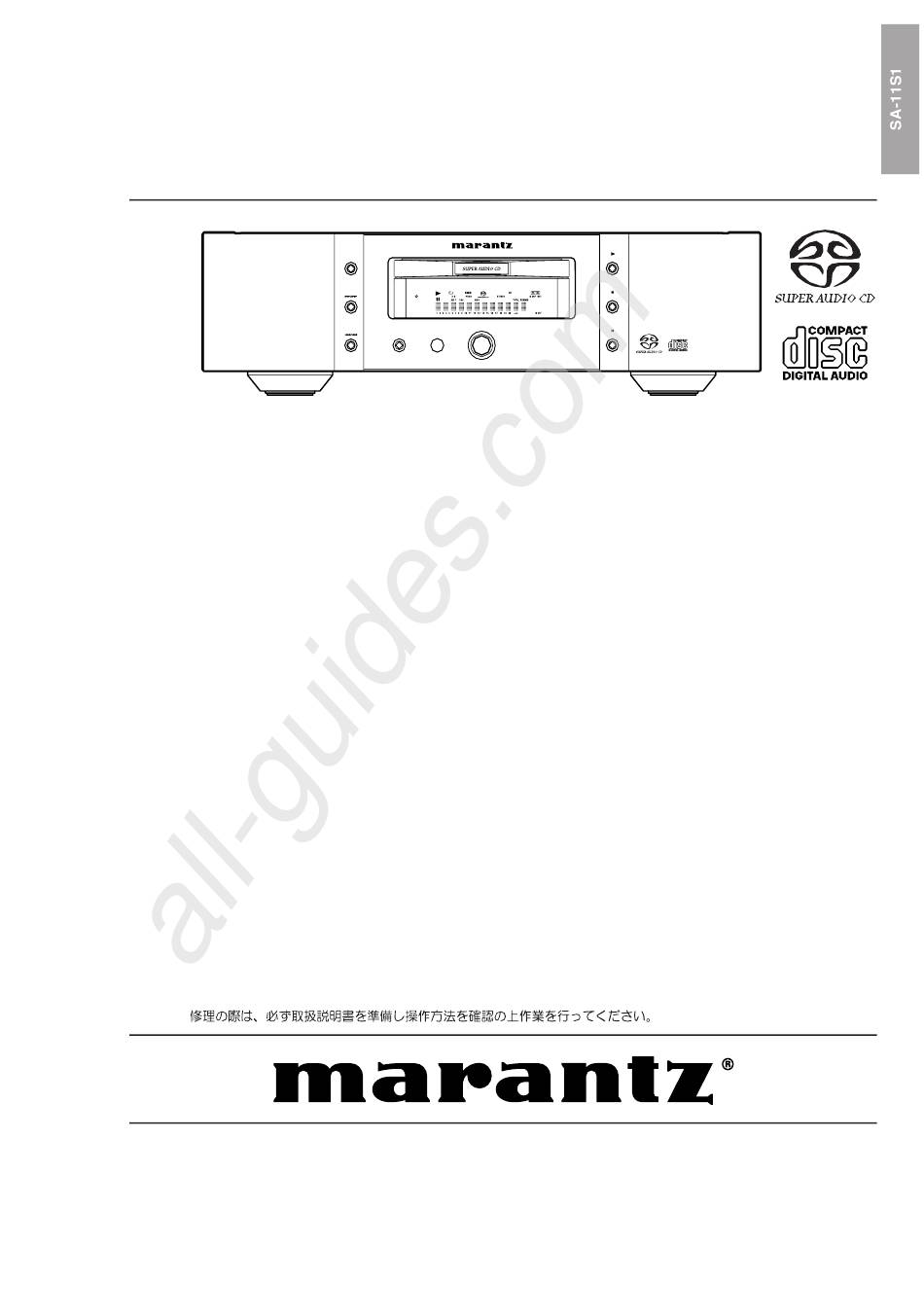

Page 1 All manuals and user guides at all-guides.com Service SA-11S1 / F1N /L1G /N1G /S1G /U1G /N1S Manual Super Audio CD Player SUPER AUDIO CD PLAYER SA-11S1 OPEN/ CLOSE PLAY DISPLAY OFF STOP SOUND POWER ON/OFF MODE PAUSE TABLE OF CONTENTS...
Page 2 MARANTZ Parts for your equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified.
Page 3: Technical Specifications
All manuals and user guides at all-guides.com 1. TECHNICAL SPECIFICATIONS Super Audio CD Audio CD Audio Characteristics Analog output Channels 2channels 2channels Frequency range 2Hz — 100kHz 2Hz — 20kHz Frequency characteristics 2Hz — 50kHz (-3dB) 2Hz — 20kHz Dynamic range 114dB (Filter 3) 100dB (Filter 3) THD (1kHz)
Page 4: Service Hints And Tools
All manuals and user guides at all-guides.com 2. SERVICE HINTS AND TOOLS SERVICE HINTS SERVICE TOOLS Audio signals disc 4822 397 30184 Disc without errors (SBC444)+ Disc with DO errors, black spots and fingerprints (SBC444A) 4822 397 30245 Disc (65 min 1kHz) without no pause 4822 397 30155 Max.
Page 5: Warning And Laser Safety Instructions
All manuals and user guides at all-guides.com 3. WARNING AND LASER SAFETY INSTRUCTIONS WARNING WAARSCHUWING All ICs and many other semi-conductors are Alle IC’s en vele andere halfgeleiders zijn susceptible to electrostatic discharges (ESD). gevoelig voor elektrostatische ontladingen Careless handling during repair can reduce (ESD).
Page 6: Taking The Disc Out Of Emergency
All manuals and user guides at all-guides.com 4. TAKING THE DISC OUT OF EMERGENCY To open the stucked tray, push the eject lever. Top View Push Eject lever This picture shows the unit upside down. The eject lever is pointed by the arrow. 5.
Page 7 All manuals and user guides at all-guides.com The error code is indicated when a problem DISC is inserted rst. Press the POWER button While pressing PLAY and OPEN/CLOSE Button “SA11S1” is displayed Press< > Version of Backend(IC731) µ-P is displayed “B/E VXX.XX”...
Page 8: L/R Output Level Adjustment Procedure
All manuals and user guides at all-guides.com 6. L/R OUTPUT LEVEL ADJUSTMENT 6. L/R出力レベル調整手順 PROCEDURE 調整が必要な場合 Q201 または Q251 を交換した時に調整が必要になります。 Cases adjustment is needs When a Q201 or Q251 is replaced. 必要機器交流電圧計 2 台 (またはオシロスコープ) Necessary equipments CDテストディスク CBC429 Audio signal disc1 (4822-397- AC voltmeter 2 sets (or Oscilloscope) 30155) CD TEST DISC: CBC429 Audio signal disc1 (4822-397-30155) 接続図...
Page 9 All manuals and user guides at all-guides.com 7. WIRING DIAGRAM OUTPUT OUTPUT 5201 AC IN (00MWG18AK201-) 5101 POWER SUPPLY PCB (00MWG18AK100-) J401 J451 JH01 DSP DAC AUDIO PCB J855 J405 J802 J801 JH04 JH07 JH06 Super Audio CD MODULE UNIT J103 CY082 CY251...
Page 10 All manuals and user guides at all-guides.com 8. BLOCK DIAGRAM BESSEL FILTER STAGE SA-11S1 Engine DAPC FPGA XC2S15 SM5866AS Differencial EM636165TS-7 M11L1616SA-45 DACL COAX HDAM D-RAM(16M) SDRAM(16M) TURNTABLE DALR +L.A DSD data DARD Current AMP DSD/CD RFAC data switch Double HDAM...
Page 11 All manuals and user guides at all-guides.com 9. SCHEMATIC DIAGRAM DSP DAC AUDIO 1/3 +3.3D DATA INTERFACE +3.3D J104 WF07 J105 15FMN-BMTTN-A-TFT C128 FTCK 0.1u +15V FTMS +15V R109 R108 FTDI FLMP 3.3k Q107 FLMP C109 FTDO 9 10 F_RS 0.1u F_RS DISPLED...
Page 12 All manuals and user guides at all-guides.com DSP DAC AUDIO 2/3 Q111 2SC4116-GR/BL-TE85L R152 +3.3D N-SH DC-F +3.3D +3.3D +3.3D R146 R145 Q110 DTC124EUA T106 C143 C144 MODDI 0.1u 22u/6 C157 0.1u DLDA DLDA DRDA DRDA MODD 192FS R140 MODB 192FS FILT3 FILT3...
Page 13 All manuals and user guides at all-guides.com +11V DSP DAC AUDIO 3/3 R414 R417 Q414 R211 R212 R303 R304 2SC2705/TPE6 C221 D202 D302 C321 R404 R405 D402 C421 470u/16 1SS302/TE85L Q408 1SS302/TE85L 470u/16 1SS302/TE85L 470u/16 2SA1312 BL DAC/FILTER/BALANCE Q216 2SK170-V/TPE2 Q306 Q213 Q214...
Page 14 All manuals and user guides at all-guides.com 5103 5102 5104 (00MWG18AK103-) (00MWG18AK102-) (00MWG18AK104-) OPEN/CLOSE NEXT, PREV FRONT PLAY, STOP, PAUSE TACT SW TACT SW PCB SY31 SY41 SKHVBF/SOR-124HS SKHVBF/SOR-124HS RY41 OPEN/CLOSE PLAY SY32 SY42 SKHVBF/SOR-124HS SKHVBF/SOR-124HS RY44 NEXT STOP LY41 RY31 BLM11B601SPT +15VF...
Page 15 All manuals and user guides at all-guides.com POWER SUPPLY RC5F D831 D833 RC5F Q831 SF51 QS041 QS041 NJM7808FA LF51 RF57 RF52 RF53 BL02RN2 4.7K 4.7K C834 C833 D832 D834 C831 0.1u RF56 QS041 QS041 4700u/16 2200u/16 4.7K QF51 RC5S CF54 CF53 2SA1048 GNDD...
Page 16 All manuals and user guides at all-guides.com Q110 10. PARTS LOCATION Q481 Q477 Q382 Q377 Q277 Q490 Q485 Q376 Q276 Q282 Q483 Q484 Q478 Q476 Q488 Q486 Q480 Q380 Q378 Q280 Q278 Q251 Q106 Q102 Q279 Q489 Q487 Q482 Q479 Q452 Q381 Q379...
Page 17 All manuals and user guides at all-guides.com QY41 QY44 5104 00MWG18AK104- QY02 QY42 QY43 PLAY, STOP, PAUSE TACT SW PCB QY07 QY03 QY04 5102 00MWG18AK102- FRONT PCB 5103 00MWG18AK103- OPEN/CLOSE, NEXT, PREV TACT SW PCB 5105 00MWG18AK105- FRONT DISPLAY LED PCB 鉛フリー半田...
Page 18 All manuals and user guides at all-guides.com QF52 QF51 Q856 QN01 QN06 Q855 Q857 Q853 QT01 Q851 Q852 Q822 Q821 Q801 Q831 Q811 Q823 Q824 5201 00MWG18AK201- POWER SUPPLY PCB 鉛フリー半田半田付けには、鉛フリー半田（Sn-Ag-Cu）を使用してください。 Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu). 1-16...
Page 19 All manuals and user guides at all-guides.com 11. IC DATA 5101 / Q101: FPGA XC2S15 Signal Name Function Pin Usage Pin Name 1 GND 2 TMS JTAG terminal 3 MODE Mode SW for SACD or CD input 4 IO_VREF_7 IO_VREF_7 5 DALR Word CLK for CD input 6 UNUSED...
Page 20 All manuals and user guides at all-guides.com Signal Name Function Pin Usage Pin Name 74 IO_DOUT_BUSY IO_DOUT_BUSY 75 CCLK Connect to ROM(XCF01S)2pin CCLK 76 VCCO VCCO 3.3v Power supply pins for output drivers (subject to banking rules) 77 TDO JTAG terminal 78 GND 79 TDI JTAG terminal...
Page 21 All manuals and user guides at all-guides.com 5101 / Q102: AT49BV0001AT 1-19...
Page 22 All manuals and user guides at all-guides.com 5101 / Q106: DSP56364UM PROGRAM Y MEMORY MEMORY GPIO ESAI 0.5 K x 24 1.5K X 24 PROGRAM ROM 1K X 24 8K x 2 4 Bootstrap ROM PERIPHERAL 192 x 24 ME MOR Y EXPANSION EXPANSION AREA...
Page 23 All manuals and user guides at all-guides.com 5101 / Q107 XCF01F 5101 / Q201 SM5866 VCCJ (DNC) VCCO VCCINT VO20 (DNC) (DNC) View (DNC) OE/RESET (DNC) (DNC) Boundary Boundary 20-pin TSSOP Pin Name Scan Order Scan Function Pin Description (VO20) JTAG Clock Input.
Page 24: Exploded View And Parts List
All manuals and user guides at all-guides.com 12. EXPLODED VIEW AND PARTS LIST 1-22...
Page 25 ESCUTCHEON TRAY GL 150B /L1G 00M18AK063130 ESCUTCHEON ESCUTCHEON TRAY GL 150B /N1G 00M18AK063130 00M18AK063130 ESCUTCHEON ESCUTCHEON TRAY GL 150B /N1S 00M18AK063230 00M18AK063230 ESCUTCHEON ESCUTCHEON TRAY SL NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 1-23...
Page 26 FFC 1.0MM N=25 L=80 W103 00MYU15100520 FPC SMCD-15X100-BDX6-P1.0-S4 W801 00MYU13060520 FPC SMCD-13X60-BDX6-P1.0 UL2896 WY01 00MYU20060520 FPC SMCD-20X60-BDX6(BL)-P1.0-S4.0 WY02 00MYU04060520 FPC 2MCD-04X60-BDX6(BL)-P1.0-S4.0 WY03 00MYU08060520 FPC SMCD-8X60.0-BDX6-P1.0-S4 NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 1-24...
Page 27 MASTER CARTON 020S /N1S 00M18AK805010 MASS CARTON MASTER CARTON J051 00MZD00900100 CONNECTIVE CORD RCA RC-5 CORD 0.9M J082 00MZD01100010 CONNECTIVE CORD RCA CONNECTIVE CORD (GOLD) NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 1-25...
Page 28: Electrical Parts List
All manuals and user guides at all-guides.com 13. ELECTRICAL PARTS LIST NOTE ON SAFETY FOR FUSIBLE RESISTOR : PARTS INFORMATION RESISTORS The suppliers and their type numbers of fusible resistors 1) 00MGD05 × × × 140, Carbon film fixed resistor, ±5% 1/4W are as follows;...
Page 29 00MOA47701650 ELECT. CAP. 470 UF M 16V ARA 5101 C226 00MDF95331500 00MDF95331500 CHIP MICA UC342H3300J 330PF 500WV 5101 C227 00MDF95330500 00MDF95330500 CHIP MICA UC232H0330J 33PF 500WV NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 1-27...
Page 30 D202 00MHZ20018050 00MHZ20018050 CHIP DIODE 1SS302 (TOSHIBA) 5101 D226 00MHZ20007210 00MHZ20007210 CHIP DIODE IMN10 DIODE ARRAY 5101 D227 00MHZ20018050 00MHZ20018050 CHIP DIODE 1SS302 (TOSHIBA) NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 1-28...
Page 31 00MHX333241B0 00MHX333241B0 CHIP TR. 2SC3324 (B) 5101 Q266 00MHF201701H0 00MHF201701H0 F.E.T. 2SK170 V LANK TOSHIBA 5101 Q267 00MHF100741H0 00MHF100741H0 F.E.T. 2SJ74 V LANK TOSHIBA NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 1-29...
Page 32 00MHX333241B0 CHIP TR. 2SC3324 (B) 5101 Q438 00MHX333241B0 00MHX333241B0 CHIP TR. 2SC3324 (B) 5101 Q439 00MHT327052A0 00MHT327052A0 TRANSISTOR 2SC2705 O OR Y TAPING TOSHIBA NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 1-30...
Page 33 22K OHM +- 5% 1/16W 5101 R146 00MNN05223610 CHIP RESISTOR 22K OHM +- 5% 1/16W 5101 R147 00MNN05104610 CHIP RESISTOR 100K OHM +- 5% 1/16W NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 1-31...
Page 34 68K OHM +- 5% 1/16W 5102 RY11 00MNN05223610 CHIP RESISTOR 22K OHM +- 5% 1/16W 5102 RY12 00MNN05223610 CHIP RESISTOR 22K OHM +- 5% 1/16W NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 1-32...
Page 35 00MOB47803520 ELECT. CAP 4700UF M 35V FOR HIFI 5201 C855 00MOA10702550 ELECT. CAP. 100UF 25V ARA 5201 C856 00MOA10702550 ELECT. CAP. 100UF 25V ARA NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 1-33...
Page 36 00MFS20200200 FUSE # T2.0A 250V TR5 5201 FH02 /U1G 00MFS20250200 FUSE # T2.5A/250V TR5 NO.19372 (T 5201 FY01 /F1N 00MFS10125350 FUSE # 1.25A 125V UL,CSA,MITI NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 1-34...
Page 37 100K OHM +- 5% 1/6W 5201 SF51 00MSS02021150 00MSS02021150 SLIDE SWITCH SLIDE SWITCH INT/EXT 5201 SH01 00MSP01011990 00MSP01011990 PUSH SWITCH ! SDDLD1 POWER SWITCH TV-3 NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 1-35...
Page 38 All manuals and user guides at all-guides.com Personal notes: 1-36...
Page 39 All manuals and user guides at all-guides.com Mecha Loader and Mecha Traverse Super Audio CD Player : SA-11S1 TABLE OF CONTENTS SECTION 2 PAGE MECHA LOADER AND MECHA TRAVERSE 1. EXPLODED VIEW AND PARTS LIST..................2-1...
Page 40 90M-YU001350R FFC-0.5-24 L=80 9KA 2P70 6 TAPE TAPE W10X45 (NITTO NO.156) CUSHION CUSHION L 6X3Xt4 9KC 2G07 6 CUSHION CUSHION R 6X3Xt2 9KC 2G07 7 NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 41 All manuals and user guides at all-guides.com...
Page 42 All manuals and user guides at all-guides.com Personal notes:...
Page 43: Table Of Contents
All manuals and user guides at all-guides.com Super Audio CD PCB Module Super Audio CD Player : SA-11S1 TABLE OF CONTENTS SECTION 3 PAGE SUPER AUDIO CD PCB MODULE 1. IC DATA ............................3-1 2. BLOCK DIAGRAM ........................3-22 3. SCHEMATIC DIAGRAM ......................3-23 4.
Page 44: Ic Data
All manuals and user guides at all-guides.com 1. IC DATA IC502: CXD1885Q DRAM I/F PWM.FG VREFL TEST0 VREFH TEST1 TEST2 TEST3 TEST4 TEST5 TEST6 TEST7 TEST8 TEST9 TEST10 TEST11 TEST12 TEST13 TEST14 TEST15 LPF2 MODSEL0 LPF1 MODSEL1 VCOI MODSEL2 VFBC GIO0 GIO1 JMOUT...
Page 45 All manuals and user guides at all-guides.com IC502: CXD1885Q 16/4M DRAM ECC Core Memory Data manager Slicer Demodulation Video MPEG I/F CD-DSP (DDCD) Data-PLL VSTEM Serial ASP Serial I/F VSTEM Serial I/F Command CD-ROM DSP CLK/Mode Header Dec. Spindle Audio I/F Audio JTAG CMD/...
Page 46 All manuals and user guides at all-guides.com IC502: CXD1885Q Terminal Name I/O A/D Classiﬁ cation Function PU PD SMT 38 DVSS VDD & GND Digital Ground. 39 VDT5 D VSTEM A/V MPEG data output 5. 40 VDT4 D VSTEM A/V MPEG data output 4.
Page 47 All manuals and user guides at all-guides.com IC502: CXD1885Q Terminal Name I/O A/D Classiﬁ cation Function PU PD SMT 102 VREFH Max Reference Voltage input for ADC. (Internal Reference Voltage mode, it will be an output state) 103 VREFL Min Reference Voltage input for ADC. (Internal Reference Voltage mode, it will be an output state) 104 AVDD18 VDD &...
Page 48 All manuals and user guides at all-guides.com IC502: CXD1885Q Terminal Name I/O A/D Classiﬁ cation Function PU PD SMT 164 TEST5 D TEST/Monitor TEST I/O 5. 165 TEST6 D TEST/Monitor TEST I/O 6. 166 TEST7 D TEST/Monitor TEST I/O 7. 167 TEST8 D TEST/Monitor TEST I/O 8.
Page 49 All manuals and user guides at all-guides.com IC401: CXD2753R...
Page 50 All manuals and user guides at all-guides.com IC401: CXD2753R No. Pin Name I/O Functions 1 VSC It ﬁ xed to ground.( for Core) 2 XMSLAT Latch input for mCOM serial communication. 3 MSCK Shift clock input for mCOM serial communication. 4 MSDATI Data input for mCOM serial communication.
Page 51 All manuals and user guides at all-guides.com IC401: CXD2753R No. Pin Name I/O Functions 63 ZDFL O Lch zero-data detection ﬂ ag (at the time of mcom setup). It will be set to "H" if non-sound data continues 300 msecs. 64 DSAL O DSD data output terminal for Lch speaker.
Page 52 All manuals and user guides at all-guides.com IC401: CXD2753R No. Pin Name I/O Functions 123 WCK Operation clock for PSP physical disc mark detection. 124 WAVDD +2.5V Power. A/D Power supply for PSP physical disc mark detection. 125 WAVDD +2.5V Power. A/D Power supply for PSP physical disc mark detection. 126 WARFI Ai Analog RF signal input terminal for PSP physical disc mark detection.
Page 53 All manuals and user guides at all-guides.com IC731: M30624FGNGP No. Pin Port Function I/O Initial Mode Action Note Description (USER1:H/USER2:H) 1 P94/DA1/TB4IN MULT_LED MULTI SURROUND(LED L=ON) 2 P93/DA0/TB3IN DSCS1 CHIP SELECT for FRONT DAC 3 P92/TB2IN/SOUT3 SOUT3 DSDO CONTOROL SERIAL DATA for ALL CS4379 control data 4 P91/TB1IN/SIN3 USER1...
Page 54 All manuals and user guides at all-guides.com IC731: M30624FGNGP No. Pin Port Function I/O Initial Mode Action Note Description (USER1:H/USER2:H) 19 P81/TA4IN/U~ FS_SW DAC SYSTEM F78CLK SWITCH CD:Fix to Low SIGNAL(384fs/192fs) SACD:Fix to High 20 P80/TA4OUT/U TA4OUT TRAY CONTROL PWM SIGNAL 21 P77/TA3IN SELDSD SELECT for DSD SIGNAL(PLD)
Page 55 All manuals and user guides at all-guides.com IC731: M30624FGNGP No. Pin Port Function I/O Initial Mode Action Note Description (USER1:H/USER2:H) 70 P20/A0(/D0/?) ADRRES LINE 71 P17/D15/INT5~ ICLK IIC CLK FOR EE_ROM(AT24C04N) 72 P16/D14/INT4~ IDAT IIC DATA FOR EE_ROM(AT24C04N) 73 P15/D13/INT3~ OPN_SW TRAY OPEN DETECT SW 74 P14/D12...
Page 56 All manuals and user guides at all-guides.com IC7501: CDX1881AR MEVO MLPF MIRR LDON CXD1881AR RFAC CDPD DVDPD COLD DVDLD ATON ATOP RFSIN CD_E RFDC CD_F 3-13...
Page 57 All manuals and user guides at all-guides.com IC501: CDX1881AR HOLDEN FCCR b7-0 AGC HOLD CDR b6 FBCR b6-0 RFCR b3 CGR b1 PROGRAMMABLE OUTPUT INHIBIT DVDRFP INPUT EQUALIZER FULL WAVE BIAS FILTER CHARGE DVDRFN RECTIFIER DIFFERENTIATOR PUMP RFSIN SIGR b7-4 RFCR b5-4 INPUT IMP SEL SIGR b3...
Page 58 All manuals and user guides at all-guides.com IC501: CDX1881AR Power Supply Pins Name I/O Function Power for RF and serial port Power for servo GND for RF and serial port GND for servo Power for output buffer Reference Power for servo output Input Pins Name I/O Function...
Page 59 All manuals and user guides at all-guides.com IC402: 16M SDRAM (EM636165TS-7 etc) Terminal Function Pin No. Pin Name Symbol Function Power Supply/Ground Power and ground for the input buffer and the core logic Data Input/Output Data input/output are mutiplexed on the same pin Data Input/Output Data input/output are mutiplexed on the same pin Data Output Power/Ground...
Page 60 All manuals and user guides at all-guides.com IC508: FAN8042 IN1+ DO1+ IN1- DO1- OUT1 DO2+ IN2+ DO2- IN2- DO3+ FAN8042 OUT2 DO3- IN3+ DO4+ DO4- IN3- OUT3 DO5+ IN4+ DO5- 3-17...
Page 61 All manuals and user guides at all-guides.com IC508: FAN8042 No. Pin Name I/O Pin Function Description 1 IN1+ I CH1 op-amp input (+) 2 IN1- I CH1 op-amp input (-) 3 OUT1 O CH1 op-amp output 4 IN2+ I CH2 op-amp input (+) 5 IN2- I CH2 op-amp input (-) 6 GND...
Page 62 All manuals and user guides at all-guides.com IC508: FAN8042 Internal Block Diagram OPOUT2 SVCC OPIN2+ OPIN1- OPIN1+ OPOUT1 VREF OPIN2- PS PVCC1 POWER SAVE IN1+ DO1+ 40 K DO1- IN1- 10 K DO2+ OUT1 10 K IN2+ DO2- 10 K IN2- DO3+ 10 K...
Page 63 All manuals and user guides at all-guides.com IC503: M11L16161SA-45T I/O0 I/O15 I/O1 I/O14 I/O2 I/O13 I/O3 I/O12 I/O4 I/O11 I/O5 I/O10 I/O6 I/O9 I/O7 I/O8 CASL CASR PIN DESCRIPTIONS PIN NO. PIN NAME TYPE DESCRIPTION (SOJ Package) Address Input Row Address:A0~A9 17~20,23~28 A0~A9 Input...
Page 64 All manuals and user guides at all-guides.com IC733: S-80843C N.C. IC734: TC74VHC74FT IC736: TC74VHC157FT IC737: AT24C04 Pin Configurations Function Pin Name A0 - A2 Address lnputs Sedrial Data Sedrial Clock lnput Write Protect No Connect TRASISTORS DTA114EK DTA Series DTC Series DTC114EK VIEW DTA114EK...
Page 65: Block Diagram
All manuals and user guides at all-guides.com 2. BLOCK DIAGRAM EM636165TS-7 M11L16161SA-45T IC402 IC503 D-RAM(16M) SDRAM(16M) TURNTABLE RFAC LRCK CXD1881AR photo AD6062 CXD2753R DAPC IC501 IC403 IC401 DARD Laser RF-AMP, AGC, EQ RF-AMP DACL LASER POWER CONT. control PSP DECORD DSALF DSD MULTI- CXD1885Q...
Page 66: Schematic Diagram
All manuals and user guides at all-guides.com 3. SCHEMATIC DIAGRAM Super Audio CD MODULE UNIT - 1/6 TO 2/6 TO 3/6 TO 3/6 3-23...
Page 67 All manuals and user guides at all-guides.com Super Audio CD MODULE UNIT - 2/6 FROM 1/6 TO 3/6 TO 3/6 TO 4/6 TO 4/6 3-24...
Page 68 All manuals and user guides at all-guides.com Super Audio CD MODULE UNIT - 3/6 FROM 2/6 FROM 1/6 FROM 1/6 FROM 2/6 FROM 2/6 FROM 2/6 3-25...
Page 69 All manuals and user guides at all-guides.com Super Audio CD MODULE UNIT - 4/6 SIGNAL LINE 3-26...
Page 70 All manuals and user guides at all-guides.com Super Audio CD MODULE UNIT - 5/6 TO 6/6 3-27...
Page 71 All manuals and user guides at all-guides.com Super Audio CD MODULE UNIT - 6/6 FROM 5/6 3-28...
Page 72: Parts Location
All manuals and user guides at all-guides.com 4. PARTS LOCATION Super Audio CD MODULE UNIT COMPONENT SIDE FOIL SIDE 3-29...
Page 73: Electrical Parts List
1U-3648 R-595 00MNN05000610 CHIP RESISTOR RM73B--0R0KT +1608 00D2472018903 1U-3648 R-596 00MNN05000610 CHIP RESISTOR RM73B--0R0KT +1608 00D2472018903 1U-3648 R-597 00MNN05000610 CHIP RESISTOR RM73B--0R0KT +1608 00D2472018903 NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 3-30...
Page 74 1U-3648 R-612 00MNN05101610 CHIP RESISTOR RM73B--101JT +1608 00D2472005903 1U-3648 R-613 00MNN05101610 CHIP RESISTOR RM73B--101JT +1608 00D2472005903 1U-3648 R-614 00MNN05101610 CHIP RESISTOR RM73B--101JT +1608 00D2472005903 NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 3-31...
Page 75 1U-3648 R-555 00MNN05103610 CHIP RESISTOR RM73B--103JT +1608 00D2472009983 1U-3648 R-566 00MNN05103610 CHIP RESISTOR RM73B--103JT +1608 00D2472009983 1U-3648 R-568 00MNN05103610 CHIP RESISTOR RM73B--103JT +1608 00D2472009983 NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 3-32...
Page 76 1U-3648 C-594 00MDK96471300 CERAMIC CAP. CC73CH1H471JT +1608 00D2570508917 1U-3648 C-446 00MDK96102300 CERAMIC CAP. CK73B1H102KT +1608 00D2570509929 1U-3648 C-529 00MDK96102300 CERAMIC CAP. CK73B1H102KT +1608 00D2570509929 NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 3-33...
Page 77 1U-3648 C-411 00MDK98104200 CERAMIC CAP. CK73F1E104ZT +1608 00D2570512903 1U-3648 C-412 00MDK98104200 CERAMIC CAP. CK73F1E104ZT +1608 00D2570512903 1U-3648 C-415 00MDK98104200 CERAMIC CAP. CK73F1E104ZT +1608 00D2570512903 NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 3-34...
Page 78 00MDK98104200 CERAMIC CAP. CK73F1E104ZT +1608 00D2570512903 1U-3648 FB501 90M-FC900320R 90M-FC900320R FERRITE CORE CHIP EMIFIL(11A121) +1608 00D2350130903 1U-3648 FB506 90M-FC900320R 90M-FC900320R FERRITE CORE CHIP EMIFIL(11A121) +1608 00D2350130903 NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 3-35...
Page 79 1U-3648 RA501 00MBW05103320 00MBW05103320 RESISTOR COMPO. MNR14=103JE0 00D2479007917 1U-3648 RA502 00MBW05103320 00MBW05103320 RESISTOR COMPO. MNR14=103JE0 00D2479007917 1U-3648 RA503 00MBW05103320 00MBW05103320 RESISTOR COMPO. MNR14=103JE0 00D2479007917 NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 3-36...
Page 80 1U-3648 R-540 00MNN05104610 CHIP RESISTOR RM73B--104JT +1608 00D2472012925 1U-3648 TR513 90M-HX300090R 90M-HX300090R CHIP TR. 2SC2412KT96(S) 00D2730384900 1U-3648 CX033 JACK 3P PH CON.BASE(L) +REF 00D2050863936 NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 3-37...
