Firecom 30 Series Operation Manual

Wireless base station single and multiple headsets

Advertisement

Quick Links

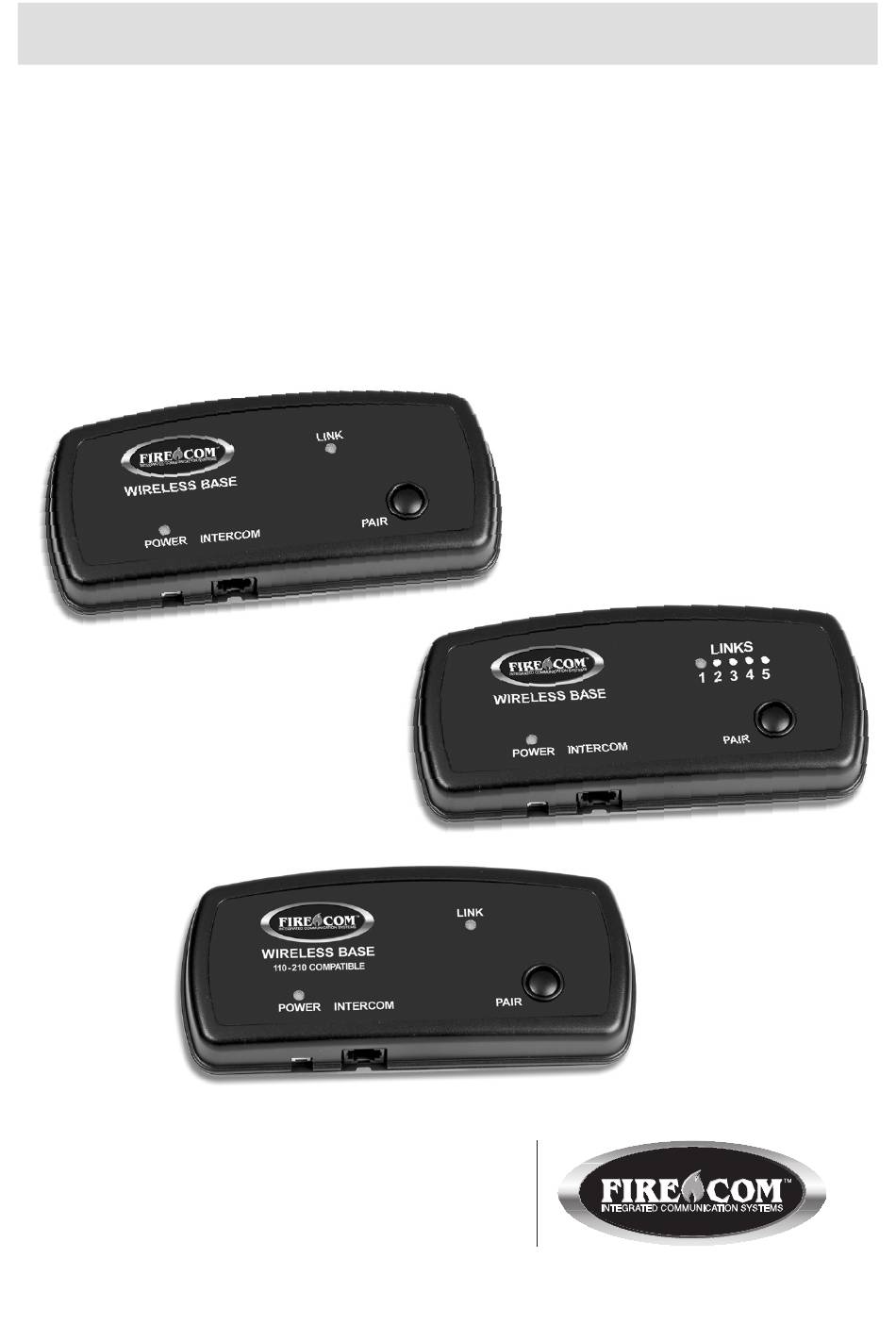

Wireless Base Station
Single and Multiple Headsets
Operation Manual
7340 SW Durham Road • Portland, OR 97224 USA
Phone: 503-684-6647 • 1-800-527-0555
Fax: 503-620-2943 • email: sales@firecom.com
www.firecom.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the 30 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Firecom 30 Series

  • Page 1 Wireless Base Station Single and Multiple Headsets Operation Manual 7340 SW Durham Road • Portland, OR 97224 USA Phone: 503-684-6647 • 1-800-527-0555 Fax: 503-620-2943 • email: sales@firecom.com www.firecom.com...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Overview ........... . 2 Base Station Models .
  • Page 4: Overview

    OVERVIEW This manual describes single headset and multiple headset wireless base station models to be used with the Firecom UHW/ FHW wireless headset series. Together, with the UHW/FHW wireless headset series, the base stations provide secure, inter- ference free communications for operators of fire and emergency trucks.
  • Page 5: Installation

    INSTALLATION • It is recommended that the base station be mounted high on the truck window, not within 4 inches of any metal . The base station should be attached to the window with 1/4“ thick, double-sided tape, to help insulate the base station from the cold.
  • Page 6: Pairing

    PAIRING LINK WIRELESS BASE POWER INTERCOM PAIR Single Headset Base Station Single Headset Base 1.When the base station is first powered, the green LED labeled POWER on the bottom left of the front panel will illuminate steadily. The single LINK yellow LED will either stay unlit, indicating that no headsets have been previously paired to the base, or will start flashing rapidly, indicating that a headset has been previously paired to the base station...
  • Page 7 PAIRING LINKS 1 2 3 4 5 WIRELESS BASE POWER INTERCOM PAIR Multiple Headset Base Station Multiple Headset Base The multiple headset base station is equipped with 5 yellow LINK LEDS on the front panel. Each LINK LED represents a headset position with position #1 represented by the leftmost LED.
  • Page 8 PAIRING 3.Place the headset in pairing mode; refer to the UHW/ FHW series user’s manual for information regarding how to put the headset in pairing mode. The red and green LEDs on the headset will alternate rapidly to indicate that the headset is in pairing mode.
  • Page 9: Troubleshooting

    Note: If the symptoms you are experiencing are not covered in this manual, or if you are having difficulty troubleshooting your system, contact your local Firecom dealer for assistance or see www.firecom.com for additional information. Problem: No indication of power to the base station (green power indicator does not illuminate).
  • Page 10: Specifications

    SPECIFICATIONS Electrical: - Power: Nominal 12V (11-16V) - Current draw: 45mA average, 80mA peak - Reverse voltage protection - Immune to ESD and transients per SAE standard J1113 - EMC compatible per SAE standard J1113 Mechanical: - Dimensions: 5.7"L x 2.6"W x 1.14"H - Weight: 4.24 oz (0.265Lb) Environmental: - Operating temperature range: -10 to +70°C...
  • Page 11: Package Contents

    Changes or modifications not expressly approved by Firecom can void the user’s authority to operate the equipment. If a problem persists in the device, contact Firecom for a Return Merchandise Authorization (RMA) number. Return the device for replacement or repair.
  • Page 12: Warranty

    No suit for breach of express or implied warranty may be brought after two years from date of purchase. FIRECOM is a division of Sonetics Corporation 7340 SW Durham Road • Portland, Oregon 97224 800-527-0555 •...

This manual is also suitable for:

110 series210 series
