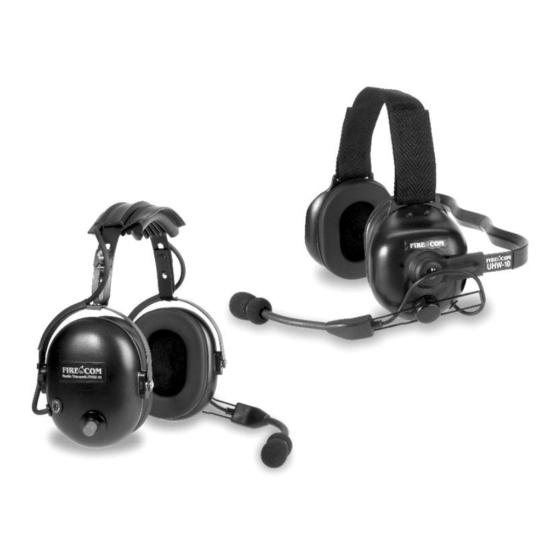

- Page 1 Wireless Headset Series UHW-Series Under the Helmet FHW-Series Over the Head Operation Manual 7340 SW Durham Road Portland, OR 97224 USA Phone: 503-684-6647 1-800-527-0555 Fax: 503-620-2943 email: sales@firecom.com www.firecom.com...
- Page 3 Introduction The UHW/ FHW series are highly reliable wireless communication headsets for fire and emergency truck operator applications. The UHW/ FHW series provides secured, digitally encoded interference free communications. When operated as part of a wireless system, up to 50 headsets can operate interference free in close proximity to each other. Under-the-Helmet Headsets Adjustable Adjustable headstrap...
- Page 4 Caution This Firecom headset provides 24dB noise attenuation when properly fitted to the user and worn as instructed. Any modification to the hearing protector such as drilling holes in the dome, painting or reforming the headband spring, will negatively impact the hearing protector’s performance and hearing damage could occur.
- Page 5 The cautionary beep will stop if the user steps back into range from the base station. Warning: Firecom recommends that the headset always be operated within the coverage range to ensure consistent and clear communications to ensure the safety of the crew and help them perform their duties in the safest and most effective manner.
- Page 6 LED Indicators All headsets have one green and one red externally viewable LED indicator located on the left ear dome (same side as boom microphone). These two LEDs operate as follow: Unit Off, Flashing Steady ON Charging: Slow Green Fully Charged Red LED Charging 3 Beeps...
- Page 7 4. Slide the mic muff on the microphone. 5. Install the o-ring on the mic muff to secure it. Replacement mic muffs may be ordered from Firecom. Intercom Communication Model-10; has a red momentary PTT button. The microphone is always live for intercom communication.
-
Page 8: Factory Setting
Mic Gain Range 130dB 130dB 125dB 125dB 120dB 120dB 115dB 115dB 110dB 110dB 105dB 105dB 100dB 100dB 95dB 95dB 90dB 90dB 85dB 85dB Factory Setting 80dB 80dB Headset Microphone Volume & Noise Gate Threshold Adjustment Procedure: 1. With the headset power off, hold down the PTT button. 2. - Page 9 “LED Indicators” section for proper operation of the battery charging red LED indicator). NOTICE: FUSE ASSEMBLY INSTALLATION Firecom fuse holder is to be installed within 18" from the battery source in-line with your charging cable assembly when power from a vehicle is used for recharging your wireless product.
-
Page 10: Care And Maintenance
Weight (UHW-Series) ........ - Page 11 - This product may not be collocated or operated in conjunction with any other antenna or transmitter. - This headset has been tested and meets the FCC RF exposure guidelines. Max. SAR is 0.003 W/ kg. Changes or modifications not expressly approved by Firecom can void the user’s authority to operate the equipment.
-
Page 12: Warranty
No suit for breach of express or implied warranty may be brought after two years from date of purchase. FIRECOM is a division of Sonetics Corporation 7340 SW Durham Road Portland, Oregon 97224...
