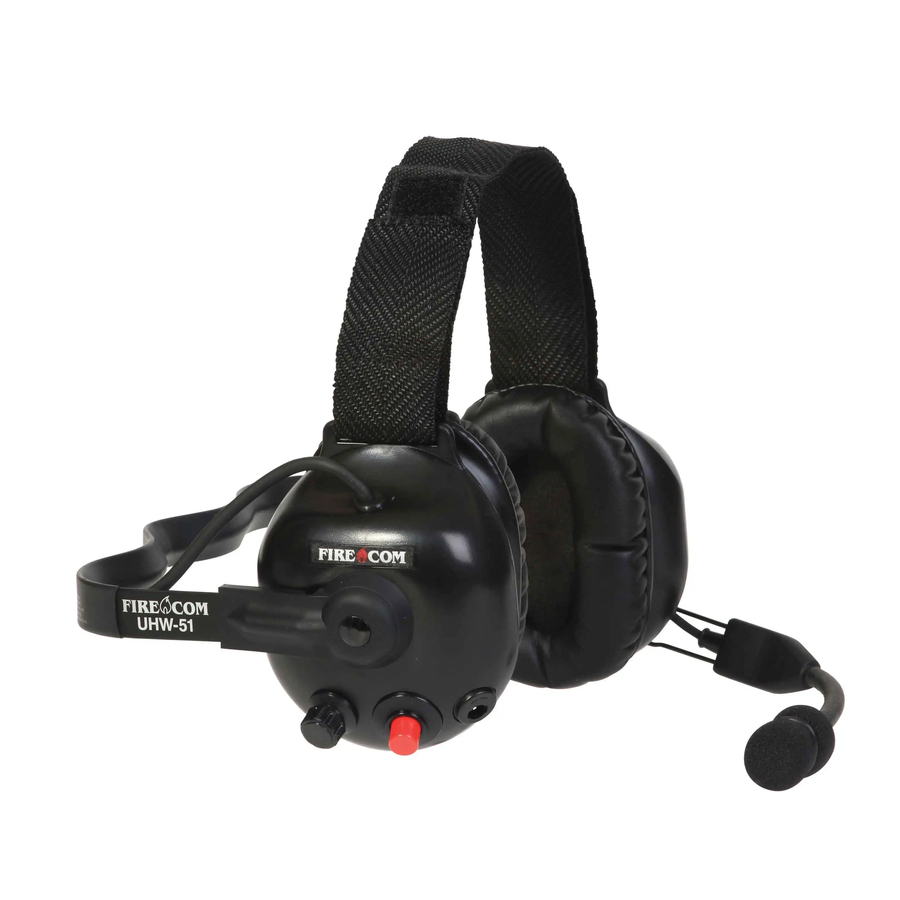

FIRECOM UHW Series, FHW Series - Wireless Headsets Manual

FIRECOM UHW Series, FHW Series - Wireless Headsets Manual

Advertisement

FIRECOM UHW Series, FHW Series - Wireless Headsets Manual

HEADSET FEATURES

HEADSET FEATURES
Center=Factory pre-set: Low Squelch
DOWN=Factory pre-set: High Squelch

Mic Placement

Place mic no more than 1/8" from lips. Placement of mic is critical for proper operation.


If the microphone is positioned incorrectly, you may experience a reduction or interruption in the audio and or deterioration in clarity of intercom and radio communication.

Headset Adjustments

Behind-the-Head Headset
Behind-the-Head Headset

Over-the-Head Headsets
Over-the-Head Headsets

CHARGING & INSTALLATIONS

CHARGING & INSTALLATIONS

Wall Adapter Charging

Only charge the Headset using the supplied 12VDC regulated wall adapter. Using unregulated wall adapters will damage the Headset charging circuit and components and void the warranty.
Wall Adapter Charging

Vehicle Charging

warningNote: Make fuse no further than 18" from the battery.

warningNote: Only replace fuse with the same type, 1.5A AGU.

  1. The unterminated end of the supplied charging cable assembly and fuse assembly must be wired to the vehicle per the diagram above.
  2. Observe correct polarity when connecting the charger cable to 12V from the vehicle. Connect the RED wire to +12V and the BLACK wire to battery chassis ground. This will result in a positive center terminal of the charger jack as shown in the illustration.
  3. Charge Headset completely before use with vehicle power 12V supply or supplied wall mount charger.
  4. For maximum battery shelf life, turn OFF the Headset.

BATTERY INDICATORS

LED Indicators: Charging Depleted Battery
LED Indicators: Charging Depleted Battery

Battery Level Indicator

Number of RED and GREEN
Flashes at Turn ON

Low Battery (2 hour battery life)

Red LED Flashing Slow
Red LED Flashing Slow

3 Beeps Every 10 Minutes

Very Low Battery (15 Minutes battery life)

Red LED Flashing Fast
Red LED Flashing Fast

6 Beeps Every Minute

Battery Life vs Temperature
Battery Life vs Temperature

PAIRING


To avoid unpairing of existing Headset, previously paired Headsets mist be ON and comected before pairing a new Headset.

  1. With power ON to Base Station, press the "Pair" button until Yellow LINK(S) LED's flash.
    PAIRING
  2. To pair Headset to Base Station; hold toggle switch UP, then turn power ON to Headset or hold PTT button down on the dome while turning power ON to Headset. When BOTH Red/Green Headset LED's are alternating, release toggle switch or PTT button. Headset will connect to base in 30 seconds.
    Headset with Toggle Switch
    Headset with Toggle Switch

    Headset with PTT Button
    Headset with PTT Button
  3. When the Headset Green LED remains steadily ON the headset is successfully paired to the base. If the Headset Green LED flashes rapidly then repeat the pairing procedure.

    Paired


    Not Paired

PROGRAMMABLE SQUELCH

  1. Turn ON Headset and connect to the Base Station.
  2. Turn Headset OFF.

    Holding the toggle switch during turn ON for longer than 5 seconds will unpair the Headset from the Base.
  3. While holding the toggle switch UP or Up=PTT On C hold PTT button down on the dome turn ON the Headset.
  4. Release toggle switch or PTT button when the GREEN LED lights, watch the RED LED; it will flash the current squelch setting (i.e. 5 flashes=squelch setting 5).
  5. To change squelch settings; press toggle switch UP or hold PTT button down on the dome and count the number of Red LED flashes. Press the toggle UP or press the PTT button to change the setting to the next range and view the number of RED LED flashes. Once the squelch setting reaches level 9, the next position will return to level 1.

    For -57 headsets with toggle switch, go to step F.
    For all other headsets go to step G.

    Programmable Squelch

    Programmable Squelch
  6. For -57 headsets with toggle switch:
    To change squelch settings of the bottom position; Press the toggle DOWN to change the setting to the next range and view the number of GREEN LED flashes. Once the squelch setting reaches level 9, the next position will return to level 1.

  7. To save the setting, cycle power.

OUT OF RANGE

OUT OF RANGE

  • When approching range limit, headset beeps 1 time every 10 seconds before losing LINK to Base Station
  • Beep stops when user returns into range

Automatic Sleep
If the Headset does not reconnect to the base station within 5 minutes, it will enter a low power mode. Cycle power ON to the Headset in order to reconnect the link to the Base Station.

MAINTENANCE

Care and Maintenance

  • Inspect ear seals and mic muff frequently for wear. Replace at 6 month intervals. If you see any defect such as holes or cracks in the ear domes, ear seals, or headband, headset should be immediately repaired or replaced.
  • Do not remove the foam speaker cover.
  • To ensure proper function, keep the microphone away from excessive moisture. Do not store Headset in high temperature environments or direct sunlight.
  • Wipe Headset and ear seals with a mild soap and water mixture only. The foam mic muff may be removed and cleaned in a mild detergent, or replaced by ordering from Firecom.


Never immerse any part of the headset in water.

Ear seals and mic muff removal


Ear seals and mic muff removal
To Order Firecom Accessories:
Visit www.firecom.com
Call: 1-800-527-0555

SPECIFICATIONS

Noise Reduction
This Firecom Headset provides 24dB noise attenuation when properly fitted. Any modification to the Headset will reduce the Headset performance and hearing damage could occur. Always wear hearing protector in areas that have been identified as high noise locations.

Federal law requires the following statements:
"Although hearing protectors can be recommended for protection against the harmful effects of impulsive noise, the Noise Reduction Rating (NRR) is based on the attenuation of continuous noise and may not be an accurate indicator of the protection attainable against impulsive noise such as gunfire."
"The level of noise entering a person's ear, when a hearing protector is worn as directed, is closely approximated by the difference between the A-weighted environmental noise level and the NRR."

Example

  1. The environmental noise level as measured at the ear is 92dBA.
  2. The NRR is 24dB.
  3. The level of noise entering the ear is approximately equal to 92dBA – NRR or 68dB.
    "For noise environments dominated by frequencies below 500 Hz, the C- weighted environmental noise level should be used."

FCC/IC Compliance

This device complies with FCC Part 15 Rules and IC RSS-213 Rules. Operation of this is subject to the following two conditions:

  1. This device may not cause harmful interference.
  2. This device must accept any interference that may be received, including interference that may cause undesired operation.

FCC/IC RF Exposure Warning

  • This product complies with FCC radiation exposure limits set forth for an uncontrolled environment.
  • This product may not be collocated or operated in conjunction with any other antenna or transmitter.
  • This headset has been tested and meets the FCC RF exposure guidelines. Max. SAR is 0.003 W/ kg.

Technical Spec

Weight (Over the Head): 1.3lb (0.58 Kg)
Weight (Behind the Head): 1.2lb (0.53 Kg)

RF

  • Range: 1600 feet open field
  • Digital encoding for secured communications
  • Interference free communications for up to 60 headsets operating in close proximity

Power

  • 3.7V rechargeable lithium polymer battery
  • >24 hours battery life when operating @25°C
  • Over voltage, under voltage, over current and over temperature protection
  • AC Charge source: supplied 12v, 500mA wall charger
  • DC Charge source: 5v to16v, 1.5A minimum
  • Charge time: 2 hours

Environmental

  • IP-65 rated, when worn
  • Operating temperature -40°F (-40°C) to +158°F (+70°C)
  • Storage temperature -40°F (-40°C) to +185°F (+85°C)
  • Charging Temperature 32°F (0°C) to +104°F (+40°C)

MIL SPEC

  • Humidity per MIL-STD 810F and 810G
  • Temperature Shock per MIL-STD 810F and 810G
  • Chemical Exposure per MIL-STD 810F and 810G

SAE

  • Salt Spray per J1455, Sec. 4.3
  • Vibration per J1455 Sec. 4.9
  • Conducted Immunity per J1113-11
  • Electrostatic Discharge per J1113-13
  • Radiated Emissions per J1113-41
  • Radiated Immunity per J1113-21

ISO

  • Conducted Transients per 7637-2

WARRANTY

Two-Year Limited Warranty to the Original Purchaser
See addendum for full warranty details.

Service phone: 503-684-6647
Service email: service@firecom.com
7340 SW Durham Road • Portland, OR 97224 USA
1-800-527-0555 • Phone: 503-684-6647 • Fax: 503-620-2943
www.firecom.com
