Accessories/Extension Units
A list of general accessories and system components for your PRO device is available in the underlying operating
instructions.
Additional accessories and spare parts for the Extension Units can be found on the Internet.
See also Industry Mall - Extension Units (https://mall.industry.siemens.com/mall/en/WW/Catalog/Products/10046164)
Design of the devices
PRO devices, suitable for support arm (pedestal) and Extension Units right/left

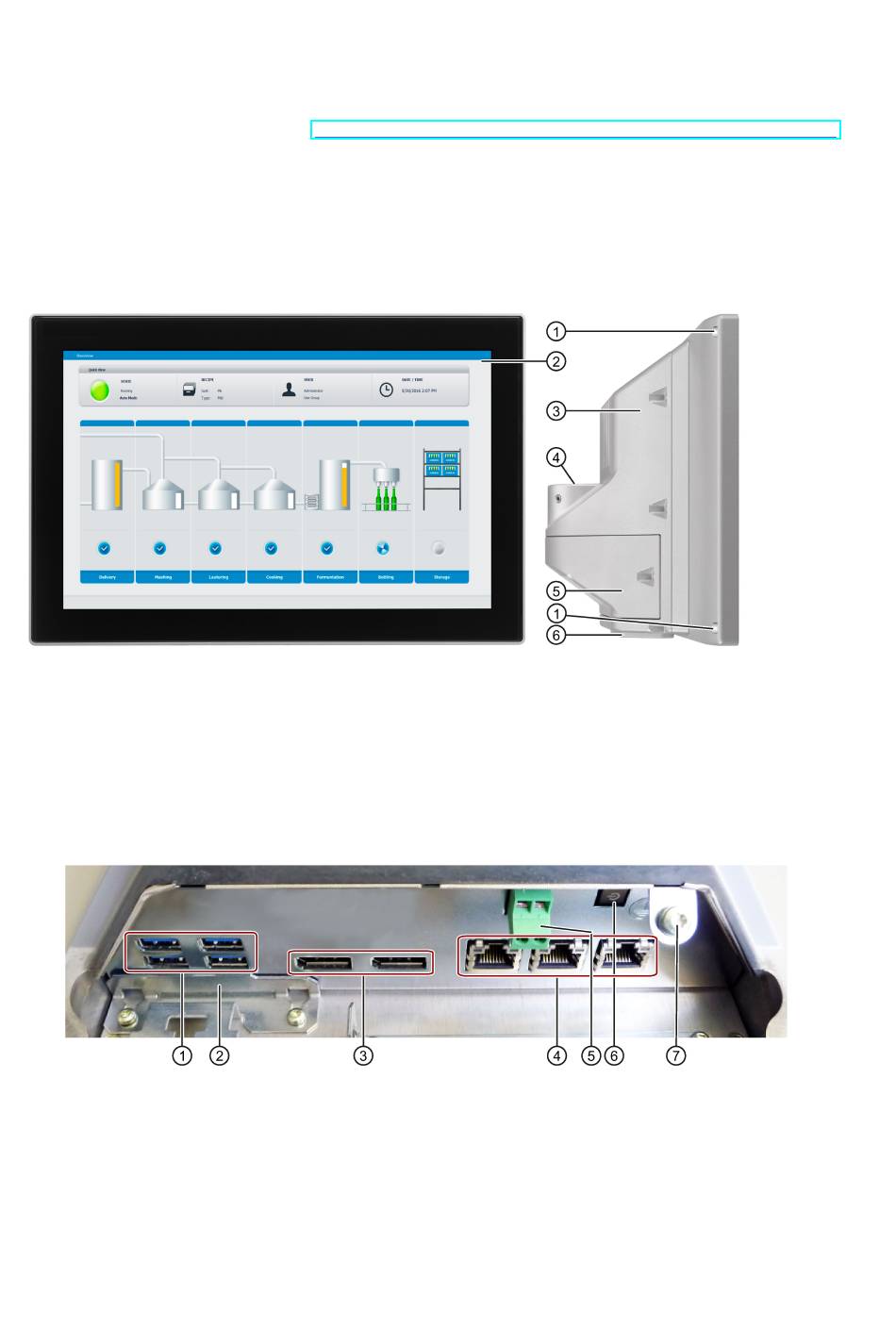

The following figures show the design of the device.
Front view and side view
①
Mounting holes for Extension Unit
②
Display with touch screen
③
Enclosure
④
Mechanical interface for flange mount adapter (support arm mounting)
⑤
Terminal compartment cover
⑥
Mechanical interface for basic adapter (pedestal mounting)
Interfaces and operator controls for PRO device
The assignment of the interfaces is shown inside the terminal compartment cover.
①
4 x USB port
②
Slot for CFast card
③
Display port
④
3 × Ethernet port
⑤
Connection terminal 24 V DC power supply
⑥
On/Off switch
⑦
Protective conductor connection
SIMATIC IPC477E 1900 PRO HD LR Ext.
A5E44290044-AA, 03/2018
USB 3.0 high speed/high current
Behind the strain relief
RJ45 Ethernet port, 10/100/1000 Mbps
Connection terminal inserted in delivered condition
