Damage can be caused by
!
opening the door incorrectly
x2
A
?

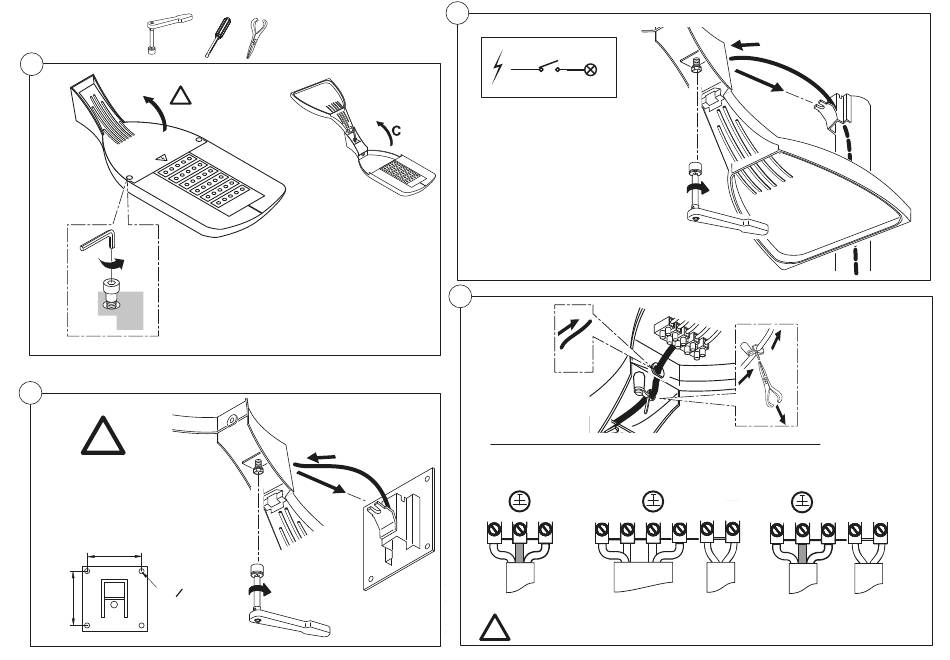

Wall Mount Option
!
Secure luminaire wall
bracket with suitable
fasteners (supplied by
others) for a 12mm
diameter clearance hole
170
4 x O 12 mm holes
170
B
C
D
8Nm
2
A
3
A
HARD WIRED CONFIGURATIONS
N
L1 N
L
3 x 2.5mm cable only (overall diameter 11.4mm)
!
ANY OTHER CABLE SIZE MAY COMPROMISE THE IP RATING OF THE LUMINAIRE
B
C
D
8Nm
B
C
L
N
L2
D1 D2
D1 D2
