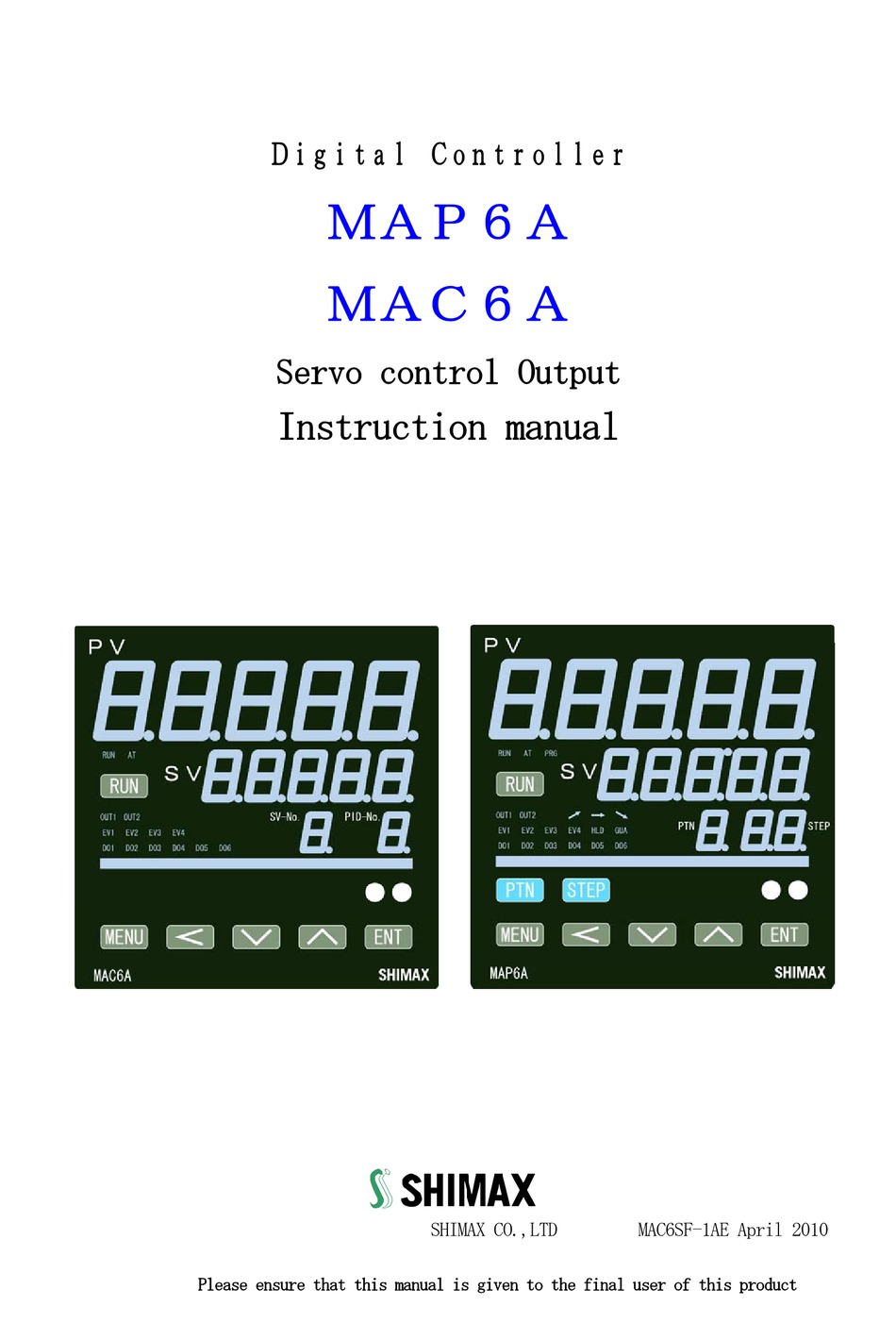

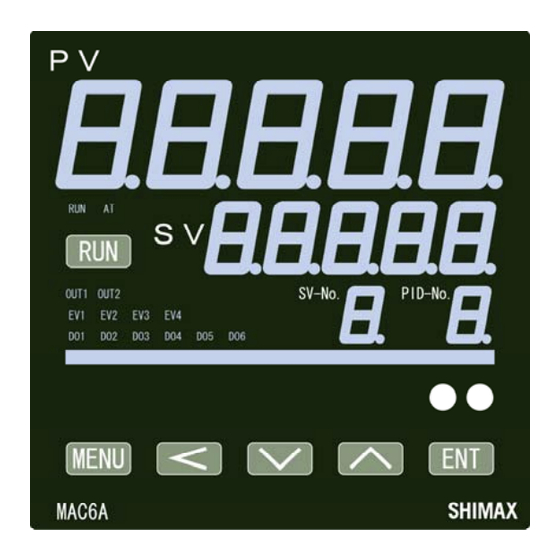

- Page 1 Ｄｉｇｉｔａｌ Ｃｏｎｔｒｏｌｌｅｒ ＭＡＰ６Ａ ＭＡＣ６Ａ Servo control Output Instruction manual SHIMAX CO.,LTD MAC6SF-1AE April 2010 Please ensure that this manual is given to the final user of this product...
- Page 2 ◎This mark indicates additional instructions and/or notes. 「ＮＯＴＥ」 「 ＷＡＲＮＩＮＧ」 MAC6A and MAP6A is designed for controlling temperature, humidity, and other physical subjects in general industrial facilities. It must not be used in any way that may adversely affect safety, health, or working conditions.
- Page 3 ●EMC standard (IEC61326) classifies MAC6A and MAP6A into Class A apparatus. Electromagnetic interference may occur when MAC6A and MAP6A is used at a business district or in the home. Please use after taking sufficient measures.
- Page 4 2. Introduction 2-1. Check before use Before using MAC3, please check the model code, the exterior appearance and accessories. Also,make sure that there are no errors, impairs and shortages. Confirmation of model code Check that the product you ordered is being delivered properly. Check the model code of the main body case against the following code table.
- Page 5 Code Specifications Series MAP6A ９６×９６ size ５ digit display Programmable Digital Controller Series MAC6A- ９６×９６ size ５ digit display Digital Controller Input Ｍ Full multi ＴＣ, ＲＴＤ, ｍＶ, Ｖ, ｍＡ ※１ C Contact 1a 240V AC 2A (Resistance load) S Voltage pulse (SSR drive voltage) 12V DC max 20mA Current 4-20mA DC Load resistance max 500 Ω...
- Page 6 ●The panel thickness should be 1.2 to 3.2ｍｍ. （It can be mounted up to 20ｍｍ of thickness using attachment） ●MAC6A and MAP6A has pawls of fixing, just press it from the front of the panel. ｢Note｣：MAC6A and MAP6A is designed to be mounted on a panel.
- Page 7 3-3. External dimension and panel cutout External dimension (unit: mm) Side view Top view Panel cutout (unit: mm) 96 Min +0.8 +0.8 ( 9 6 × N - 4 ) At the time of holizontal proximity attached by single hole. N:Number of Equipment 「Note」：Proximity attachment by a single hole is possible only in the case of horizontal direction.
- Page 8 3-4. Wiring 「 ＷＡＲＮＩＮＧ」 ◎ When wiring make sure to disconnect the power supply. Otherwise an electric shock may result. ◎After wiring, do not touch terminals or other charged elements while it is energized. Otherwise an electric shock may result. ◎After wiring, make sure the wiring are correct.
- Page 9 3-5. Terminal arrangement diagram POWER 90-264V AC 50/60Hz 12VA F.B.P. Feedback potentiometer OUT1 ＋ Control ＋ mA V motor － mV TC ＋ ＋ ＋ － － － INPUT － RS-485 RS-232C ｢Note｣：If input type is thermocouple or voltage, errors may occur when terminal 11 and terminal 12 terminal are short-circuited.
- Page 10 3-6. Terminal arrangement table № Symbol Function № Symbol Function ＋ ＡＯ output － ＤＯ Common ＤＯ output ＤＩ input Feedback potentiometer ＋ Voltage（Ｖ） or ＋ Current（ｍＶ）input － ＡＩ input － ＋ Thermocouple or Voltage（ｍＶ）input Communication － RS-485 Ａ ＋ Resistance bulb input Ｂ...
- Page 11 （１７） Mode 13 screens ・Mode 13 screens are the setup screens of servo output. ・Mode 13 screens are skipped when the servo output option is not added. ・Servo feedback input is an exclusive option when DO4 ~ 6, and CT input are not added. ・Servo output screens are composed of the function setting screens and the valve-position adjustment screens.
- Page 12 Differential Gap Setting Screen □ Initial value：０.５ □□□ Setting range：０.１～５.０％ □□□ This screen is to set each differential gap of opening and closing in the range of 0.1 to 100.0% key Opening and closing motion of control motor OPEN CLOSE ①...
- Page 13 Inching Cycle Setting Screen Initial value：１.０ □□□ Setting range：０.５～５.０ seconds □□□ This screen is to set the proportional cycle of executing the inching operation in the range of 0.5 to 5.0 seconds. key Inching Duty Setting Screen Initial value：２.０...
- Page 14 Mode 13 Valve-position Adjustment Lead Screen □ □□□ No setting on this screen. □□ Press key to shift the screen to Servo Auto-adjustment Setting Screen. key Servo Auto-adjustment Setting Screen □ Initial value： □□ Setting range：ＯＦＦ、ＯＮ □□...
