INSYS CombiStar 7250 simplex Installation Instructions page 3

_________________________________________________________________________________________________

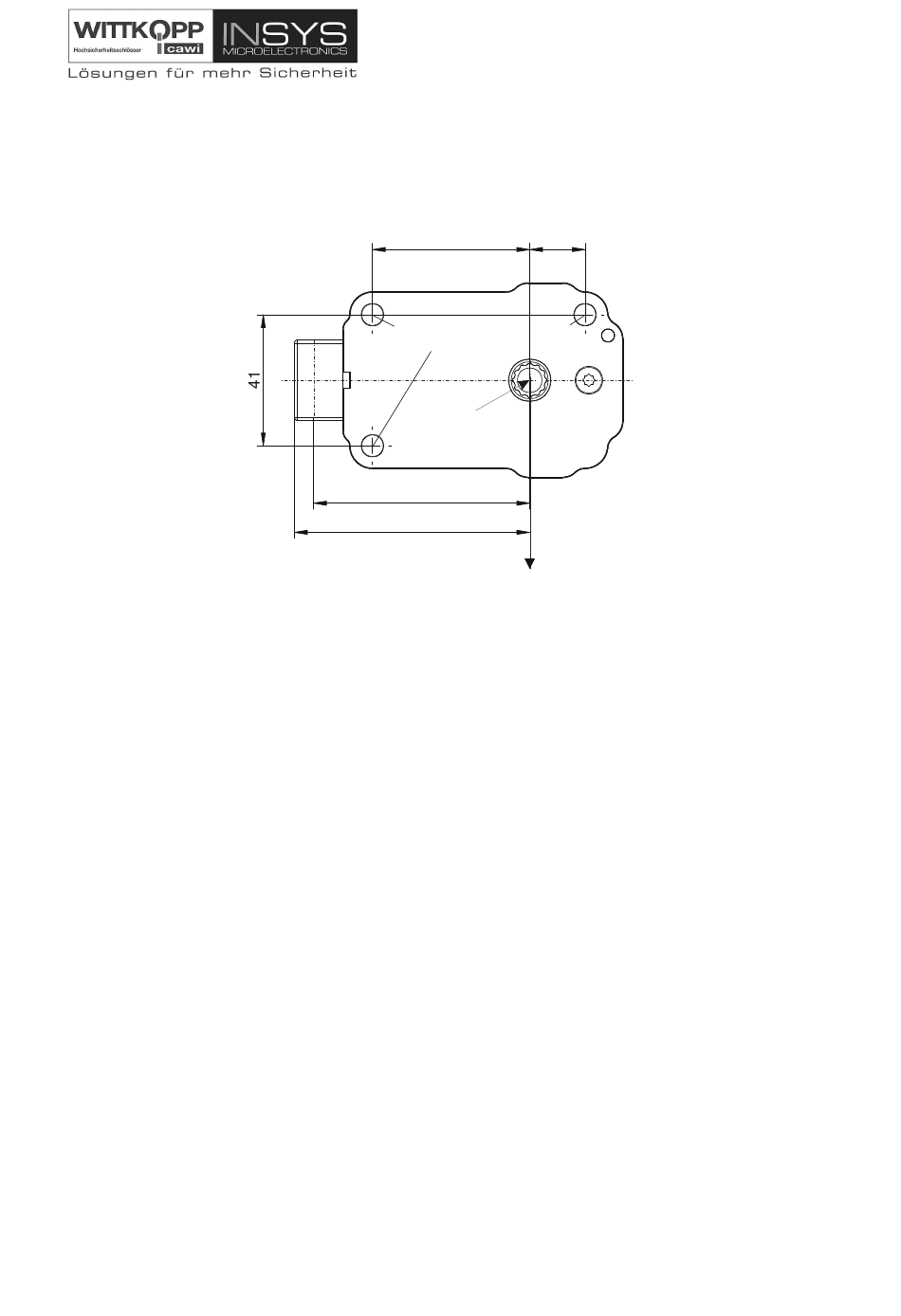

Tap three M6 threaded holes to attach the electronic lock as shown in the following sketch.
See pictorial guide for installation
1. Thread the keypad connector cable with its plug through the connector shaft and the
electronic lock's center shaft.
2. Insert connector shaft to keypad and adjust it to electronic lock.
3. Slip-on locked electronic lock on connector shaft.
4. Use three steel machine screws (M6 x 35 or the corresponding inch threads) to affix the
electronic lock so that it is permanently and securely attached. Prevent spontaneous
loosening of these screws. It is advisable to place lock washers under the screw heads. In
order to avoid malfunctions, the mounting screws may be tightened down only to a maximum
torque of 10 Nm.
_____________________________________________________________________________________________
E7250E_01.doc
CombiLock 7251 electronic lock
49,2
Three M6 threaded holes
for lock mounting
Shaft center line
67,6 mm at 9 mm extension
73,6 mm at 15 mm extension
Center line cungruent with center line
of the CombiControl 7238 keypad
Rel. 1 vom 11.07.2005
Installation Instructions No. 9999-067-0
17,3
3
