Assembly sequence

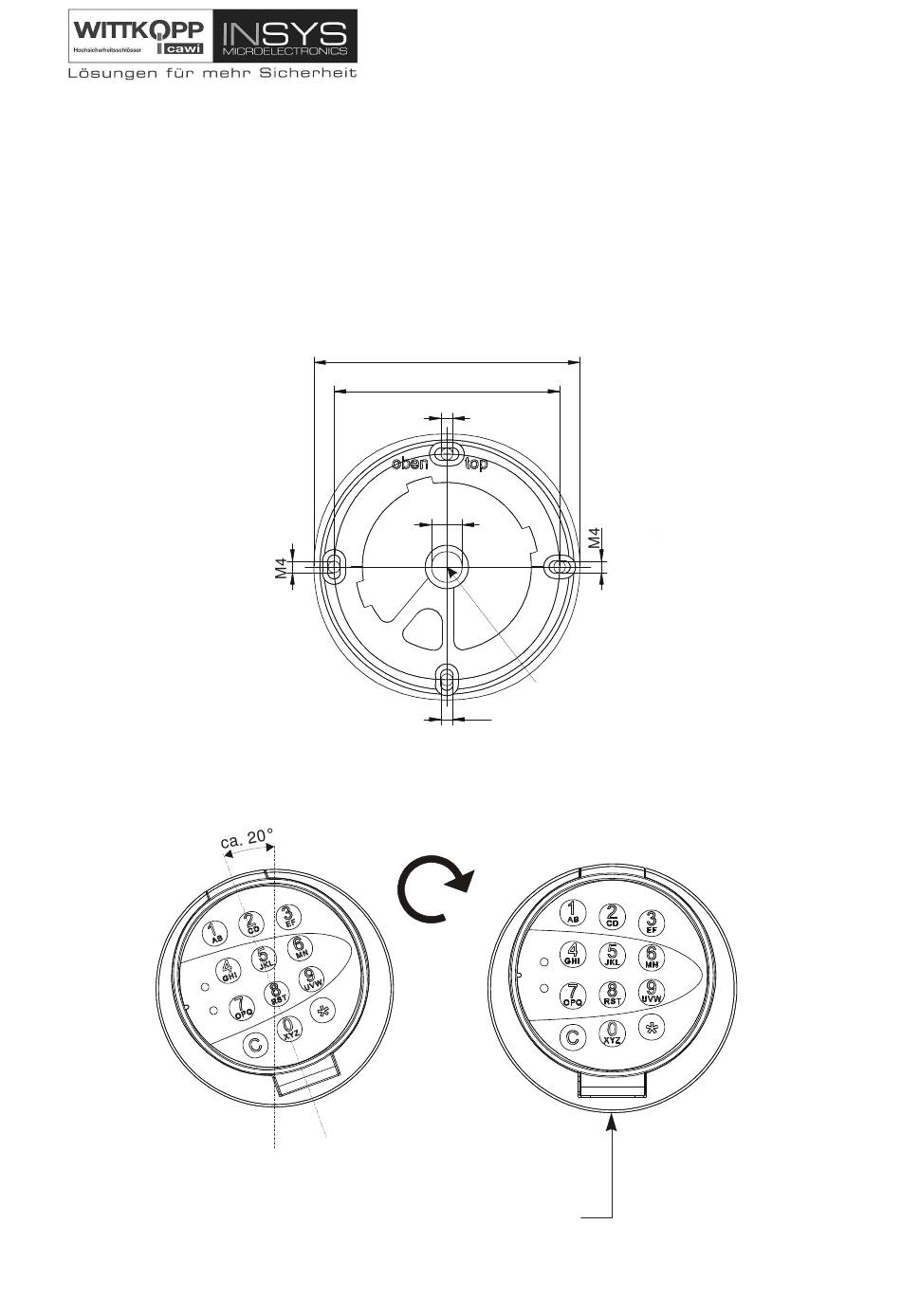

Mount the attachment ring for the CombiControl 7238 keypad as shown in the sketch. Four M4
threaded holes and one hole, max. 11.4, min. 10.5 mm in diameter, will have to be tapped in the door
of the safe. Then use four M4 x 10 machine screws to mount the attachment ring, ensuring that there
is no damage in the area where the ring is secured.
Position the keypad on the
attachment ring at an angle of
about 20° and then rotate the
keypad to the right to bring it into
_____________________________________________________________________________________________
E7250E_01.doc
Attachment ring for
CombiControl 7238 keypad
Ø92
Ø78
M4
Ø11,4 mm hole diameter
M4

Positioning the keypad

this
Rel. 1 vom 11.07.2005
Installation Instructions No. 9999-067-0
Keyboard center line
congruent with center line
of electronic lock
position
