Installation Instructions CombiStar 7250 simplex and pro
The electronic lock, together with its keypad, is to be installed in accordance with the following
instructions. It should be noted that these installation instructions are a part of the VdS security
certification; failure to follow these instructions will invalidate that certification. The electronic lock is
in all cases to be protected from tampering from the outside.

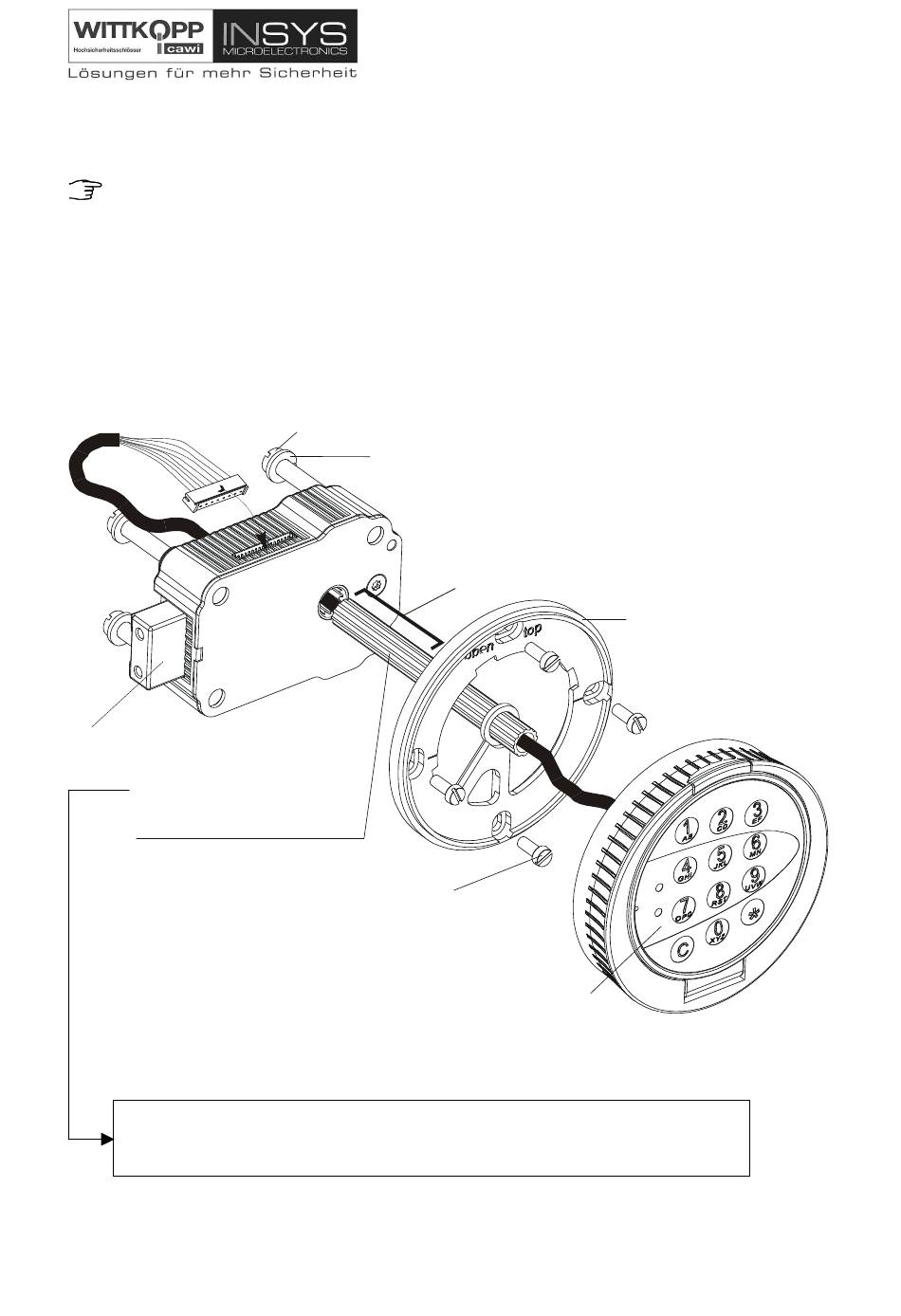

Pictorial guide to installation
Electronic lock CombiLock 7251
Connector shaft between
CombiLock 7251 and the
CombiControl 7238 keypad
Calculating the length of the connector shaft:
43 mm + distance between lock cover plate and outside door
_____________________________________________________________________________________________
E7250E_01.doc
3 Machine screws
M6 x 35
Lock washers for
3 machine screws M6 x 35
Distance between lock cover plate
and outside door
4 Machine screws
M4 x 10

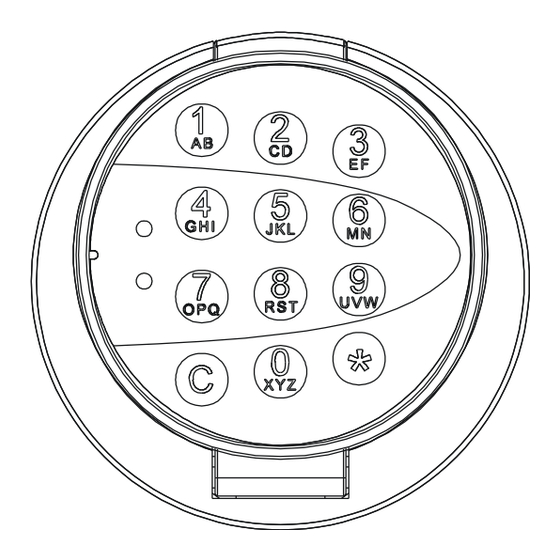

Keypad
7238 CombiControl
(Toleranz: – 4 mm)
Rel. 1 vom 11.07.2005
Installation Instructions No. 9999-067-0
Attachment ring for
CombiControl 7238
1
Advertisement
Table of Contents
Related Manuals for INSYS CombiStar 7250 simplex
Summary of Contents for INSYS CombiStar 7250 simplex
- Page 1 Installation Instructions No. 9999-067-0 _________________________________________________________________________________________________ Installation Instructions CombiStar 7250 simplex and pro The electronic lock, together with its keypad, is to be installed in accordance with the following instructions. It should be noted that these installation instructions are a part of the VdS security certification;...
- Page 2 Installation Instructions No. 9999-067-0 _________________________________________________________________________________________________ Assembly sequence Mount the attachment ring for the CombiControl 7238 keypad as shown in the sketch. Four M4 threaded holes and one hole, max. 11.4, min. 10.5 mm in diameter, will have to be tapped in the door of the safe.
- Page 3 Installation Instructions No. 9999-067-0 _________________________________________________________________________________________________ Tap three M6 threaded holes to attach the electronic lock as shown in the following sketch. CombiLock 7251 electronic lock 49,2 17,3 Three M6 threaded holes for lock mounting Shaft center line 67,6 mm at 9 mm extension 73,6 mm at 15 mm extension Center line cungruent with center line of the CombiControl 7238 keypad...
- Page 4 Installation Instructions No. 9999-067-0 _________________________________________________________________________________________________ Installation options: The electronic lock must always be located at right angles to the keypad (four installation positions, each offset 90° from the other). CombiLock 7251 CombiControl 7238 Sample installation for the CombiStar 7250 system The bolt may not be subjected to tension or pressure after installation.
