INSYS EloStar time User Manual

Electronic lock
Hide thumbs
Table of Contents

Advertisement

Quick Links

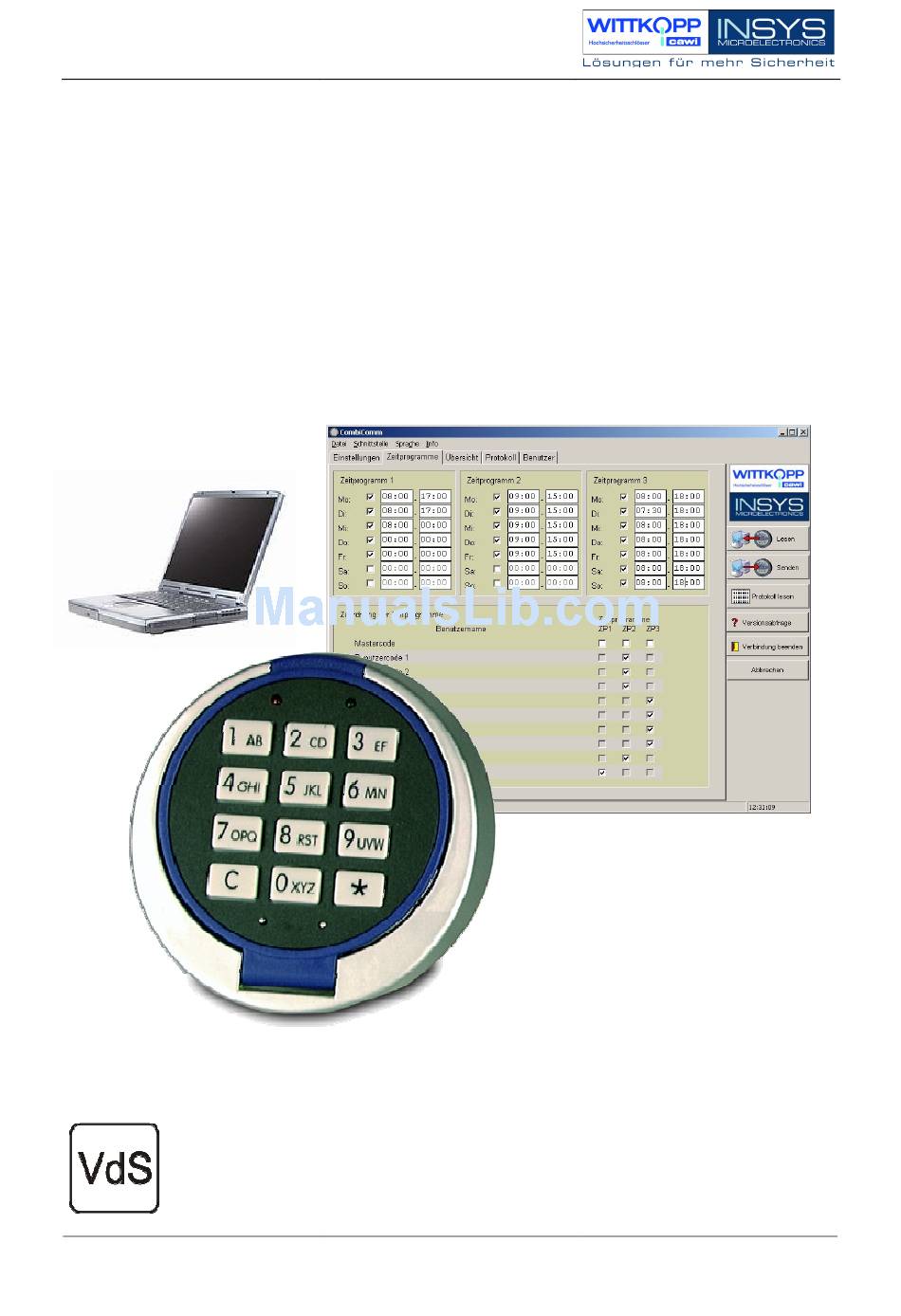

EloStar time
Handbuch
EN 1300
M 102301
Class 2/B
Version 1.03
EloStar time
User manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EloStar time and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for INSYS EloStar time

Summary of Contents for INSYS EloStar time

  • Page 1 EloStar time Handbuch EloStar time User manual EN 1300 M 102301 Class 2/B Version 1.03...

  • Page 2: Table Of Contents

    EloStar time Handbuch Table of contents 1. OPENING THE LOCK ............................ 3 2. LOCKING THE LOCK ........................... 4 3. PROGRAMMING THE LOCK ........................5 3.1. R ......................6 EPROGRAMMING THE MASTER CODE 3.2. R ............ 6 EPROGRAMMING THE MASTER CODE WITH EMERGENCY OPENING LOCK 3.3.

  • Page 3: Opening The Lock

    EloStar time Handbuch EloStar time Safety notes Immediately change the factory-set master CODE 1 2 3 4 5 6 for security reasons. • Do not use any personal data for your new CODE such as birthdays or other information that •...

  • Page 4: Locking The Lock

    Attention: Before leaving the safe deposit, it is imperative to make sure that the lock is correctly locked. Further functions of EloStar time: 1 master code (6-digit) 9 user codes Silent alarm with alarm time delay Automatic locking with door switch...

  • Page 5: Programming The Lock

    EloStar time Handbuch 3. Programming the lock In order for the lock to be programmed, it has to be opened. For this purpose, the lock can be opened with any user code. In the delivery state, the lock can only be opened with the factory master code 0 123456 (0 = user no.

  • Page 6: Reprogramming The Master Code

    EloStar time Handbuch 3.1. Reprogramming the master code Notes: Immediately change the factory-set code 1 2 3 4 5 6 for security reasons. • The programming can only be done when the lock is open. • Do not use any personal data for your new code such as birthdays or other •...

  • Page 7: Programming User Codes

    EloStar time Handbuch 3.3. Programming user codes Note: • The programming can only be done when the lock is open. Do not use any personal data for your new code such as birthdays or other • information that could be guessed from knowledge about you.

  • Page 8: 4-Eyes Principle

    EloStar time Handbuch 3.4. 4-eyes principle Notes: • The 4-eyes principle can only be set with the master code. • This setting can only be made when the lock is open. After this function has been programmed (activated), the lock can only be opened when two codes are entered.

  • Page 9: Setting The Opening Delay / Release Time

    EloStar time Handbuch 3.5. Setting the opening delay / release time Notes: • The opening delay can only be programmed by the master. • The programming can only be done when the lock is open. • The programming or deletion of the opening delay and release time is saved in the event log.

  • Page 10: Automatic Locking

    EloStar time Handbuch 3.6. Automatic locking Notes: • Automatic locking can only be set by the master. • After this function has been activated, the lock automatically locks 10 seconds after it was opened. • The programming can only be done when the lock is open.

  • Page 11: Blocking / Releasing The Lock

    EloStar time Handbuch 3.7. Blocking / releasing the lock Notes: • The lock can only be blocked by the master. • The programming is done when the lock is closed! • After the blocking has been activated, the lock is blocked for user codes until the master removes the blocking.

  • Page 12: Setting Date And Time

    EloStar time Handbuch 3.8. Setting date and time Notes: • The programming is only done by the master. • Date and time are entered without points. • A corresponding number must be entered for the day of the week. • 1 = Monday / 2 = Tuesday / 3 = Wednesday / 4 = Thursday / 5 = Friday / 6 = Saturday / 7 = Sunday •...

  • Page 13: Programming With Apc

    EloStar time Handbuch 3.9. Programming with a PC Programming with a PC is done using the CombiComm parameterization set. More detailed information can be found in the manual of the CombiComm PC software. Programming with a PC can only be done when the electronic lock is open!
  • Page 14 EloStar time Handbuch Establishing a connection to the PC Depending on the keypad design, the interface cable is correspondingly connected on the inside or the outside of the cabinet. Keypad 7236 Connection outside, below keypad cover Keypad 7233 Connection inside the safe deposit or the...

  • Page 15: Event Log

    EloStar time Handbuch 3.10. Event log The last 512 events are logged in chronological order with the date and time. The information is read out with the CombiComm parameterization set. More detailed information on this can be found in the manual of the PC software.

  • Page 16: Activating External Input And Output Signals

    External blocking / release of the lock Display of the end of the opening delay The electronic lock EloStar time has 2 inputs and 2 outputs for implementing the above-mentioned functions. A particular function can be assigned to each input signal and output signal according to the following description of the function numbers.
  • Page 17 EloStar time Handbuch Activation of IO functions Notes: After activation, the following inputs/outputs are queried or actuated. Activation or deactivation can only be performed by the master. The activation or deactivation is saved in the event log. Enter program number 9...
  • Page 18 EloStar time Handbuch 3.12.2. Silent alarm and alarm time delay Notes: • The silent alarm function and the corresponding output signal are only active when the function has been activated. • The silent alarm is triggered by entering the opening code, whereby the last digit has to be increased by one.
  • Page 19 EloStar time Handbuch 3.12.3. Automatic locking with the door switch Notes: • With the function “Automatic locking via door switch”, the electronic lock can be automatically locked by actuating a door or boltwork switch. • If the door switch is not opened within 15 seconds after the code is entered and the lock is opened, the electronic lock locks again automatically.

  • Page 20: Connection Of The External Lcdxt Display

    EloStar time Handbuch 3.12.5. Signaling the status of the deadbolt of the lock Notes: • The electronic lock can signal the status of the deadbolt via this output contact. • The function can either be programmed to OUT1 or OUT2, see function numbers.

  • Page 21: Resetting The Lock

    EloStar time Handbuch 3.14. Resetting the lock Notes: • The lock can only be reset by the master. • Programming is done when the lock is open! • All user codes and the configuration are deleted. The master code is preserved.

  • Page 22: Appendix

    EloStar time Handbuch 4. Appendix 4.1. Optical and acoustic signal outputs Signal output Reason Note 1 green 1 x Correct code entry After 3 consecutive incorrect code entries, a blocking time of 12 sec. occurs. Each subsequent incorrect 1 red and 12 x...

  • Page 23: Accessory List

    EloStar time Handbuch We assume no liability for malfunctions caused by incorrect operation, the application of force or improper handling or for property damage and financial losses caused by improper locking of the safe. If the electronic lock cannot be opened despite correct operation, please contact the manufacturer of the safe.
  • Page 24 15.05.07 First edition 1.01 28.05.07 Adaptations, additions 1.02 11.06.07 Adaptations 1.03 26.11.07 Name changed again to EloStar time Adaptation of IO functions !!! Errors excepted !!! Support / hotline Carl Wittkopp GmbH & Co. KG Sternbergstr. 5 D – 42551 Velbert Tel.: +49(0)2051 –...
