Storage Bin; Install Latch Handle; Install Bin - DoubleTake MAX 5 Manual

1

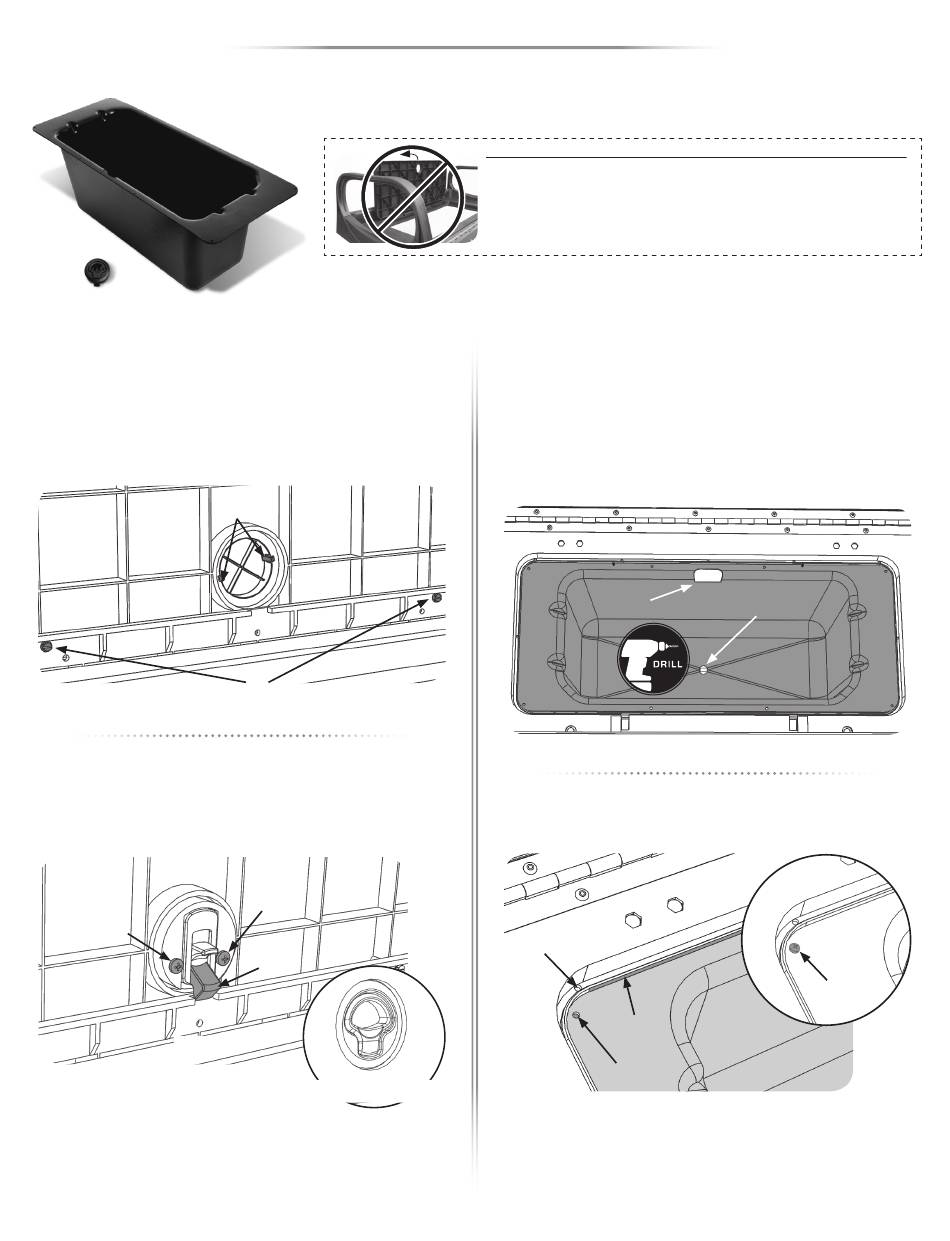

INSTALL LATCH HANDLE

Remove the two Lid Screws (FF) from under the Seat Base.
Squeeze the two small clips (GG) together to remove the Hole Cap.
NOTE: Fully tighten Hardware.
Pull the Handle up to draw in the catch (HH). Align the Bottom Latch
Cover and install with provided hardware (II).
NOTE: Fully tighten Hardware.
(II)
SEAT HINGE

STORAGE BIN

O P T I O N A L A C C E S S O R Y ( S o l d S e p a r a t e l y )
(GG)
(FF)
(II)
(HH)
TOP VIEW – SEAT HINGE
DO NOT PUSH OR FORCE THE LID PAST 90° BEFORE SEAT BASE & SEAT BACK CUSHION ARE INSTALLED ON THE CAR
• If you are installing a Storage Bin and decide to release the Storage Lid from the Seat Base before installing the
Seat Base and Seat Back Cushion onto the Car, do not try to open the Lid past 90°. Doing so may place too much
stress on the Lid Hinge possibly causing failure.
• Once the Seat Base and Seat Back Cushion are installed on the Car, the Seat Back Cushion acts as a stop for the
Lid protecting the Lid Hinge from hyper-extension.
• As a precaution, we recommend installing the Storage Lid Latch only after the Seat is fully installed on the Car.
2

INSTALL BIN

Insert the Bin into the opening, making sure the Notch is facing the Seat Hinge.
OPTIONAL: Using a 13/32" drill bit, add a Drain Hole in the bottom of the
Storage Bin before installation.
NOTE: The provided drain plug is designed to fit a 13/32" hole.
NOTCH
Make sure the Bin rests inside the Bin Ridge in the Seat Base. Install the
self-tapping Screws thru all holes in Bin into the Seat Base.
Drain Hole
Bin Ridge
SEAT BASE
Screw Hole
OPTIONAL DRAIN HOLE
(13/32" Drill Bit)
Screw
BIN
CAT-4: Max 5 Rear Seat Kit - 11
