1:1
REMOVE FACTORY CUP HOLDER INSERTS
Remove the plastic cup holder insert out of the dash, by
unhooking the plastic factory clips under the bottom of the
insert (A flat screw driver may be needed to pry it open).
1:2
DISCONNECT COMPONENTS
Reach into dash thru the opening and disconnect all wiring from
electronic components mounted to dash. Make sure to notate
which wires go with which components, if there is more than one
component (Ignition switch, Light switch, etc.).
1:3
REMOVE STEERING WHEEL
Remove the center cap/scorecard holder from center of steering
wheel. Remove lagre nut and pull steering wheel off of steering
column shaft.
1:4
REMOVE STEERING COLUMN SKIRT
Remove the steering column skirt by unhooking the factory clips
under the skirt. (A flat screw driver may be needed to pry it open.)
1:5
REMOVE FACTORY DASH
Remove the factory dash by removing:
- 4 plastic push-rivets located across the top of the dash
- 2 phillips head screws in the dash face
- 5 plastic push-rivets across the floor board under the dash
1:6
REMOVE ELECTRICAL COMPONENTS
Remove all electrical components from the factory dash. Set aside
to be installed in Sentry Dash.
CAT-25: Sentry Dash - Yamaha Drive / October 26, 2016 / Manufactured By Custom Golf Car Supply, Inc.
NOTE: Holes for electronic components should be
cut out prior to mounting the dashboard. These cut
out locations are at user's discretion.
IMPORTANT: Read through all instructions before beginning installation.

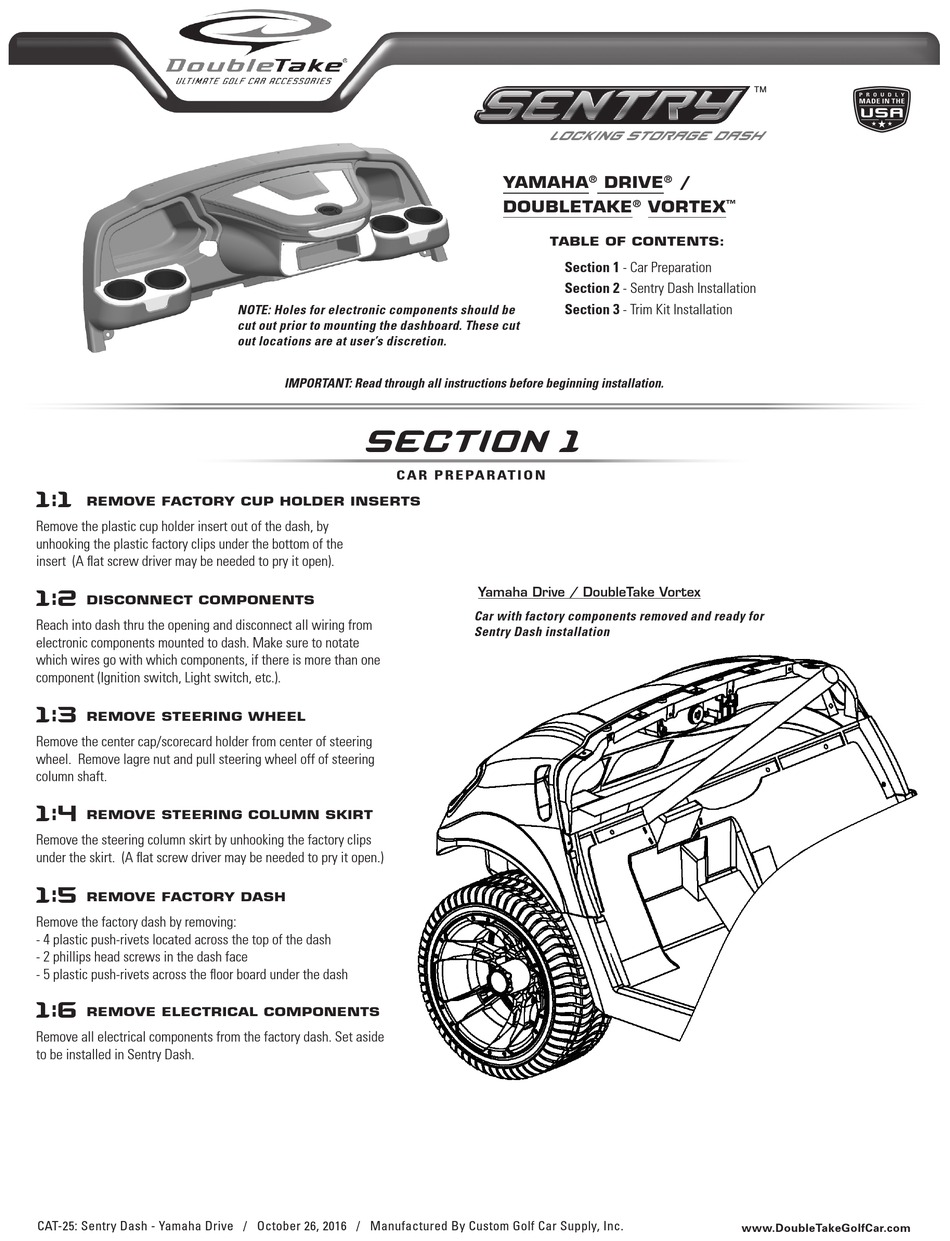

SECTION 1
C A R P R E PA R AT I O N

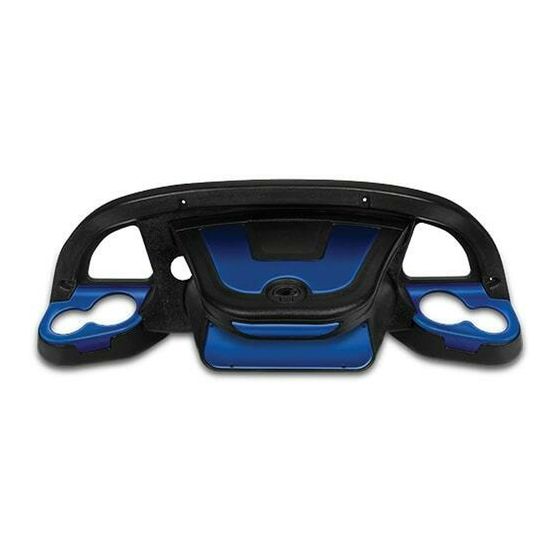

LOCKING STORAGE DASH
YAMAHA
DRIVE
®
DOUBLETAKE
VORTEX
®
TABLE OF CONTENTS:
Section 1 - Car Preparation
Section 2 - Sentry Dash Installation
Section 3 - Trim Kit Installation
Yamaha Drive / DoubleTake Vortex
Car with factory components removed and ready for
Sentry Dash installation
TM
/
®
™
www.DoubleTakeGolfCar.com
